- Page 1 Network Traffic Camera • User Manual High Performance Event Detection Server User Manual...
- Page 2 The Manual includes instructions for using and managing the Product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version of this Manual at the Hikvision website (http://www.hikvision.com).
- Page 3 High Performance Event Detection Server • User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 4 High Performance Event Detection Server • User Manual Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text. Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results.
- Page 5 High Performance Event Detection Server • User Manual To avoid heat accumulation, good ventilation is required for a proper operating environment. Store the device in dry, well-ventilated, corrosive-gas-free, no direct sunlight, and no heating source environment. Avoid fire, water, and explosive environment when using the device. ...
-
Page 6: Table Of Contents
High Performance Event Detection Server • User Manual TABLE OF CONTENTS Chapter 1 Introduction ........................6 Product Introduction ......................6 Key Feature.......................... 6 System Requirement......................6 Chapter 2 Getting Started ....................... 7 Start Up and Shut Down ...................... 7 Start Up ........................7 Shut Down ........................ -
Page 7: Chapter 1 Introduction

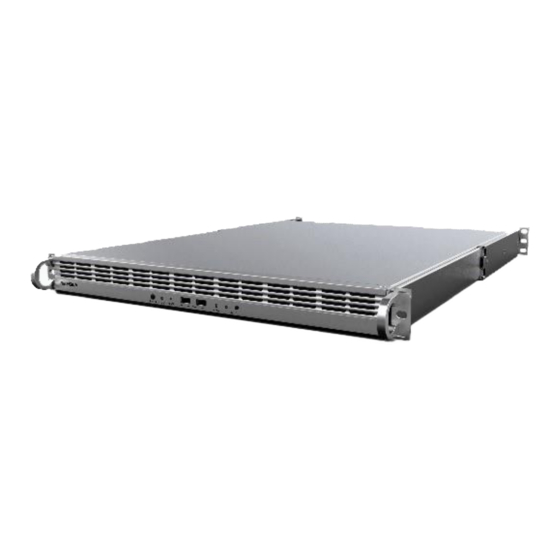

High Performance Event Detection Server • User Manual Chapter 1 Introduction Product Introduction Event detection server, the multiple-channel video analysis device, provides multiply features, including events smart detection and traffic parameters collection. It can capture for detected events, and recognize license plate. It is widely applied in real-time detection in cities, highways, and tunnels, etc. -
Page 8: Chapter 2 Getting Started
High Performance Event Detection Server • User Manual Chapter 2 Getting Started Start Up and Shut Down Purpose: Proper startup and shutdown procedures are crucial to expanding the life of the device. Start Up Before you start: Fix the device in an equipment cabinet. ... - Page 9 High Performance Event Detection Server • User Manual Set Admin Password STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
-
Page 10: Chapter 3 Configure Network
High Performance Event Detection Server • User Manual Chapter 3 Configure Network Purpose: Guarantee the network connection between your computer and the device is correct, thus you can control the device remotely. Configure Port The terminal device which is listened, should be set as listened mode. Go to System >... - Page 11 High Performance Event Detection Server • User Manual LAN Configuration 1) Enable DHCP. 2) Set NIC IP address, subnet mask, gateway, preferred DNS server, and alternate DNS server. 3) Click Save to save the settings. Go to Network > Local > Performance, to view CPU Usage Rate, Network IO and Temperature.
-
Page 12: Chapter 4 Event Detection Configuration
High Performance Event Detection Server • User Manual Chapter 4 Event Detection Configuration Live View Operations Go to live View, select the channel for live view. Configure Camera Confiugre Camera Parameter Purpose: Configure camera parameter to collect and capture pictures. Go to Channel Config >... -
Page 13: Configure Information And Text Overlay
High Performance Event Detection Server • User Manual Configure picture composition to set image collage layout. Go to Channel Config > Picture Composition. Select camera to configure. Set Compose as Enable. Select layout for 2 Captured Pictures, 3 Captured Pictures and 4 Captured Pictures. Click Save to save the settings. - Page 14 High Performance Event Detection Server • User Manual Scene Configuration Select camera according to actual demand. Select scene according to actual demand. Set focus by adjust the PTZ panel buttons. Illegal parking evidence is supported when accessing speed dome. Select scene name and direction according to actual demand. Click Save to save the settings.
- Page 15 High Performance Event Detection Server • User Manual Go to Channel Config > Scene Configuration > Scene > Illegal Parking Capture. (Optional) check Captured Without License Plate. Set Captured Number, Single Forensics Timeout and Matching Percentage. Click Picture Configuration, set Capture Interval and Capture Type. Click Save to save the settings.
- Page 16 High Performance Event Detection Server • User Manual Select lane number. Click left line and right line to draw lane lines in videos according to actual lanes. Click Configure Lane Information, and select lane type and lane direction. Click Save to save the settings. Configure Manual Evidence Capture Purpose: Configure manual evidence capture to detect evidence data.
-
Page 17: Configure Ftp
High Performance Event Detection Server • User Manual Scene cruise is supported when accessing speed dome. Configure FTP Purpose: Configure the FTP parameters, to upload data to FTP servers. Before you start: FTP server is constructed and well connected with network. Go to System >... -
Page 18: Chapter 5 Maintenance And Management
High Performance Event Detection Server • User Manual Chapter 5 Maintenance and Management User Management Purpose: You can add, edit, and delete users. Add a User Go to System > Sys Config > User Configuration. Click Add to enter the Add user interface. Add User Enter the User Name and Password, and confirm the password. -
Page 19: Edit A User
High Performance Event Detection Server • User Manual Edit a User You need the admin password to edit the admin user. Select a user account. Click the user name to enter the setting interface. Modify the User Name, and Password. STRONG PASSWORD RECOMMENDED–... -
Page 20: View Version
High Performance Event Detection Server • User Manual View Version Go to System > Version, and you can view device versions and plug-in information. Time Synchronization When the server time is inaccurate, you can configure the time synchronization according to connected platform. -
Page 21: Upgrade
High Performance Event Detection Server • User Manual Please insert a memory card with in the camera for Log storage. Log cannot be searched if there is no memory card. Go to System > Log. Select log type. Set the Start Time, and End Time. Click Search. - Page 22 UD16953B...
