Installation Tips
Before you begin installing your new Windjammer,
please read all the instructions thoroughly.
WARNING
Do not rely in any way on the components of this
product to protect against injury or death in the event of an accident.
Never operate the vehicle in excess of manufacturer's specifications.
Read and follow, precisely, all installation instructions provided when
installing this product. Failure to do so may result in a poor fit and could
place occupants of the vehicle in a potentially dangerous situation.
WEAR SEAT BELTS AT ALL TIMES
Safety glasses should be worn at all
times when installing this product.
Safety
Glasses
P1 - 80053 Rev. B 1219
Installation Instructions

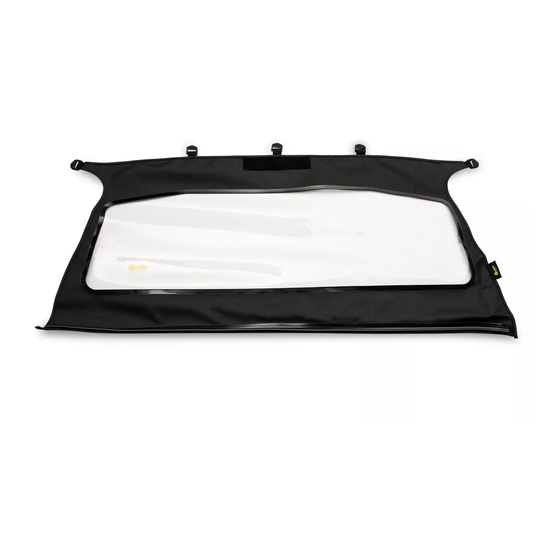

Windjammer
Tools
Phillips Screwdriver
T40 Torx Wrench
(included in your
Jeep tool kit)
T25 - Torx Driver
Installation Instructions - Windjammer
Jeep® JL Wrangler Unlimited 2018-Current
Part Number 80053 (Requires #52603-01)
Installation Time
30 minutes
Skill Level
1 - Easy
Vehicle Application:
Support
We're here to help! Go to:
https://www.bestop.com
and click on Need Help?
https://www.bestop.com/video-library
© 2019 Bestop, Inc.
Advertisement
Related Manuals for Bestop 80053
Summary of Contents for Bestop 80053
- Page 1 Need Help? Phillips Screwdriver T40 Torx Wrench Safety (included in your Skill Level Glasses Jeep tool kit) T25 - Torx Driver 1 - Easy https://www.bestop.com/video-library Installation Instructions - Windjammer P1 - 80053 Rev. B 1219 © 2019 Bestop, Inc.
- Page 2 Supertop NX Twill Part Number 54823 Part Number 80053 (Requires #52603-01) Installation Instructions - Windjammer P2 - 80053 Rev. B 1219 © 2019 Bestop, Inc. P1B - 54823 Rev. G 0416 Installation Instructions - Supertop NX Twill © 2016 Bestop, Inc.
-
Page 3: Installation Instructions
Snap Stud Spacer 7” Snap Straps #8 x 5/8” #8 x 1” Part #235.91 Qty. 5 Part #728221 Part #592.71 Qty. 3 Qty. 2 Qty. 3 Installation Instructions - Windjammer P3 - 80053 Rev. B 1219 © 2019 Bestop, Inc. - Page 4 (3) #8x1” Snap Stud Screws #592.71 locations shown. and three (3) Snap Stud Spacers #325.91 in the upper front locations, and two (2) #8x5/8”Snap Stud Screws in the under- side locations. Installation Instructions - Windjammer P4 - 80053 Rev. B 1219 © 2019 Bestop, Inc.
- Page 5 Sport Bar. Sport Bar. Lower Straps should be attached so that they can be wrapped around the outside and top of each Sport Bar downtube. Installation Instructions - Windjammer P5 - 80053 Rev. B 1219 © 2019 Bestop, Inc.
- Page 6 Required Parts, available separately in the Bestop #52603-01 Parts Kit. Use this slot Step 1 Slide the Extruded Aluminum Bow, Bestop Part #52603 (Available separately with Bestop Parts Kit #52603-01)) over the “P-Extrusion” along the bottom edge of the Windjammer.
- Page 7 The internal ribs inside the round opening of each end cap will slide into the slots on the top and bottom of the aluminum extrusion. Installation Instructions - Windjammer P7 - 80053 Rev. B 1219 © 2019 Bestop, Inc.
- Page 8 Torx Driver that comes in your Jeep’s tool kit to remove the Door Surround fasteners. You can now snug all the attachment straps and replace the Door Rail and fasteners. Installation Instructions - Windjammer P8 - 80053 Rev. B 1219 © 2019 Bestop, Inc.
-
Page 9: Warranty Information
WHAT BESTOP WARRANTS Subject to the terms and conditions of sale, including any terms and conditions set forth by Bestop, Inc. (“Bestop” or “us” or “we”) in our then-current terms of sale on our website (collectively, the “Terms”), Bestop represents and warrants that: the covered products listed in the “Covered Products and Warranty Periods”... - Page 10 Jeep® JL Wrangler Unlimited 2018-Current Windjammer Part Number 80053 (Requires #52603-01) COVERED PRODUCTS AND WARRANTY PERIODS: The warranty time periods are as follows for Products manufactured by Bestop: BESTOP® LIMITED LIFETIME WARRANTY Trektop® Pro Twill Fabric Top Sunrider® for Hardtop Twill Fabric Top Trektop®...
