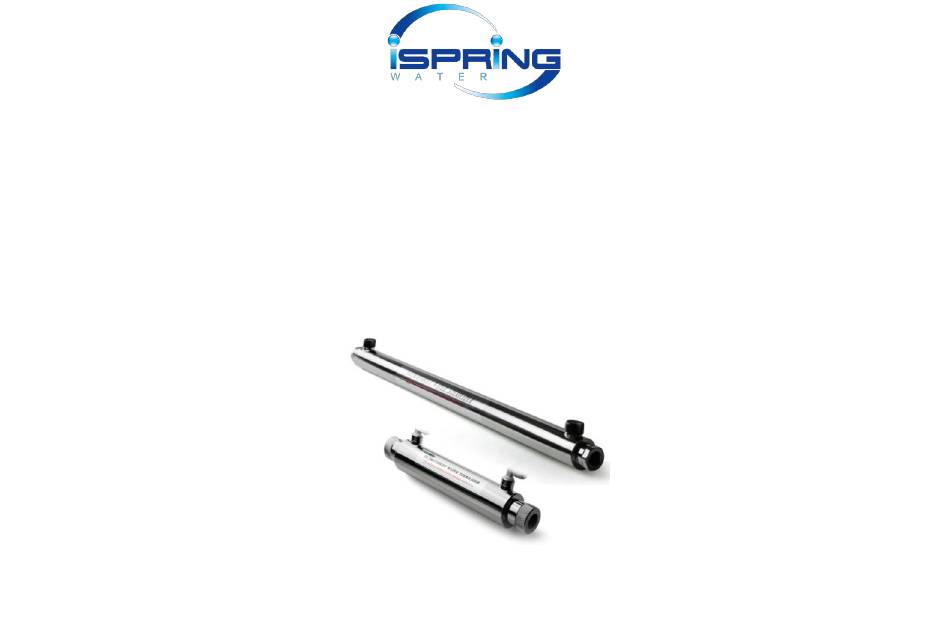

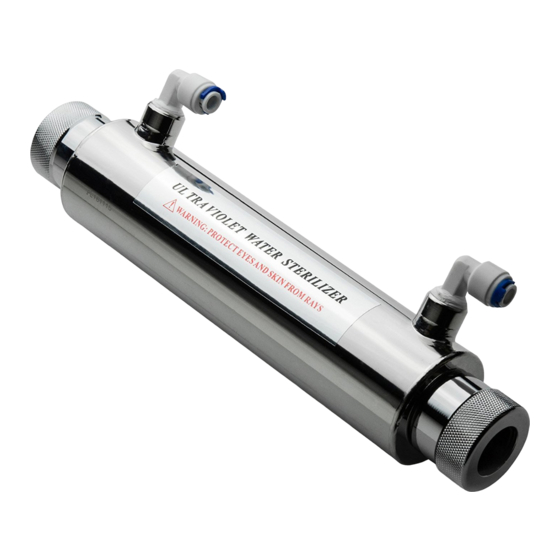

- Page 1 Ultraviolet Disinfection Sterilizer Water Filter Installation and Maintenance Manual Model UVF11A/UVF11B/UVF11B-E/UVF55 Please read the User's Manual Carefully and keep it available...
-
Page 2: Table Of Contents
Table of Content Product Overview------------------------------------------------------------------------------------------------------------------------------------------2 Components in the Package -------------------------------------------------------------------------------------------------------------------------------3 Precautions ------------------------------------------------------------------------------------------------------------------------------------------------3 Specs and Conditions ------------------------------------------------------------------------------------------------------------------------------------4 Installation - Model#UVF11A/UVF11B/UVF11B-E -------------------------------------------------------------------------------------- -------5 Installation - Model#UVF55 ---------------------------------------------------------------------------------------------------------------------------8 Maintenance--------------------------------------------------------------------------------------------------------------------------------------- -----11 Trouble Shooting------------------------------------------------------------------------------------------------------------------------------------- -----12 Warranty------------------------------------------------------------------------------------------------------------------------------------------- -----12 Warranty Registration------------------------------------------------------------------------------------------------------------------------------------14 Contact Us-----------------------------------------------------------------------------------------------------------------------------------------------15 - 1 -... -
Page 3: Product Overview
Product Overview Structure Diagram of Ultraviolet Water sterilizer Quartz Sleeve - 2 -... -
Page 4: Components In The Package
UVF11A/UVF11B/UVF11B-E UVF55 • • Sterilizer Cylinder body Sterilizer Cylinder body • • Philips UV lamp, Model#UVB11 Philips UV lamp, Model#UVB55 • • Lamp wire connector Lamp wire connector • • Ballast with Plug and flow sensor Ballast with Plug •... -
Page 5: Specs And Conditions
Specs and Conditions Operating Parameters Maximum Operating Pressure 85psi Minimum Operating Pressure 4psi Maximum Ambient Air Temperature 100°F Minimum Ambient Air Temperature 32°F Maximum Humidity 100% Maximum Hardness 120ppm Maximum Iron 0.3ppm Minimum UVT Installation Vertical or horizontal Rated Flow UVF11 –... -
Page 6: Installation - Model#Uvf11A/Uvf11B/Uvf11B
Installation Model# UVF11A/UVF11B/UVF11B-E Sediments and particles in the water block UV light and serve as shelters for germs. Thus, water coming into the UV sanitizer must be clear (free of particles larger than 20 microns). It is recommended that you install the UV sanitizer after the filters as the last stage. - Page 7 7) UVF11A has 2 ports. Either one can be IN or OUT as long as water flow matches the arrow sign on the Smart Flow Sensor. The flow sensor needs to be installed before the inlet. See the water flow direction shown by arrows in the following picture.
- Page 8 8) Connect the UV transformer to an electrical outlet. 9) Turn on water supply and faucet. Observe the system for any leaks and check if water flow activates the UV light. --------------------------------------End of installation of Model UVF11A/UVF11B/UVF11B-E--------------------------------------------- - 7 -...
-
Page 9: Installation - Model#Uvf55
Installation Model# UVF55 Before Installation The unit comes with two ports. Both are 1-inch MNPT and can be used as an inlet or outlet. Please choose the correct fittings to fit your plumbing. For easy maintenance, it is recommended that you install an inlet valve and an outlet valve before and after the unit. - Page 10 Step 2 - Plug both ends of the lamp into the power sockets with the green wires. 1) Plug one end of the lamp into the 2) Plug the other end of the green 3) Plug the other end of the lamp small power socket with the green wires into the big power socket of into the same big power socket of...
- Page 11 Step 4 - Connect the inlet/outlet to the designated water pipes and fill with water to test for leaks. Visually check every connection and inspect for leaks. Connect to the water pipe Step 5 - If there are no leaks, insert the plug and turn the power on; the green light will turn on to indicate it is working properly.
-
Page 12: Maintenance
Maintenance For your safety, ALWAYS wear goggles and turn the power OFF before REPLACING the UV lamp or CLEANING the quartz sleeve! Servicing the unit with power on will also cause damage to the ballast. Never service the UV lamp or quartz sleeve without wearing protective eyewear! - Over time, minerals in the water slowly form a coating on the quartz sleeve. -
Page 13: Troubleshooting
Troubleshooting Symptom Solution The O-ring inside the quartz sleeve might be damaged. Leaking from the UV sterilizer steel pipe nuts Please contact us for assistance Leaking from the quartz sleeve Replace the quartz sleeve Wrap Teflon tape on the threads and reconnect the water Leaking at the inlet/outlet pipe Ballast alarm goes off;... - Page 14 1. The system is to be used with potable water supply only. 2. Feed water pressure to the unit is no less than 4 PSI and no greater than 85 PSI. 3. The system is to be used on water supplies with chlorine concentrations of 1.0 mg/L (ppm) or less. 4.
-
Page 15: Warranty Registration
unit will invalidate this Warranty. Should your unit develop a defect or otherwise fail to perform in accordance with this warranty, you should contact the retailer from whom the product was originally purchased. Implied Warranties: The implied at-law warranties of merchantability and fitness for a particular purpose shall terminate on the date one year after the date of purchase. -
Page 16: Contact
How To Contact Us Office Hours: Monday-Friday 9:00 a.m. - 5:00 p.m. EST Phone: (678) 261-7611 Email: support@ispringfilter.com iSpring Water Systems, LLC 3020 Trotters Parkway Alpharetta, GA 30004, Georgia, USA...
