Intellitec TOUCHLITE Installation Instructions page 2

1. Locate a convenient spot near the door, on the outside of your coach, for the TouchLite Button plate.
(See Fig.1)
Somewhere that is within easy reach when you stand on the ground. Make sure there is
enough room on the inside of your coach at the same location for the control box
Drill a 3/8" hole through the wall where the touch plate will be centered. You will need to get wires from the
control box for the existing light switch and ground
2. Spread a layer of silicone sealer on the back of the TouchLite Button plate. Be careful not to get any
sealer in the peg. The TouchLite Button has an 8" pigtail assembly attached. Push the faston end of
the pigtail assembly into the hole on the front of the TouchLite.
3. Mount the control box on the inside wall and fasten the box in place with the two screws
4. Connect the BLACK wire to GROUND. The BROWN and GRAY wires can be connected to the existing
porch light switch, BROWN to +12 volts and GRAY to the PORCH LIGHT
5. The porch light should come on immediately when the TouchLite panel is touched and remain "ON" for 20 to
40 seconds afterwards.
NOTE:
The TouchLite is rated for 12 VDC operation up to 1.5 Amps. It will operate up to an 18 Watt lamp.
Touchlite
Button
Crimp or
Bushing
Solder

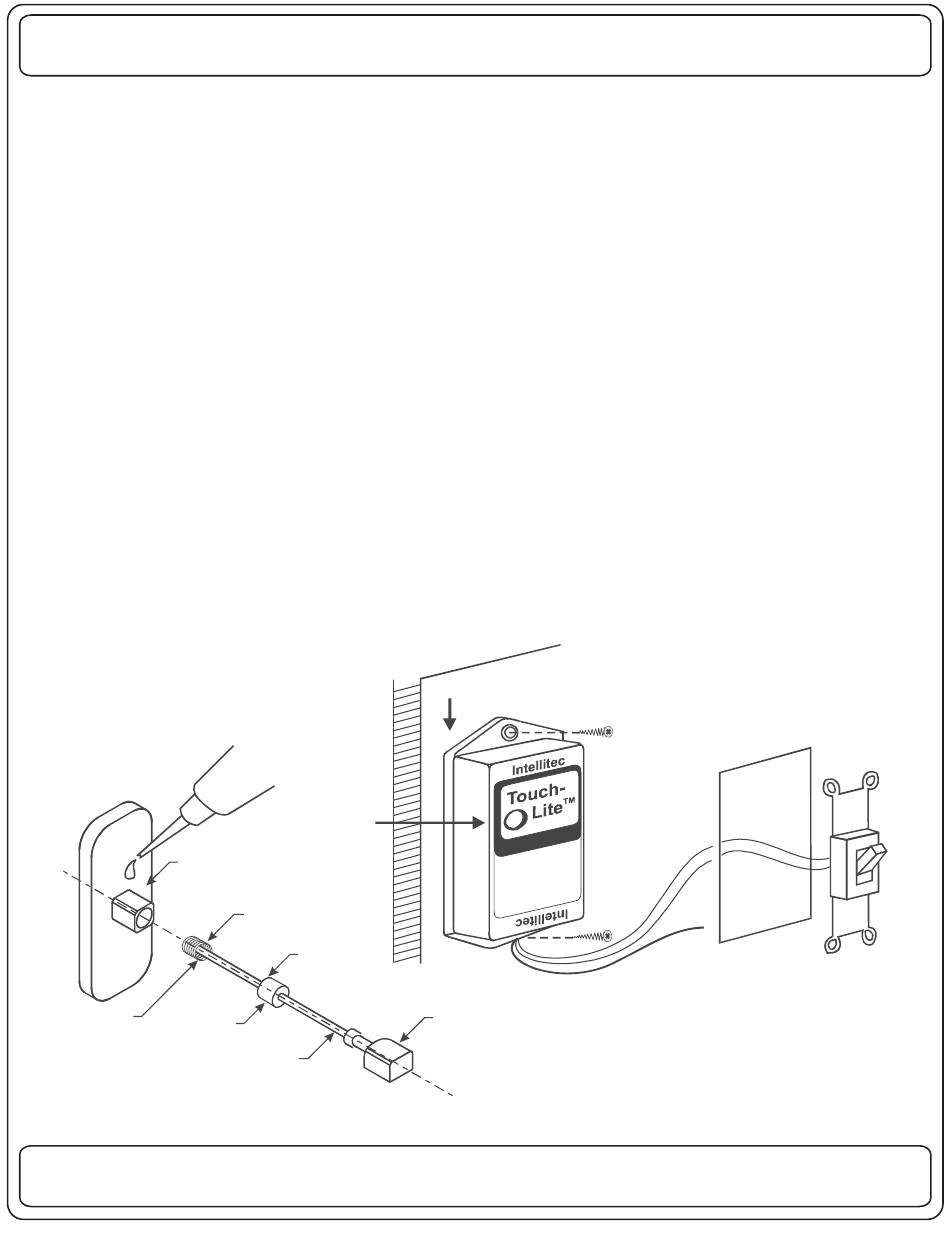

Figure 1
Intellitec
www.intellitec.com
TOUCHLITE
INSTALLATION INSTRUCTIONS
Figure 2
Plug Faston end
of Pigtail here
Spring
This End has
Smaller "O"
8" Pigtail
20GA WHT
W/8" WIRE
(See Fig.3)
.
.25 Faston
(See Fig. 2)
.
(See Fig. 2).
(See Fig. 3)
.
Figure 3
1485 Jacobs Rd.
Deland, FL 32724
386.738.7307
P/N 53-00098-100 Rev. B 032119
