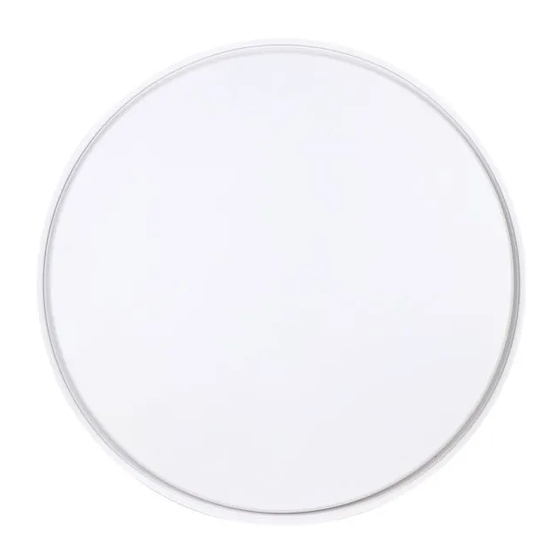

Exhaust fan

Advertisement

Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before assembly, installation and use of this product. Please keep instructions for future reference.

Warranty

This exhaust fan is covered by a 2 year warranty. The warranty is from date of purchase, not the date of installation.
Please retain proof of purchase for any warranty enquires.
Warranty will be void if there is any damage due to improper usage or modification to the fan.
Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void warranty.

Installation Requirements

A licensed electrician is required to install this unit to the mains supply.
Before installation, check the installation location in the ceiling has access to a socket outlet which is connected to
a wall switch. If it does not, please contact a licensed electrician to arrange installation of the socket outlet and wall
switch before continuing.
All wiring and installation of the exhaust fan must adhere to the local council regulation and latest local and national
wiring rules, eg. AS/NZS 3000 electrical installations. If unsure, contact a licensed electrician.
This is a Class I product and must be earthed.
This product is suitable for indoor use only.
This product must be installed at least 2.1 m above the floor level.
Before cutting a hole in the ceiling, check that there are no ceiling joists, etc. or electrical wiring above the desired
mounting location.
The mounting point must be support at least 2 times of the weight of the product.
Ensure all the clearance values to the structural building element are maintained according to the clearance diagram
in Figure 5.
Do not install the exhaust fan in canopies over stoves etc., as excessive heat will damage the product.
This product is designed for installation in the flat ceiling only. Do not mount it on a sloping ceiling or a vertical wall.
Any duct (not included) attached to the product must be installed horizontally in the ceiling and with the same height
or lower than the exhaust fan.
Ensure the duct (not included) is not bent otherwise the performance will be reduced.
Where applicable, precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
Do not allow any thermal insulation to cover any part of the rear of the appliance.
Ensure the thermal insulation does not obstruct the airflow.
There must be an adequate source of external air to ensure the rated performance.

Installation Directions

1. Remove all packaging material from the product and be careful not to throw away accessories that may be hidden
within the packaging material.
NOTE: Take care not to pull any electrical wires during unpacking as this may damage the connection.
2. Check whether the product has been damaged during transport. Do not operate/install any product which appears
damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.
NOTE: Before installation, plug the exhaust fan into a socket outlet to ensure the product is working
correctly. Switch off the main power before commencing the below installation.
3. Cut an installation hole into the ceiling according to cut-out size specified in the specification section. (Fig.1)
1 | P a g e
REEF EXHAUST FAN
SKU# 209030, 209031
Rated Voltage 220-240V~ 50Hz
v 1 . 0 ( 0 9 / 2 0 1 9 )
