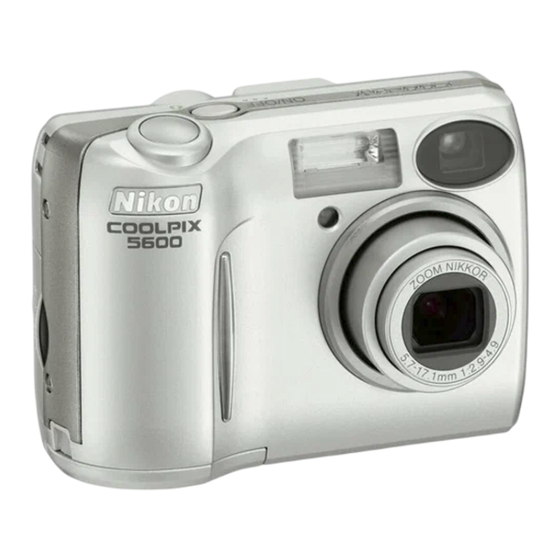

Nikon Coolpix 5600 Repair Manual

Hide thumbs Also See for Coolpix 5600:
Table of Contents

Advertisement

Quick Links

Download this manual
VAA31001-R.3651.A
作成承認印 配布許可印
VAA31001
REPAIR MANUAL
Copyright ｃ 2005 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず !!
Printed in Japan February 2005

Advertisement

Table of Contents
loading

Related Manuals for Nikon Coolpix 5600

Summary of Contents for Nikon Coolpix 5600

  • Page 1 VAA31001-R.3651.A 作成承認印 配布許可印 VAA31001 REPAIR MANUAL Copyright ｃ 2005 by Nikon Corporation. All Rights Reserved. 無断転載を禁ず !! Printed in Japan February 2005...
  • Page 2 VAA31001-R.3651.A CONTENTS SPECIFICATIONS ･････････････････････････････････････････････････････････････････････････ Ｍ１－Ｍ２ Disassembly WARNING ･･････････････････････････････････････････････････････････････････････････････････ Ｄ１ REAR COVER･･･････････････････････････････････････････････････････････････････････････････ Ｄ２ DISASSEMBLY OF REAR COVER ･････････････････････････････････････････････････････････････ Ｄ３ Discharging of main condenser ･･････････････････････････････････････････････････････････････････ Ｄ４ FRONT COVER ･････････････････････････････････････････････････････････････････････････････ Ｄ５ DISASSEMBLY OF FRONT COVER ･･････････････････････････････････････････････････････ Ｄ６ーＤ７ TRIPOD SOCKET････････････････････････････････････････････････････････････････････････････ Ｄ８ LCD ･･･････････････････････････････････････････････････････････････････････････････････････ Ｄ８ SPEAKER HOLDER･･････････････････････････････････････････････････････････････････････････...
  • Page 3 VAA31001-R.3651.A 2ND LENS GROUP UNIT ･････････････････････････････････････････････････････････････････････ Ａ３ ASSEMBLY OF FIXED BARREL ･･･････････････････････････････････････････････････････････････ Ａ３ FIXED BARREL ･････････････････････････････････････････････････････････････････････････････ Ａ４ CCD FRAME････････････････････････････････････････････････････････････････････････････････ Ａ５ ASSEMBLY OF ZOOM MOTOR UNIT ･･････････････････････････････････････････････････････････ Ａ６ ZOOM MOTOR UNIT ････････････････････････････････････････････････････････････････････････ Ａ７ FFD Inspection and adjustment (*FFD:Flange Focal Distance) ･････････････････････････････････････････ Ａ８ 　Preparation ････････････････････････････････････････････････････････････････････････････････...
  • Page 4 VAA31001-R.3651.A TB1 CIRCUIT DIAGRAM ･･･････････････････････････････････････････････････････････････････ Ｅ１６ TB2 CIRCUIT DIAGRAM ･･･････････････････････････････････････････････････････････････････ Ｅ１７ OVERALL BLOCK DIAGRAM･･･････････････････････････････････････････････････････････････ Ｅ１８ CCD BLOCK DIAGRAM ････････････････････････････････････････････････････････････････････ Ｅ１９ LENS BLOCK DIAGRAM ･･･････････････････････････････････････････････････････････････････ Ｅ２０ ASIC BLOCK DIAGRAM ･･･････････････････････････････････････････････････････････････････ Ｅ２１ SYSTEM CONTROL BLOCK DIAGRAM ･･････････････････････････････････････････････････････ Ｅ２２ POWER BLOCK DIAGRAM ･････････････････････････････････････････････････････････････････ Ｅ２３ FUSE arrangement (CP1 PCB) ････････････････････････････････････････････････････････････････...

  • Page 5: Specifications

    VAA31001-R.3651.A SPECIFICATIONS Type E5600 digital camera Effective pixels 5.1 million 1/2.5” high-density CCD; total pixels: 5.36 million Image size (pixels) 2,592 × 1,944 (2592) 2,048 × 1,536 (2048) 1,024 × 768 (1024) 640 × 480 (640) Lens 3 × Zoom Nikkor Focal length F=5.7 - 17.1 mm (35-mm [135] camera-format equivalent: 35 - 105 mm)
  • Page 6 Video output Can be selected from NTSC and PAL I/O terminals A/V out/digital I/O Power sources ・Two rechargeable Nikon EN-MH1 NiMH batteries ・Two LR6 (AA) alkaline batteries ・Two ZR6 (AA) nickel manganese batteries ・Two FR6/L91 (AA) lithium batteries ・EH-62B AC adapter Number of frames taken in ・220 frames (alkaline batteries)
  • Page 7 VAA31001-R.3651.A Disassembly Points to notice for Lead-free solder products ・ Lead-free solder is used for this product. ・ For soldering work, the special solder and soldering iron are required. ・ Do NOT mix up lead-free solder with traditional solder. ・ Use the special soldering iron respectively for lead-free solder and lead solder. They cannot be used in common.

  • Page 8: Rear Cover

    VAA31001-R.3651.A REAR COVER ・ Remove the four screws [#102]. ・ Remove the two screws [#103]. ・ Open the USB cover [#033]. Screw [#102] Screw [#103] USB cover [#033] Screw [#102] ・ As pushing the top side of the rear cover unit [#030] ・...

  • Page 9: Disassembly Of Rear Cover

    VAA31001-R.3651.A DISASSEMBLY OF REAR COVER ・ Remove the screw [#104]. ・ Remove the earth shaft [#029]. ・ Remove the cover shaft [#009]. ・ Remove the SD cover [#037]. Cover shaft [#009] SD cover [#037] Earth shaft [#029] Screw [#104] - D3･ E5600 -...
  • Page 10 VAA31001-R.3651.A Discharging of main condenser 2KΩ/5W - D4･ E5600 -...

  • Page 11: Front Cover

    VAA31001-R.3651.A FRONT COVER ・ Remove the solder at 2 places. ・ Remove the FPC. ・ Remove the two screws [#102]. ・ The earth release [#026] can be removed. Screw [#102] Solder Earth release [#026] ・ Remove the front cover [#013]. Front cover [#013] - D5･...
  • Page 12 VAA31001-R.3651.A DISASSEMBLY OF FRONT COVER ・ Remove the decoration top [#021]. Decoration top [#021] ・ Remove the two screws [#104]. ・ Unhook the battery holder [#024]. Battery holder [#024] Hook Screw [#104] - D6･ E5600 -...
  • Page 13 VAA31001-R.3651.A ・ Remove the DC cover spring [#012]. ・ Pull out the DC cover [#011]. DC cover [#011] DC cover spring [#012] ・ Take off the spacer [#019] from the release button ・ Remove the screw [#104]. unit. ・ Remove the release button unit [#020]. ※...

  • Page 14: Tripod Socket

    VAA31001-R.3651.A Hook TRIPOD SOCKET ・ Perform unhooking and remove the tripod socket [#201]. Tripod socket [#201] LCD[#239] ・ Lift up the LCD [#239] and unsolder the lead wires [red] and [white]. ※ The LCD [#239] is adhered with the double-adhesive tape. LCD[#239] ・...

  • Page 15: Monitor Holder

    VAA31001-R.3651.A MICROPHONE ・ Unsolder the lead wires [black] and [red]. ・ Take off the spacer [#025]. ・ Take off the spacer [#223]. ・ Remove the microphone [#222]. Microphone [#222] MONITOR HOLDER ・ Remove the two screws [#102]. ・ Remove the earth release [#228]. ・...
  • Page 16 VAA31001-R.3651.A SB UNIT ・ Remove the spacer [#039]. ・ Unsolder the lead wires [gray] and [white]. Spacer [#039] Lead wires [gray] and [white] ・ Unsolder the lead wire [black]. ・ Unsolder the lead wire [pink]. Lead wire [pink] Lead wire [black] ・...

  • Page 17: Wire Holder

    VAA31001-R.3651.A Screw [#102] WIRE HOLDER ・ Remove the screw [#102]. ・ Remove the wire holder [#215]. Wire holder [#215] TB-1 PCB ・ Perform unhooking and remove the TB-1 PCB [#216]. Hook TB-1 PCB [#216] Wire holder [#215] CONDENSER HOLDER ・ Remove the connector. ・...
  • Page 18 VAA31001-R.3651.A LENS UNIT ・ Remove the FPC. ・ Take off the spacer [#225]. Spacer [#225] ・ Remove the two screws [#106]. ・ The lens unit can be removed. ・ The spacer LPF [#209], the optical filter [#210] and the spacer [#211] can be removed. ・...
  • Page 19 VAA31001-R.3651.A Points to notice when disassembling / (re)assembling Lens unit When the following parts are replaced for repairing the lens unit singularly, the lens unit checking tool is required for the FFD inspection and adjustment. Therefore, at service facilities where there is no tool, do NOT make a replacement ・1st lens group unit ・2nd lens group unit ・3rd lens group unit...

  • Page 20: Finder Unit

    VAA31001-R.3651.A FINDER UNIT ・ Remove the three screws [#429]. ・ Remove the finder unit [#405]. [#405] Screw [#429] ZOOM MOTOR UNIT ・ Remove the solder of the motor at 2 places. ・ Remove the screw [#430]. ・ Remove the solder of the FPC at 4 places. ・...
  • Page 21 VAA31001-R.3651.A DISASSEMBLY OF ZOOM MOTOR UNIT ・ Pull out the gear shaft D [#419]. ・ Remove the screw [#429] and then remove the gear ・ Remove the zoom gear E [#411]. cover [#403]. Screw [#429] Gear shaft D [#419] Gear cover [#403] Zoom gear E [#411] ・...
  • Page 22 VAA31001-R.3651.A CCD FRAME ・ Remove the solder. ・ Remove the four screws [#431]. ・ Remove the screw [#430]. Screw [#431] Screw [#431] ・ Remove the lens barrel unit. ・ The finder gear B [#417] can be removed. - D16 ･ E5600 -...

  • Page 23: Barrier Unit

    VAA31001-R.3651.A BARRIER UNIT ・ Take off the name plate seal [#415]. ・ Remove the barrier unit [#407] by turning counterclockwise. Name plate seal [#415] ※ Insert tweezers into the clearance and turn the barrier unit counterclockwise. It will be removed easily.
  • Page 24 VAA31001-R.3651.A FIXED BARREL ・ Take off the FPC sheet [#423]. ・ Push out the turn barrel [#401]. As taking out the shutter FPC, remove the turn barrel [#402]. Turn barrel [#402] Push out. FPC sheet [#423] Shutter FPC Turn barrel [#401] DISASSEMBLY OF FIXED BARREL ・...
  • Page 25 VAA31001-R.3651.A 2ND LENS GROUP UNIT ・ Turn the key barrel unit [#428] in the W-end direction to the limit. 2nd lens group unit [#426] ・ The 2nd lens group unit [#426] floats a little and can be removed. Key barrel unit [#428] SHUTTER ・...
  • Page 26 VAA31001-R.3651.A KEY BARREL・TURN BARREL ・ Pull out the key barrel unit [#428] from the turn barrel [#401]. Key barrel unit [#428] Shading ring [#424] Turn barrel [#401] 1ST LENS GROUP UNIT ・ Turn the 1st lens group unit [#425] counterclockwise. ・...
  • Page 27 VAA31001-R.3651.A ASSEMBLY 1ST LENS GROUP UNIT ・ Set the 1st lens group unit [#425] into the straight ・ Apply the adhesive (1401B) to 3 places. barrel unit [#427]. Turn the 1st lens group unit [#425] counterclockwise to be level and turn it clockwise to be installed correctly.
  • Page 28 VAA31001-R.3651.A STRAIGHT BARREL ・ Set the lever of the key barrel unit [#428] at the front side. Set the long hole of the straight barrel unit [#427] at the left side. Fit the convex sections to the grooves and then set the straight barrel unit [#427] into the key barrel unit [#428]. Long hole Straight barrel unit [#427] Convex section...
  • Page 29 VAA31001-R.3651.A 2ND LENS GROUP UNIT ・ Set the lever of the key barrel unit [#428] at the front side. Set the notch of the 2nd lens group unit [#426] at the left side. Fit the convex sections to the grooves and set the 2nd lens group unit [#426] into the key barrel unit [#428]. Convex section Notch 2nd lens group unit [#426]...
  • Page 30 VAA31001-R.3651.A FIXED BARREL ・ Insert the shutter FPC into the hole on the side of the ・ Adhere the FPC sheet [#423]. fixed barrel [#402]. ・ Fit the convex sections on the turn barrel [#401] to the grooves on the fixed barrel [#402]. Set the turn barrel [#401] into the fixed barrel [#402].
  • Page 31 VAA31001-R.3651.A CCD FRAME ・ Set the finder gear B [#417] into the lens barrel unit. Then, install the lens barrel unit. Lens barrel unit Finder gear B [#417] ・ Tighten the four screws [#431]. ・ Insert the FPC of the CCD frame into the boss. ・...
  • Page 32 VAA31001-R.3651.A ASSEMBLY OF ZOOM MOTOR UNIT ・ Set the zoom gear C [#409] and the zoom gear D ・ Set the gear cover [#403] and tighten the screw [#410]. [#429]. Screw [#429] Zoom gear D [#410] Zoom gear C [#409] Gear cover [#403] ・...
  • Page 33 VAA31001-R.3651.A ZOOM MOTOR UNIT ・ Fit the zoom motor unit to the bosses on the CCD ・ Tighten the screw [#429]. frame and set it. ・ Tighten the screw [#431]. Screw [#431] Zoom motor unit Screw [#429] ・ Fold the FPC of the zoom PI as shown below and insert the zoom PI. ・...
  • Page 34 VAA31001-R.3651.A FFD Inspection and adjustment (*FFD:Flange Focal Distance) Preparation ・ Turn the objective glass of the collimator (J19019), and set degree to 0 (0 mm). ・ Set the 0-position of “ Adjusting focus stand for APS (J15327)” as follows: 1. Replace the white acrylic plate of the above stand(J15327)with the new one(J15327A) 2.
  • Page 35 VAA31001-R.3651.A ・As shown below, mount the lens-barrel unit on the Adjusting focus stand. Lens-barrel unit Adjusting focus stand for APS (J15327) J15327A J15327D ・ After mounting the lens-barrel unit on the Adjusting focus stand, connect wires (J61202F) of the lens unit inspection tool.
  • Page 36 VAA31001-R.3651.A ・Hold the lens-barrel unit lightly with a hand, and run the program for inspecting the lens unit. Note: If the lens-barrel unit is held too tightly, the FFD value cannot be measured correctly. Note: Refer to supplied user manuals of the lens unit checking tool for how to run the program for inspecting the lens unit.
  • Page 37 VAA31001-R.3651.A BARRIER UNIT ・ Insert the convex section A on the barrier ring [#404] ・ Set the barrier ring spring [#420]. into the clockwise side of the convex section B in the lens barrel. Then, set the barrier ring [#404] and turn it counterclockwise.
  • Page 38 VAA31001-R.3651.A ・ Adhere the name plate seal [#415]. Name plate seal [#415] Operation inspection ・ It is possible to check the operation with the lens-barrel driving software at the service facilities equipped with the lens unit checking tool. FINDER UNIT ・...
  • Page 39 VAA31001-R.3651.A Resolution inspection When dissembling and repairing the lens-barrel, be sure to check the following after assembling it into the camera body. ・Resolution inspection By shooting the high-definition resolution chart (J63079), confirm that the number of TV lines is within the standard.
  • Page 40 VAA31001-R.3651.A LENS UNIT ・ Set the spacer LPF [#209] and the optical filter [#210] into the lens unit. ・ As taking care about its direction, set the spacer [#211] into the lens unit. ・ Set the spacer insulator [#214], the lens mount [#213] and the CCD [#212] and solder them to the main PCB CP-1 [#218].
  • Page 41 VAA31001-R.3651.A CONDENSER HOLDER ・ Set the condenser holder [#204] and tighten the ・ Adhere the spacer [#224]. screw [#102]. Spacer [#224] Screw [#102] Condenser holder [#204] Spacer [#224] ・ Set the connector without crossing the cords above the connector and the PCB. Connector TB-1 PCB ・...
  • Page 42 VAA31001-R.3651.A Screw [#102] WIRE HOLDER ・ Set the wire holder [#215] and tighten the screw [#102]. Wire holder [#215] SB UNIT ・ Arrange the lead wires [pink] and [blue] as shown below. ・ As arranging the lead wire [blue] as shown below (Fig. 1), set the flash unit [#219] and tighten the screw [#104]. (Fig. 2) Flash unit [#219] Lead wire [blue] Screw [#104]...
  • Page 43 VAA31001-R.3651.A ・ Arrange the lead wire [pink] as shown below. ・ Solder the lead wire [pink]. Lead wire [pink] Lead wire [pink] ・ Solder the lead wire [black]. ・ Solder the lead wires [gray] and [white]. Lead wires [gray] and [white] Lead wire [black] ・...
  • Page 44 VAA31001-R.3651.A ・ Adhere the spacer [#039]. Spacer [#039] MONITOR HOLDER ・ Fit the LCD holder [#231] to the bosses, set it and tighten the three screws [#104]. ・ Set the earth release [#228]. ・ Tighten the two screws [#102]. Screw [#102] Earth release [#228] Boss crew [#104]...
  • Page 45 VAA31001-R.3651.A MICROPHONE ・ Set the microphone [#222]. ・ Set the lead wires [black] and [red] onto the hook without crossing them. (Fig. 1) ・ Set the spacer [#223]. ・ Set the spacer [#025]. Microphone [#222] ・ Solder the lead wires [black] and [red]. - A19 ･...
  • Page 46 VAA31001-R.3651.A SPEAKER HOLDER ・ Fit the center boss on the speaker holder [#233] into ・ Solder the lead wires [red] and [white]. the boss hole on the LCD holder [#231]. Then, turn ・ Arrange the lead wire [red] of the microphone [#222] the speaker holder [#233] clockwise.
  • Page 47 VAA31001-R.3651.A TRIPOD SOCKET Hook ・ Install the tripod socket [#201] by fitting onto the Tripod socket [#201] hook. LCD [#239] ASSEMBLY OF FRONT COVER ・ Install the release button unit [#020] by inserting its ・ Adhere the spacer [#019] of the release button unit convex section A into the notch B on the front cover as shown below.
  • Page 48 VAA31001-R.3651.A ・ Set the battery holder [#024] by using the hook. ・ Tighten the two screws [#104]. Battery holder [#024] Hook Screw [#104] ・ Set the decoration top [#021]. Decoration top [#021] - A22 ･ E5600 -...
  • Page 49 VAA31001-R.3651.A FRONT COVER ・ Set the front cover [#013]. ・ Set the earth release [#026]. ・ Tighten the two screws [#102]. ・ Perform soldering. ・ Set the FPC. Perform soldering. Earth release [#026] Screw [#102] Front cover [#013] ASSEMBLY OF REAR COVER ・...
  • Page 50 VAA31001-R.3651.A REAR COVER ・ Set the USB cover [#033]. ・ Fold the FPC as shown below and set it. Rear cover unit [#030] USB cover [#033] ・ Set the rear cover unit [#030]. ・ Tighten the two screws [#103]. Screw [#103] Rear cover unit [#030] ・...
  • Page 51 VAA31001-R.3651.A ADJUSTMENT 1. Equipment IBM compatible PC/AT • AC adapter EH-62B • USB cable ( UC-E6) 2. Servicing tools • Pattern box • Color meter • Luminance meter • Siemens star chart • Calibration software (J65071) • Adjustment collimator (J63090) or Adjustment firmware 3.
  • Page 52 VAA31001-R.3651.A 4. Initial image data writing and Firmware upgrading Write the data of initial images, and go on to upgrade the firmware. Device ・ AC adapter (EH-62B)　 ・ Upgrading SD card X 1　 [How to create an upgrading SD card] 1) Format SD card on PC.
  • Page 53 VAA31001-R.3651.A ・ When the data writing is completed, the menu for upgrading will be displayed. (Fig.3) (Fig.3) ・ Select "Yes", and press the decision button to carry out upgrading. (Fig.4) Note: Do NOT turn power OFF during upgrading.　　 (Fig.4) ・ When the screen indicates the completion of upgrading, turn power OFF and remove the SD card. (Fig.5) ・...
  • Page 54 • Copy "DscCalDi.exe, Camapi32.dll" folder of the floppy disk drive in any folder on the hard disk. 6. Installing USB driver If the USB driver is necessary, install Nikon View via CD-ROM packed with the camera. - A28 ･ E5600 -...
  • Page 55 VAA31001-R.3651.A 7. Pattern box Before using the pattern box, turn its power on to carry out "Aging" approx. 30 minutes: the color temperature should be 3100 ± 20K by the adjustment with the color meter, and the luminance should be 900 ± 20cd/m by the adjustment with the luminance meter.
  • Page 56 VAA31001-R.3651.A 9. Connecting the camera to the computer 1) Insert the camera connector of USB cable in the notch of the camera’s USB port. 2) Connect the cable to the USB port on PC. To USB port USBポートへ USB Cable (UC-E6) UC-E6）...
  • Page 57 VAA31001-R.3651.A 11. Lens adjustment ※ For the lens adjustment, choose either the infinity adjustment with the collimator or the 1.5-m adjustment with the adjustment firmware. (However, in case of 1.5-m adjustment, the focus may not be sharp at infinity.) 11-1. Infinity adjustment [Preparations] •...
  • Page 58 VAA31001-R.3651.A 11-2. 1.5-m Adjustment ※ Before performing the 1.5-m adjustment in this machine, write the adjustment firmware on the camera. After adjustment, be sure to write the product firmware. Procedure for setting Adjustment firmware 1) Save the adjustment firmware and the product firmware in any folder. 2) Start up "DscCa1Di.exe"...
  • Page 59 VAA31001-R.3651.A 12. AWB adjustment [Preparations] • Pattern Box(Color temperature: 3100 ± 20K, Luminance: 900 ± 20cd/m [Conditions] • Set the pattern box and camera (lens front) at "0cm" distance between them. Note) Do not allow outside light to enter in. [How to] •...
  • Page 60 VAA31001-R.3651.A 13. CCD white dot defect compensation [Conditions] • With the lens shutter being closed, read the defect of CCD pixels. Then, make the correction data and rewrite the data by the following procedure. Correct the upper level of defective 2000 pixels from the brightest number of CCD pixels.. [How to] •...
  • Page 61 • Double-click on the "DscCa1Di.exe". • Click on the "Get" button in the USB storage window and check the USB storage data. VID: NIKON PID: NIKON DSC E5600 Serial: Rev. : 1.00 • Check the“Serial”in the above USB storage data. If the displayed value is different from the serial number printed on the base of the camera, enter the number on the base of the camera, and click the "Set"...
  • Page 62 VAA31001-R.3651.A - E1･ E5600 -...
  • Page 63 VAA31001-R.3651.A - E2･ E5600 -...
  • Page 64 VAA31001-R.3651.A - E3･ E5600 -...
  • Page 65 VAA31001-R.3651.A - E4･ E5600 -...
  • Page 66 VAA31001-R.3651.A - E5･ E5600 -...
  • Page 67 VAA31001-R.3651.A - E6･ E5600 -...
  • Page 68 VAA31001-R.3651.A - E7･ E5600 -...
  • Page 69 VAA31001-R.3651.A - E8･ E5600 -...

  • Page 70: Lcd Panel

    VAA31001-R.3651.A 総合結線図 OVERALL WIRING LCD PANEL LCD BACK LIGHT WHITE CL308 LED_A JW601 LED_A CL307 LED_C JW602 LED_C GRAY CN110 & USB_VDD USB D(-) VIDEO BACK UP USB D(+) CN303 ZAV_JACK BACK UP BAT AUDIO_OUT VIDEO_OUT (DMA) JW501 BAT+ (RED) TO BATTERY (SYA) JW502 BAT- (BLACK)
  • Page 71 VAA31001-R.3651.A CP1(DMA) 回路図 CP1(DMA)CIRCUIT DIAGRAM DMA(LENS) VDD3 VDD3 TNSBA123JD--H Q9509 NSBA123JD 1AV4J11SL203G CN951 CN143 DMA(MAIN) R9503 ZPLS K1 1AV4J11B6390M OM/ORTR56Z OM/ORZJ11B6390MHBZ 390;1/16J ZPLS E1 DATA3 ZPLS K2 D1-68900/SX796-JNK COMMAND ZPLS E2 DC 1- R1402 RB101 DC 2+ C9502 100;1/16J LB8655T-E ZCCE1 CLOCK SHUTER+...
  • Page 72 VAA31001-R.3651.A CP1(SYA) 回路図 CP1(SYA) CIRCUIT DIAGRAM Y1-68900/SX796-JNK TO DMA(MAIN) PAON2 COMREQ TO TB1 PLLEN JW601, 602 ZTEST CL308 CL307 LCDON2 R3014 LCDON 220;1/16J OM/ORZJ11SJ060GZ PAON 1AV4J11SJ062G CN301 BEEP BACK UP3.2V SCAN IN 1E SI1E SREQ SCAN IN 2E SI2E USBCNT SCAN OUT 4 SCAN IN 0E C3006...
  • Page 73 VAA31001-R.3651.A CP1(CAA) 回路図 CP1(CAA) CIRCUIT DIAGRAM C1-68900/SX796-JNK R9007 3.3;1/16J -6.0V(A) �������� ���� ����� ��� �� +3.45V(A) C9026 R9001 0;1/16Z ����� +12V(A) ���� ���� ����� � TO DMA(MAIN) ����� ������ ADCK ���� 22 21 20 19 18 17 16 15 ���� ����...
  • Page 74 VAA31001-R.3651.A CP1(PWA) 回路図 CP1(PWA) CIRCUIT DIAGRAM F5005 UNREG(ST) F47K2R0C3LFND UNREG(ST) TO STA 1608 2A 32V D9601 F5004 L9601 BOOST4.25V <BOOST/LENS> F47K2R0C3LFND SD833-04(SC) 10;M BOOST4.25V TO DMA(MAIN, LENS) 1608 D53LC P1-68900/SX796-JNK 2A 32V �������� ���� ����� ��� �� Q9601 FDC633N-NF M-GND OM/ORTR16Z M-GND H=1.2...
  • Page 75 VAA31001-R.3651.A CP1(STA) 回路図 CP1(STA) CIRCUIT DIAGRAM FLASH REFLECTOR D5403 D5402 S2-68900/SX796-JNK W1400 RR264M-400 PINK CRF02-Q OM/ORDD44Z OM/ORDD44Z STROBO UNIT T5402 OM/ORCC3316Z OM/ORLIV006HZ 3316 H=1.8 1AV4L17B0370N W1600 C5410 1AV4L17B0200G GRAY 0.033;350H T5401 UNREG(ST) TO PWA 3216 UNREG(ST) C5411 0.01;630H W1500 R5414 BLUE 1608 1K;1/16J...
  • Page 76 VAA31001-R.3651.A ST1 回路図 ST1 CIRCUIT DIAGRAM TO CP1(STA) JM541, 542 JW551 JW552 BLACK S1-68900/SX796-JNK - E15 ･ E5600 - MODEL: E5600 CIRCUIT DIAGRAM: ST1...
  • Page 77 VAA31001-R.3651.A TB1 回路図 TB1 CIRCUIT DIAGRAM OM/ORLE07AZ H=0.8 D6001 DLSML-511UW-G WHITE TO CP1(SYA) CL308, CL307 SELF RED JW601 JW602 GRAY T1-68900/SX796-JNK MODEL: E5600 CIRCUIT DIAGRAM: TB1 - E16 ･ E5600 -...
  • Page 78 VAA31001-R.3651.A TB2 回路図 TB2 CIRCUIT DIAGRAM TO CP1(SYA) CN303 Z6501 H=2.5(1.85+BOND) ML614-TZ14 OM/ORZD20B07400HZ 1AV4D20B09300 T2-68900/SX796-JNK MODEL: E5600 CIRCUIT DIAGRAM: TB2 - E17 ･ E5600 -...
  • Page 79 VAA31001-R.3651.A 総合ブロック図 OVERALL BLOCK DIAGRAM LENS BLOCK CCD BLOCK IC951 IC903 IC905 IC901 5M Pixel CDS/AGC/AD-C LENS H. Driver V. Driver LENS DRIVER SYA BLOCK IC121 FLASH(NAND) FD(0:7) 128Mbit D(0:15) MRST FLASH(NOR) 16Mbit A(1:20) CN301 ZTEST RELEASE UNIT PLLEN IC103 SD(0:31) 256Mbit IC301...

  • Page 80: Ccd Block Diagram

    VAA31001-R.3651.A CCD ブロック図 CCD BLOCK DIAGRAM V1,V2,V3A,V3B,V4,V5A,V5B,V6 SUBSW VDD3 26, 24, 37, 6 - E19 ･ E5600 -...

  • Page 81: Lens Block Diagram

    VAA31001-R.3651.A LENS ブロック図 LENS BLOCK DIAGRAM IC961 UNREG BOOST4.25V L9601, D9601 Q9601, C9603 UNIT LENS SW REG. CN951 1, 14 Q9509 VDD3 ZPLUSE1 PICTRL (IC101 198pin) ZPULSE1 ZPLUSE2 (IC101 213pin) Q9502 ZPULSE2 (IC101 212pin) ZOOM_PI ZRESET (IC101 210pin) Q9501 FOCUS_PI (IC101 206pin) IC951 LB8655T...

  • Page 82: Asic Block Diagram

    VAA31001-R.3651.A ASIC ブロック図 ASIC BLOCK DIAGRAM - E21 ･ E5600 -...
  • Page 83 VAA31001-R.3651.A SYSTEM CONTROL ブロック図 SYSTEM CONTROL BLOCK DIAGRAM IC304 RESET IC UNREG BOOST4.25V BOOST4.25V TO DMA(MAIN) ALWAYS3.2V IC302 P ON BATTERY P ON BACKUP PA ON Q3002 RESET PA ON CHG ON VMONIT BAT OFF VMONIT LCD ON LCD ON BATTERY PA ON2 BACK UP...

  • Page 84: Power Block Diagram

    VAA31001-R.3651.A POWER ブロック図 POWER BLOCK DIAGRAM STB4 STB7 STB23 STB6 SWOUT7 STB1 SWIN7 SWOUT6 SWIN6 - E23 ･ E5600 -...
  • Page 85 VAA31001-R.3651.A FUSE arrangement (CP1 PCB) F5001 F5002 F5005 F5004 FUSE Function of FUSE Phenomenon when FUSE has blown out Rating Protection of the DC/DC converter and F5001 The power is not turned on. 2A　32V the system computer circuit F5002 Protection of the DC/DC converter The power is not turned on.
  • Page 86 VAA31001-R.3651.A The contents of inspection standards and tools for E5600 [1] Inspection standards ............................R1 to R10 [2] Tools ..................................T1 to T5 - E5600 -...

  • Page 87: Inspection Standards

    VAA31001-R.3651.A INSPECTION STANDARDS Item Criteria Applied tool(s) External view Gap/Difference in ・ General components Visual observation height Gap: 0.3mm or less Difference in height: 0.15mm or less ・ When the battery case is opened/closed: 　Gap in its periphery: 0.3mm or less 　Gap in the bottom: 0.5mm or less 　Difference between right and left: 0.2mm or less 　Stepped difference: 0.5mm or less...
  • Page 88 VAA31001-R.3651.A Item Criteria Applied tool(s) Monitor Shooting image ・ Inclined degree of image shall be 0.5 degree or less. Photoshop ・ PC monitor and print output Printer (Output will be evaluated while the display range boundary of LCD unit is regarded as standard when the through-the-monitor image is made.) Lens capacity Focal length...
  • Page 89 VAA31001-R.3651.A Item Criteria Applied tool(s) Lens barrel Zoom / Focus ・ There must not be an abnormal action (for example, the unit oper- Visual observation ates one-sidedly or its operation is not smooth or it is caught). (As changing the camera's posture, check it in all the directions.) Distance measurement ・...
  • Page 90 VAA31001-R.3651.A Item Criteria Applied tool(s) Quality of image Resolution in AF The resolution must be in compliance with the following values in EIAJ chart all the postures of the EIA J chart evaluation. Photoshop <High quality of image> Siemens chart Center horizontal/vertical: 1150 TV pcs.
  • Page 91 VAA31001-R.3651.A Item Criteria Applied tool(s) In the case of compel- <Compelling infinity> (The whole zoom area) Infinity chart ling infinity Center horizontal/vertical: 950 TV pcs. ・ Shoot the infinity collimator image on condition that aperture is "open" in the scene distance view/night view mode and the image quality priority mode.
  • Page 92 VAA31001-R.3651.A Item Criteria Applied tool(s) Quality of image Noise [Histogram's standard deviation] 5100K viewer ・ Gray: 3.0 or less ITE γ 0.45 Black: 3.0 or less Gray scale (standard) ・ Equip the 5100K viewer with a scale and shoot an object in the Photoshop full range of angle of view while the AUTO mode and the image quality priority mode are set.
  • Page 93 VAA31001-R.3651.A Item Criteria Applied tool(s) Finder View / Image ・ There must be no blur, distortion, ghost, halation or other out- Visual observation standing troubles in contrast, gradation, etc. Visual field frame/ ・ Blur or difference in thickness must be within the proper range to Visual observation frame line operate the stamped line and visual field frame.
  • Page 94 VAA31001-R.3651.A Item Criteria Applied tool(s) LCD and others Monitor LCD View ・ The reproduction of W, B and RGB must not be interfered. Visual observation ・ The monitor LCD must comply with the SY monitor LCD perfor- mance standard. ・ There must be no shading in the LCD display range. ・...
  • Page 95 VAA31001-R.3651.A Item Criteria Applied tool(s) Electric characteristics Constant voltage Consumption current power supply Stand-by ・ When card is not used: 0.27mA or less (when the power switch Ammeter is OFF) Dummy battery pack ・ When card is used: 0.39mA or less (when the power switch is OFF) Start (Photography) ・...
  • Page 96 VAA31001-R.3651.A Item Criteria Applied tool(s) Electric characteristics When voltage increases (Alkaline battery) Level 1 ・ 2.25 ± 0.1V Level 2 ・ 2.1 ± 0.1V (Ni-MH) Level 1 ・ 2.45 ± 0.1V Level 2 ・ 2.1 ± 0.1V (Li battery) Level 1 ・...
  • Page 97 VAA31001-R.3651.A ［２］ 工具一覧表　　Tool List ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks J63080 パターンボックス　LV-1450DC 共通 (E4300, E3500, E3100, E2100, E5400, Pattern Box LV-1450DC E3700, E3200, E2200, E8700, E4100, E4600, E5600) Common(E4300, E3500, E3100, E2100, E5400, E3700, E3200, E2200, E8700, E4100, E4600, E5600) J63080A...
  • Page 98 VAA31001-R.3651.A ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks ※ J65071 キャリブレーションソフト 共通 (E995,E775,E885 E5000, E2500, E4500 Calibration Software E5700, E4300, E3500 E3100, E2100, E5400 E3700, E3200, E2200 E8700, E4100, E4600 E5600) Common(E995,E775,E885 E5000, E2500, E4500 E5700, E4300, E3500 E3100, E2100, E5400 E3700, E3200, E2200 E8700, E4100, E4600...
  • Page 99 VAA31001-R.3651.A ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks ※ J61202 レンズユニット検査工具 FFD 点検調整用 Lens unit checking tool For FFD inspection and adjustment ※ J61202F 接続コード FFD 点検調整用 Connection cable for lens For FFD inspection and adjustment ※ J61204 デジタル通信ボード...
  • Page 100 VAA31001-R.3651.A ※：新規工具 ※：New tool 工具番号 名　　称 備　考 Tool No. Name Remarks ※ J15327 FFD 調整用マイクロ台 FFD 点検調整用 Adjusting focus stand for APS For FFD inspection and adjustment ※ J15327A FFD 調整用マイクロ台アダプター FFD 点検調整用 Adapter for J15327A For FFD inspection and adjustment ※...
  • Page 101 VAA31001-R.3651.A - T5･ E5600 -...
