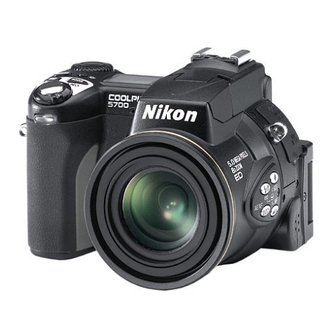

Nikon Coolpix 5700 Repair Manual

Hide thumbs Also See for Coolpix 5700:
Table of Contents

Advertisement

Quick Links

See also: Manual
Recycled paper
再生紙を使用しています
Printed in Japan July 2002
VAA11801 (J)
VAA11802 (U)
VAA11803 (EP)
VAA11804 (EN)
REPAIR MANUAL
Copyright ｃ 2002 by Nikon Corporation.
All Rights Reserved.
無断転載を禁ず !!
VAA11801-R.3578.A
作成承認印 配布許可印

Advertisement

Table of Contents
loading

Related Manuals for Nikon Coolpix 5700

Summary of Contents for Nikon Coolpix 5700

  • Page 1 VAA11801-R.3578.A 作成承認印 配布許可印 VAA11801 (J) VAA11802 (U) VAA11803 (EP) VAA11804 (EN) REPAIR MANUAL Copyright ｃ 2002 by Nikon Corporation. All Rights Reserved. Recycled paper 無断転載を禁ず !! 再生紙を使用しています Printed in Japan July 2002...

  • Page 2: Table Of Contents

    VAA11801-R.3578.A CONTENTS SPECIFICATIONS　･･････････････････････････････････････ ･････････････････････ 　　Ｍ１－Ｍ２ ･･ DISASSEMBLING WARNING / NOTES, SB TOP COVER ･･････････････････････････････････････････････ 　　　　　Ｄ１ DISCHARGE ELECTRICITY FROM THE MAIN CAPACITOR ･････････････････････････ 　　　　　Ｄ１ BACK CABINET, LCD UNIT ･････････････････････････････････････････････････ 　　Ｄ２－Ｄ３ 　　JOINT UNIT　･･････････････････････････････････････････････････････････････････　　 　　　　　Ｄ４ 　　TOP CABINET　････････････････････････････････････････････････････････････････ 　　　　　Ｄ５ 　　LENS UNIT COVER　･･･････････････････････････････････････････････････････････ 　　　　　Ｄ６ 　　BATTERY UNIT　･･････････････････････････････････････････････････････････････ 　　　　　Ｄ７...

  • Page 3: Specifications

    VAA11801-R.3578.A Specifications Type E5700 digital camera Effective pixels 5.0 million ” high-density CCD; total pixels: 5.24 million Image size (pixels) • 2560 x 1920 (Full) • 1280 x 960 (SXGA) • 2560 x 1704 (3:2) • 1024 x 768 (XGA) •...
  • Page 4 Battery life (EN-EL1) Approximately 90 minutes (as measured at room temperature [20°C/68 °F] under standard Nikon test conditions: monitor on, zoom adjusted with each shot, flash used in approximately one third of photographs, image quality set to NORMAL Dimensions (W x H x D) 108 x 76 x 102 mm (4.3"...
  • Page 5 VAA11801-R.3578.A DISASSEMBLING WARNING There are high voltege parts inside. Be careful of this electric shock, when you remove the cover. You must discharge the main condenser according to the instruction of this repair manual before you remove the cover. Notes: 　 ①...
  • Page 6 VAA11801-R.3578.A ② ⑤ ⑥ ⑤ FPC ⑦ ① ③ ③ ⑪ ④ ③ CONNECTOR ⑧ ③ ⑩ ⑨ • Remove the Hood VF ① . • Remove the screw ② (M1.7 x 2.5) . • Remove the 4 Pieces of screws (M1.7 x 3.5) .
  • Page 7 VAA11801-R.3578.A ① • Rotate the LCD unit approx. 45 degree in an arrow direction. • Remove the 4 pieces of screws ① (M2 x 3). ① ② • Remove the back LCD cover ② . • Remove the FPC ③ and connector ④ . ⑧...
  • Page 8 VAA11801-R.3578.A ③ ② • Remove the LCD ① from the LCD ④ holder. • Remove the 2 pieces of solders ② . • Remove the LCD PCB VF-1 ③ . • Remove the spacer LCD holder ① 4. JOINT UNIT Joint cover ①...
  • Page 9 VAA11801-R.3578.A 5. TOP CABINET ⑨ ② ⑩ ⑧ ① FPC ⑪ FPC ⑪ ⑨ Connector ⑬ FPC ⑫ ⑦ ⑦ ⑤ ③ ④ ⑥ • Remove the screw ① (M1.7 x 2.5). • Remove the 2 Pieces of screws ② (M1.7 x 3.5). •...
  • Page 10 VAA11801-R.3578.A ⑤ Connector ④ ① FPC ③ ① ⑥ ② ① • Remove the 4 Pieces of screws ① (M1.7 x 4). • Remove the 2 Pieces of screws ② (M1.7 x 3.5). • Remove the FPC and the connector ③...
  • Page 11 VAA11801-R.3578.A ⑨ ③ ② ⑫ ③ ⑬ ⑪ ⑩ ① ⑮ ④ ⑯ ⑦ ⑭ ⑥ ⑧ ⑤ • Remove the Terminal cover ① . • Remove the screw ② (M1.7 x 3). ⑥ • Remove the 2 Pieces of screws ③ (M1.7 x 4). •...

  • Page 12: Pcb, Ca-1 Pcb, Pw-1 Pcb　････････････････････････････････････････････････ Ｄ８

    VAA11801-R.3578.A 8. CP-1 PCB, CA-1 PCB, PW-1 PCB ⑭ ⑲ ⑳ ⑮ ④ ⑰ ⑫ ⑩ ⑪ ③ ⑯ ⑬ ① ⑤ ⑥ ② ⑱ ⑪ ⑧ ⑨ ⑦ • Remove the screw ① (M1.7x2.5). • Remove the connector ② ,the connector ③ ,and then remove the PW-1 PCB ④ . •...
  • Page 13 VAA11801-R.3578.A ⑦ ① ② ③ ⑩ ⑨ ⑥ ⑤ ⑧ ④ Spacer Optical filter Spacer • Remove the 2 Pieces of screws ① (M1.7 x 3). • Remove the EVF ② . • Remove the screw ③ (M1.7 x 3). •...
  • Page 14 VAA11801-R.3578.A 1. EVF • Attach the LCD ① to the finder unit. ① ② • Align the spacer ② with the position ③ . Affix the spacer,and then bent it in order of ④ , ⑤ Note: When inserting the LCD unit into the finder unit, be careful of the dust, etc.

  • Page 15: Lens Unit　･･････････････････････････････････････････････････････････････････ Ａ２

    VAA11801-R.3578.A 3. LENS UNIT ⑩ ④ ⑨ Spacer Optical filter ⑧ Spacer ① ⑤ ② ⑥ ③ ⑦ Optical CCD side Lens side CCD side filter side • Attach the CA-1 holder ③ to the lens unit. • Attach the 2 pieces of screws ④ (M1.7 x 2.5). •...
  • Page 16 VAA11801-R.3578.A 4. CP-1 PCB, PW-1 PCB ⑧ ⑥ ④ ⑦ ⑱ ① ⑤ ⑫ ⑩ ⑲ ③ ⑨ ⑰ ⑯ ⑳ ② ⑪ ⑭ ⑬ ⑮ • Attach the SB unit ① to the condenser holder ② . • Attach the screw ③ (M1.7 x 4). •...
  • Page 17 VAA11801-R.3578.A Fig.3 - A4 ･ E5700 -...
  • Page 18 VAA11801-R.3578.A ⑧ ⑮ ⑭ ⑥ ④ ⑦ ③ ③ ⑯ ② ⑬ ① ⑩ ⑤ ⑪ ⑨ ⑫ - A5 ･ E5700 -...
  • Page 19 VAA11801-R.3578.A Connector ④ ① FPC ① ② ⑤ ⑥ • FPC ① should be at outside of the lens unit cover. • Attach the lens unit cover ② to the camera body. • Attach the SB unit ③ to the camera body. •...

  • Page 20: Top Cabinet　･･･････････････････････････････････････････････････････････････ Ａ７

    VAA11801-R.3578.A 7. TOP CABINET ⑥ ⑫ ④ ⑤ ⑬ FPC ③ FPC ③ ⑥ Connector ① FPC ② ⑦ ⑦ ⑧ ⑩ ⑪ ⑨ • Connect the connector ① and FPC ② . • Connect the 2 pieces of FPC ③ . •...
  • Page 21 VAA11801-R.3578.A 8. JOINT UNIT Joint cover ④ ② ① Monitor cover ③ Ⅰ Ⅱ • Attach the TB-1 PCB ① to the joint unit. • Attach the 1 piece of screw ② (M1.7 x 2.5). • Rotate the A of the joint approx. 90 degree in an arrow direction( Ⅰ ). •...

  • Page 22: Joint Unit　･････････････････････････････････････････････････････････････････ Ａ８

    VAA11801-R.3578.A 9. LCD UNIT ② ③ ① LCD holder ④ • Attach the spacer ① to the LCD holder. • Attach the LCD PCB VF-1 ② . • Solder the 2 pieces of ③ . • Attach the LCD ④ to the LCD holder. ⑧...
  • Page 23 VAA11801-R.3578.A ⑨ • Rotate the LCD unit approx. 45 degree in an arrow direction. • Attach the 4 pieces of screws ⑨ (M2 x 3). ⑨ LCD unit Back cabinet ② Connector ① ⑤ ③ ④ • Pass the connector ① through the hole of the back cabinet and then pull it out to the front side of the rear cover.
  • Page 24 VAA11801-R.3578.A ⑩ ⑧ ⑥ ⑧ FPC ④ ⑦ ⑨ ⑨ ② Connector ⑤ ⑨ ⑨ ③ ① • Attach the Jack cover ① • Attach the Jack Holder and then attach the screw (M1.7 x 3). ② ③ • Connect the FPC and the connector ④...

  • Page 25: Adjustment

    VAA11801-R.3578.A ADJUSTMENT 1. Equipment IBM compatible PC • AC adapter EH-21 • USB cable • UC-E1 • Oscilloscope 2. Servicing Tools • Color viewer 5,100 K • Siemens star chart • Calibration software • Chart for color adjustment 3. Adjustment Items and Order 1.
  • Page 26 VAA11801-R.3578.A 5. Installing USB drive Install the USB drive with camera or connection kit for PC. 6. Color Viewer Turn on the switch and wait for 30 minutes for aging to take place before using Color Pure. 7. Adjustment items required at replacement of parts Lens Adj.
  • Page 27 VAA11801-R.3578.A 9. Calibration software After starting the applicable calibration software, the following is displayed on the PC monitor. 10. Lens Adjustment [Preparation] • Siemens star chart • POWER switch: ON [Adjustment condition] • Make a copy of A4 size siemens chart in enlarged A3 size or larger. •...
  • Page 28 VAA11801-R.3578.A 11. AWB Adjustment [Preparation] • Color viewer • POWER switch: ON (set to Any MODE) [Note] When setting the camera in place, set it to an angle so that nothing appears in any part of the color viewer except the white section. (Do not enter any light.) [Adjusting method] 1.
  • Page 29 VAA11801-R.3578.A 12. Color Adjustment [Note] AWB adjustment should always be carried out first. [Adjustment condition] • Set the color adjustment chart to the color viewer. (Do not enter any light.) • Set the color adjustment chart so that it becomes center of the screen. [Adjustment method] •...
  • Page 30 VAA11801-R.3578.A 13. CCD White point Defect Detect Adjustment [Adjustment method] • Double-click on the DscCalDi128. • Select the CCD Defect from Test menu of Calibration Soft and click the OK. Refer to FIG-1. • After adjustment, An adjustment value will appear on the screen. Refer to FIG-2. <FIG-2>...
  • Page 31 2. Double-click on the DscCalDi128. 3. Click on the Get button in the USB storage window and check the USB storage data. VID: NIKON PID: NIKON DSC E5700 Serial: Rev. : 1.00 4. Check the “Serial” in the above USB storage data. If the displayed value is different from the serial number printed on the base of the camera, enter the number on the base of the camera.
  • Page 32 VAA11801-R.3578.A 16. LCD Panel Adjustment [VF1 board (Side B)] ����������� �������� �������� �������� ����� ������� 16-1. LCD H AFC Adjustment [Preparation] • POWER switch: ON LCD screen [Adjusting method] 1. Double-click on the DscCalDi128. 2. Select 0 on the LCD H AFC. 3.
  • Page 33 VAA11801-R.3578.A 16-3. LCD Gain Adjustment [Adjusting method] 1. Adjust LCD “Gain” so that the amplitude of the CL410 waveform is 6.4 V ± 0.2 Vp-p. [Note] 16-2. LCD RGB Offset adjustment should always be carried out first. 16-4. LCD Blue Brightness Adjustment [Adjusting method] 1.
  • Page 34 VAA11801-R.3578.A 16-5. LCD Red Brightness Adjustment [Adjusting method] 1. Adjust LCD “R Bright” so that the amplitude of the CL411 waveform is VG±0.1 Vp-p with respect to the CL410 (VG) waveform. [Note] 16-2. LCD RGB Offset adjustment and 16-3. LCD Gain adjustment have done. - A21 ･...

  • Page 35: Outline Of Circuit Description

    VAA11801-R.3578.A 1. OUTLINE OF CIRCUIT DESCRIPTION ����� 1-1. CA1 CIRCUIT DESCRIPTION � 1. IC Configuration IC903 (ICX282AK-B) CCD imager � IC904, IC906 (CDX3400N) V driver IC905 (AD9849KST) H driver, CDS, AGC, A/D � converter �� � �� ������ 2. IC903 (CCD) Fig.
  • Page 36 VAA11801-R.3578.A 3. IC904 and IC906 (V Driver) 5. Lens drive block IC904 and IC906 are vertical clock driver for image 5-1. Focus drive sensor. The ternary pulse of V φ 1 (A, B and C) and V The focus stepping motor drive signals (FM RESETB, φ...
  • Page 37 VAA11801-R.3578.A 1-2. CP1 & VF1 CIRCUIT DESCRIPTION 1. Circuit Description 2. Outline of Operation When the shutter opens, the reset signals (ASIC 1-1. Digital clamp (IC102) and CPU (IC101)) and the serial signals (“take The optical black section of the CCD extracts averaged a picture”...
  • Page 38 VAA11801-R.3578.A 1-3. PW1 POWER CIRCUIT DESCRIPTION 1. Power Circuit Outline 1-2. Switching Regulator Controller K11840L The switching regulator consists of a DC-DC converter, (IC503) and it uses a digital power supply, CCD power supply, This is the LED backlight circuit for EVF, and is LCD panel power supply, LED backlight power supply provided with one built-in channel.
  • Page 39 VAA11801-R.3578.A 1-4. SY-A CIRCUIT DESCRIPTION 1. Configuration and Functions For the overall configuration of the SY-A block, refer to the block diagram. The configuration of the SY-A block centers around a 8-bit microprocessor (IC301). The 8-bit microprocessor handles the following functions. 1.
  • Page 40 VAA11801-R.3578.A Signal Outline Serial clock output ( → ASIC) Internal connection (connect to VSS terminal directly) XOUT Main clock oscillation terminal Main clock oscillation terminal (3 MHz) XCIN Clock oscillation terminal (32.768 kHz) XCOUT Clock oscillation terminal RESET Reset input BAT OFF Battery OFF detection signal L : No battery...
  • Page 41 VAA11801-R.3578.A 4. Power Supply Control The 8-bit microprocessor controls the power supply for the overall system. The following is a description of how the power supply is turned on and off. When the battery is attached, a regu- lated 3.2 V voltage is normally input to the 8-bit microprocessor (IC301) by IC302, so that clock counting and key scanning is carried out even when the power switch is turned off, so that the camera can start up again.

  • Page 42: Overall Wiring　･･･････････････････････････････････････････････････････････ Ｅ８

    VAA11801-R.3578.A 総合結線図 OVERALL WIRING - E8 ･ E5700 -...

  • Page 43: Overall Block Diagram　･･････････････････････････････････････････････････ Ｅ９

    VAA11801-R.3578.A 総合ブロック図 OVERALL BLOCK DIAGRAM ��������� ������ ������ ���� � ����� ��� ��� �� ����� ��� �� ����� ��� ���� �������� �� �������� ���� ����� ������� ��� �������� �� �� ����� ��� �� ��� ���� ����� � ��������� ���� �������� ����...

  • Page 44: Block (Lens Unit) Diagram

    VAA11801-R.3578.A ����� ����� �������� ������������������� ����� ����� ����� ���� �������� �������������� ������ ������ ����� ����� �� �� ��������� ���� ����� ����� ���� ���� �� �������� ������� ���� ������� ���� ���� ������ ���������� ���� ���� CP-1 ブロック図 ���� ����� CP-1 BLOCK DIAGRAM ������...
  • Page 45 VAA11801-R.3578.A CP-1（レンズ部）ブロック図 CP-1（LENS） BLOCK DIAGRAM SW REG. UNREGM IC954 Q9500 L9501 C9515 D9501 VDD5 MAIN BLOCK & SYSTEM BLOCK IC956 CN951 LENS BLOCK FM CW FOUT1 FM OEB FOUT2 F.M. MPC17AT85MTP FM CKI FOUT3 FM RESETB FOUT4 RESETB FOCUS DRIVER Q9505 FMPI PIA-E...
  • Page 46 VAA11801-R.3578.A A3001 BACK LIGHT AL3.2V UNREG 1~28 IC302 BATTERY BACKUP CN307 Q3010 23~26,32~55 DC IN P ON P ON RESET PA ON PA ON Q3002 BAT OFF LCD ON LCD ON LCD BL DCINCHK LCD BL EVF ON EVF ON XCIN EVF BL EVF BL...

  • Page 47: Block Diagram

    VAA11801-R.3578.A CA-1 ブロック図 CA-1 BLOCK DIAGRAM - E13 ･ E5700 -...

  • Page 48: Block Diagram

    VAA11801-R.3578.A PW-1 ブロック図 PW-1 BLOCK DIAGRAM FET SW UPD1915TE STROBO UNIT PR502 UNREG Battery PR501 JK501 PR503 UNREG PR504 AC ADAPTER PR505 PR506 PR507 CN501 EVF ON LCD ON 6,7,8,31 PA ON ANALOG 5.15V(D) Q5032 5.0V(A) T5001 DISCHARGE DC/DC CIRCUIT CONVERTER TRANS Q5026...
  • Page 49 VAA11801-R.3578.A VF-1 回路図 VF-1 CIRCUIT DIAGRAM - E15 ･ E5700 -...
  • Page 50 VAA11801-R.3578.A TB-3 ブロック図 TB-3 BLOCK DIAGRAM - E16 ･ E5700 -...
  • Page 51 VAA11801-R.3578.A TB-4 ブロック図 TB-4 BLOCK DIAGRAM - E17 ･ E5700 -...
  • Page 52 VAA11801-R.3578.A The contents of inspection standards and tools for E5700 [1] Inspection standards ..........................R1 to R5 [2] Tools ................................. T1 to T2 Conditions to be set and prepared for inspections 1. Physical stance to measure : On the applicable product, its lens shall be set flat and its monitor shall be set to vertically stand up. 2.

  • Page 53: Inspection Standard

    VAA11801-R.3578.A Inspection standards Item Criteria Applied tool(s) External view Gap/Difference in • General components height Gap: 0.3mm or less Difference in height: 0.15mm or less • When the battery cover is closed: Gap: 0.6mm or less (Difference between right and left must not be noticeable.) •...
  • Page 54 VAA11801-R.3578.A Item Criteria Applied tool(s) Monitor Shooting image Photoshop ・Inclined degree of image shall be 0.5 degree or less. ・PC monitor and print output Printer (Output will be evaluated while the display range boundary of LCD unit is regarded as standard when the through-the- monitor image is made.) Lens capacity Focal length...
  • Page 55 VAA11801-R.3578.A Item Criteria Applied tool(s) Shooting with a speed light Light adjustment • Tele-end: 0.5~2.7m Standard reflection accuracy • Wide-end: 0.5~4.1m plate In the above range, ± 1Ev or less (ISO: AUTO , • Speed light: Compelling flash, • Exposure: P mode) Guide No.
  • Page 56 VAA11801-R.3578.A Item Criteria Applied tool(s) Quality of image Reproduction of color Color bar chart Ｂ Ｒ Ｇ Ｂ Ｗ 190-230 190-230 190-230 Ｙｅ 190-230 180-210 40- 70 Ｒ 200-220 0- 20 0- 5 • Set the conditions as follows: FINE, auto. white balance, center-weighted metering, P mode, sensitivity 100, gradation adjustment standard and profile emphasis standard •...
  • Page 57 VAA11801-R.3578.A Item Criteria Applied tool(s) LCD and others Monitor LCD View • There must be no shading in the LCD display range. Visual observation • Inclination between the monitor and the monitor frame must not be outstanding. Visual observation Visual field ratio •...
  • Page 58 VAA11801-R.3578.A ［２］ 工具一覧表　　Tool List ※：新規工具 ※：New tool 名　　称 備　考 工具番号 Name Remarks Tool No. J63070 (100-240Volts) カラービューアー　5100K Colour Viwer 5100K 共通 Common J63056 色調整用チャート Chart for Colour Adjustment 共通 Common J65042 キャリブレーションソフト Calibration Software E995,E775,E885,E5000 E2500,E4500,E5700 サービスマニュアル添付 ジーメンスチャート Attached in Siemens chart 共通...
  • Page 59 VAA11801-R.3578.A - T2 ･ E5700 -...

  • Page 60: Parts List

    VAA11801-R.3578.A 作成承認印 配布許可印 VAA11801 (J) VAA11802 (U) VAA11803 (EP) VAA11804 (EN) PARTS LIST Copyright ｃ 2002 by Nikon Corporation. All Rights Reserved. Recycled paper 無断転載を禁ず !! 再生紙を使用しています Printed in Japan July 2002...
  • Page 61 VAA11801-R.3578.A 636-065-2507(5) 411-177-4102(10) 411-176-7203(10) 6B001-370(5) 411-018-1802(10) 645-054-9793(5) 636-066-2063(5) 636-064-9200(5) 636-065-2255(5) 636-067-0501(5) 6B060-332(5) 636-065-2446(5) 411-180-0405(10) 636-066-2063(5) 636-065-2545(5) 636-066-9376(5) 636-064-8531(5) 636-067-0518(5) 1K120-468(10) 636-065-2330(1) 1K120-468(10) 645-055-3257(5) 412-058-8400(10) 411-180-2706(10) 636-066-2070(5) 636-065-2774(5) 636-065-2491(5) 636-066-4913(5) 1K100-035-1(5) 411-173-7008(10) 412-058-8400(10) 636-066-2209(5) 411-177-4102(10) 412-063-1106(10) 6K680-479(5) 501-3(5) 411-173-7008(10) 1K080-005(5) 411-184-6106(10) 636-066-2087(5) 636-066-9246(5) 411-176-7203(10)
  • Page 62 VAA11801-R.3578.A 636-066-3763(5) 636-058-0114(5) 636-066-2216(5) 411-177-4102(10) 636-064-9217(5) 411-178-8901(10) 6B060-333(1) 636-065-2736(1) 411-177-4102(10) 636-065-2965(5) 636-066-9093(5) 636-066-9680(5) 636-065-0824(5) 411-178-8901(10) 636-063-5043(5) 411-178-8901(10) 636-065-1364(5) 636-066-2032(5) 636-065-2750(1) 636-066-5651(5) 411-177-4102(10) 411-180-2706(10) 411-177-4102(10) 636-066-2025(5) 636-065-2699(5) 636-063-5050(5) 636-066-5668(5) 636-066-8225(5) 411-178-8901(10) 411-178-8901(10) 411-178-8901(10) 411-178-8901(10) 636-053-7400(5) 636-065-3016(5) 411-180-2706(10) 636-065-8080(5) 636-065-2743(5) 636-066-9352(5) 412-063-6101(10) 645-054-4095(5) 636-065-2972(5) 411-177-4102(10)
  • Page 63 VAA11801-R.3578.A ���������������� ��������������� ���������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ���������������� ���������������� ��������������� ���������������� ���������������� ���������������� ��������������� ��������������� ���������������� ���������������� ��������������� ��������������� ���������������� ��������������� � ��������������� ��������������� ���������������� ���������������� ��������������� ��������������� ��������������� ��������������� ��������������� ��������������� ���������������� ���������������� ��������������� ���������������� ���������������� ���������������...
  • Page 64 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver * 409-509-4609 (409-509-4609) IMAGE SENSOR ○ ＣＣＤセンサー 411-018-1802 (411-018-1802) SCREW ○ ＳＣＲＥＷ 411-018-3806 (411-018-3806) ＳＣＲＥＷ SCREW ○ * 411-018-6906 (411-018-6906) SCREW ○...
  • Page 65 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver * 412-058-8400 (412-058-8400) SCREW ○ ＳＣＲＥＷ 412-060-6302 (412-060-6302) SCREW ○ ＳＣＲＥＷ * 412-063-1106 (412-063-1106) ＳＣＲＥＷ SCREW ○ 412-063-6101 (412-063-6101) SCREW ○...
  • Page 66 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver 636-064-9187 (636-064-9187) POWER GENERATION PCB PW-1 ○ 電源回路基板　ＰＷ-1 636-064-9194 (636-064-9194) LCD PCB VF-1 ○ ＬＣＤ表示基板　ＶＦ－１ 636-064-9200 (636-064-9200) 反転ＳＷ基板　ＴＢ－１ REVERSE SW PCB TB-1 ○...
  • Page 67 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver 636-065-2446 (636-065-2446) MONITOR COVER ○ モニターカバー 636-065-2460 (636-065-2460) BACK COVER LCD ○ ＬＣＤバックカバー 636-065-2477 (636-065-2477) バッテリーカバー BATTERY COVER ○ 636-065-2491 (636-065-2491) JACK COVER ○...
  • Page 68 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver 636-065-2804 (636-065-2804) LCD LOCK LEVER ○ ＬＣＤロックレバー 636-065-2842 (636-065-2842) RING ○ リング 636-065-2903 (636-065-2903) スタンド STAND ○ 636-065-2958 (636-065-2958) BATTERY SLIDE ○...
  • Page 69 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver 636-065-7854 (636-065-7854) RELAY PCB TB-3 ○ 中継基板　ＴＢ－３ 636-065-8080 (636-065-8080) CONDENSER HOLDER ○ コンデンサーホルダー 636-065-8134 (636-065-8134) ＥＶＦホルダー EVF HOLDER ○ 636-065-9063 (636-065-9063) SPACER ○...
  • Page 70 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver 636-066-3763 (636-066-3763) CF COVER LABEL ○ ＣＦカバーラベル 636-066-3923 (636-066-3923) BACK UNIT HOLDER ○ バックユニットホルダー 636-066-4548 (636-066-4548) シールドテープ SHIELD TAPE ○ 636-066-4890 (636-066-4890) TAPE...
  • Page 71 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver 636-066-9352 (636-066-9352) TERMINAL COVER ○ ターミナルカバー 636-066-9376 (636-066-9376) SLD UNIT COVER ○ ＳＬＤユニットカバー 636-066-9680 (636-066-9680) ＣＦカバーホルダー CF COVER HOLDER ○ 636-067-0501 (636-067-0501) SPACER...
  • Page 72 Parts List E5700 VAA11801-R.3578.A Term Pcs, Q'ty/ Part Number Part Code 名　　称 Part Name Main Assembly Remarks /Unit Order Deliver 645-055-3257 (645-055-3257) SLD SWITCH UNIT ○ ＳＬＤスイッチユニット * 1K080-005 (1K080-005) NECK-STRAP RING COVER ○ 三角環カバー * 1K100-035-1 (1K100-035) 三角環 NECK-STRAP RING ○...
