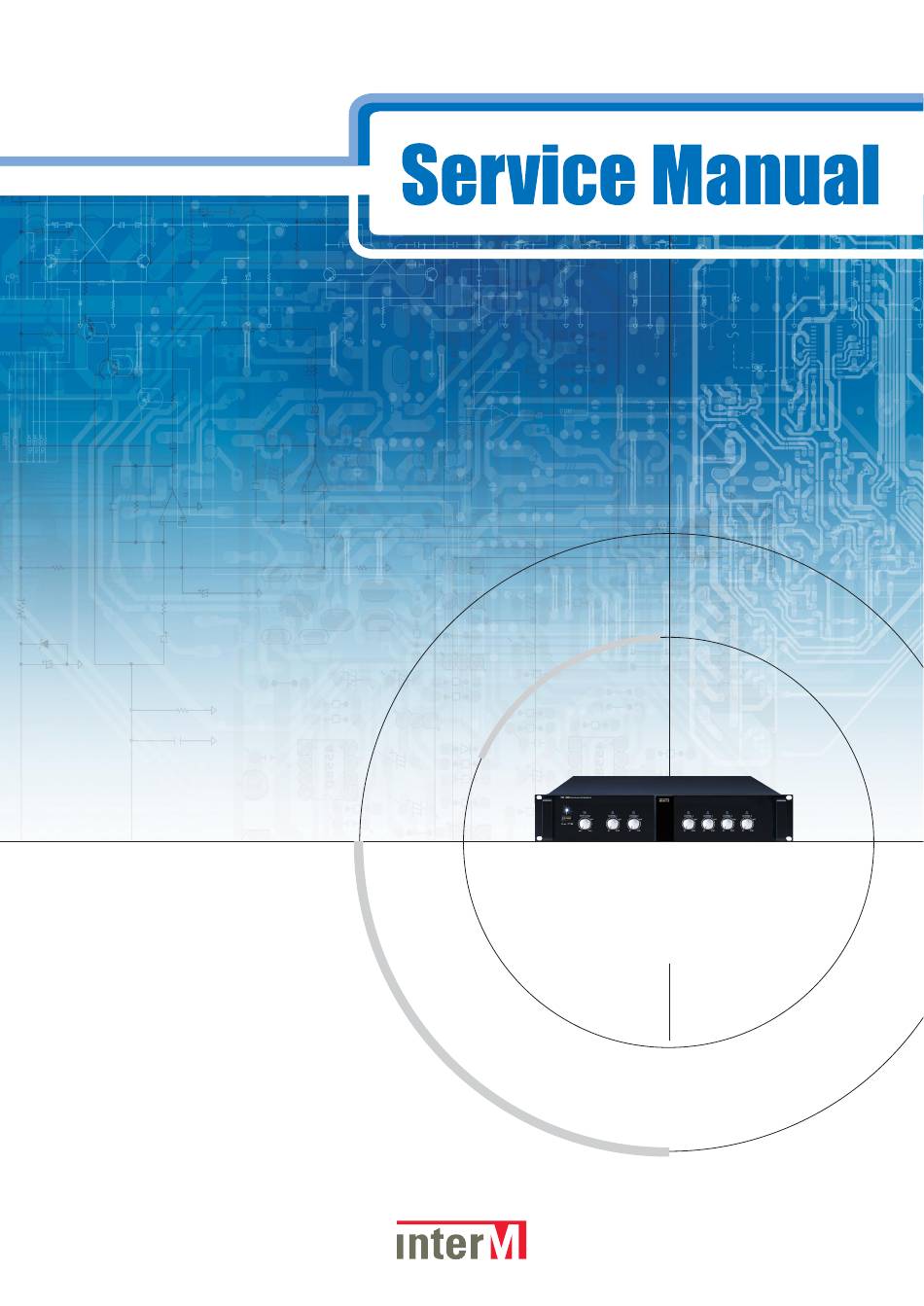

- Page 1 Program Distributor PO-606...
-
Page 2: Table Of Contents
CONTENTS Specifications ................. 1 Electrical Parts List ................ 2 Top and Bottom View of P.C. Board ..........3 Block Diagram ................5 Schematic Diagram ............... 6 Exploded View of Cabinet Chassis/Mechanical Parts List ..... 7... -
Page 3: Specifications
SPECIFICATIONS PO-606 Channels 1 Input, 6 Outputs Frequency Response 20Hz-20kHz(±3dB) T.H.D at 1kHz, Rated Output Less than 0.1% Input Sensitivity/Impedance 1V/600Ω Balanced Output Level/Impedance 3V/600Ω Balanced Batter than 70dB Operation Temperature -10°C ~ +40°C 100–120VAC or 220–240VAC; 50/60Hz Power Source... -
Page 4: Electrical Parts List
ELECTRICAL PARTS LIST Ref. Part No. Description Value MAIN B’D PO-606_AXIAL R118,218,,618,718, R518,418,318 104256 RES,MF,1.5K,1/5W,5%,AXN,TA 1.5K R708,712,804 104235 RES,MF,100,1/5W,5%,AXN,TA 100Ω R705,703,711,706,710,807,106,105,103 R203,205,206,306,305,303,403,405,406 R506,505,503,603,605,606,315,215,115 R102,202,302,402,502,602,415,515,615 R704,715,808 104237 RES,MF,10K,1/5W,5%,AXN,TA R702,316,216,116,416,516,616,701 104282 RES,CF,22K,1/5W,5%,AXN,TA R806,805 104332 RES,MF,4.7K,1/5W,5%,AXN,TA 4.7K R813 104310 RES,MF,330K,1/5W,5%,AXN,TA 330K R612,512,412,312,212,112,719 104234 RES,MF,10,1/5W,5%,AXN,TA 1 R110,111,210,211,310,311,410,411,510 104280... -
Page 5: Top And Bottom View Of P.c. Board
TOP & BOTTOM VIEW OF P.C BOARD... - Page 6 TOP & BOTTOM VIEW OF P.C BOARD...
-
Page 7: Block Diagram
BLOCK DIAGRAM... -
Page 8: Schematic Diagram
SCHEMATIC DIAGRAM... -
Page 9: Exploded View Of Cabinet Chassis/Mechanical Parts List
EXPLODED VIEW OF CABINET & CHASSIS/ MECHANICAL PARTS LIST... - Page 10 MADE IN KOREA 2008. 9 90...
