- Page 1 Operation anual Public ddress mplifier P -935N...
- Page 2 Welcome personal welcome to you from the management and employees of Inter-M ll of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
PUBLIC DDRESS MPLIFIER Contents Contents Unpacking ............................2 Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Front Panel ............................4 Rear Panel ............................5 Connecting Speakers ........................7 Connecting Speakers ..............8 (US /C N D & ssociated Version) pplications ............................9 Block Diagram ..........................10 Specifications ..........................11 Dimensions ...........................12 Service Procedures............................13... -
Page 4: Unpacking
PUBLIC DDRESS MPLIFIER Unpacking Unpacking lthough your P -935N is neither complicated nor difficult to operate, we recommend you to take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. s with most electronic devices, we strongly recommend you retain the original packaging. -
Page 5: Features
PUBLIC DDRESS MPLIFIER Features Features - HIGH POWER, LOW DISTORTION 35W of RMS power, with less than 3% THD. - VERS TILE ND CONVENIENT Three mixable inputs: MIC1, MIC2/ UX, MIC3/CD/S TELLITE and TELEPHONE. - CONFIGUR BLE Mic 2/ ux and Mic 3/CD/S TELLITE are individually selectable. - TELEPHONE INPUT Telephone input for connection with telephone system. -

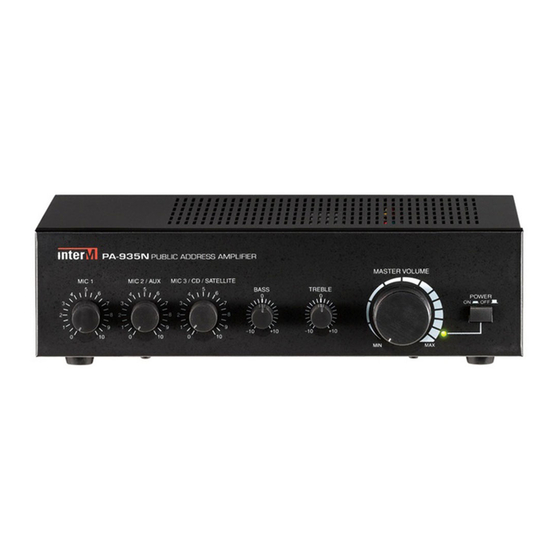

Page 6: Front Panel
PUBLIC DDRESS MPLIFIER Front Panel Front Panel 1. MIC VOLUME 1 This knob provides continuous control of the volume of Mic 1 signal. 2. MIC VOLUME 2/ UX This knob provides continuous control of the volume of MIC2 or UX signal. 3. -
Page 7: Rear Panel
PUBLIC DDRESS MPLIFIER Rear Panel Rear Panel AC INPUT SPEAKER OUTPUT 230V~ 50/60Hz COM 12V 17V 70V 100V 4Ω 8Ω 140Ω 286Ω PA-935N CLASS 2 WIRING MADE IN KOREA PUBLIC ADDRESS AMPLIFIER MIC 3 MIC 1 INPUT INPUT TELEPHONE INPUT... - Page 8 PUBLIC DDRESS MPLIFIER 16. MIC2 / UX SELECTOR SWITCH This switch is used to select between MIC2 and UX. MIC2 input becomes effective on this switch being set right side,. The other hand, UX input become effective on this switch being set left side. 17.
-
Page 9: Connecting Speakers
PUBLIC DDRESS MPLIFIER Connecting Speakers Connecting Speakers Before connecting speakers to your P -935N unit, be sure to disconnect the C power cable. Make certain that the total impedance should not be less than the rated impedance indicated. For 4 low-impedance speakers, connect in parallel, with the negative (-) connectors to the COM terminal and the positive (+) connectors to the 4 terminal. -
Page 10: Connecting Speakers
PUBLIC DDRESS MPLIFIER Connecting Speakers Connecting Speakers (US /C N D & ssociated Version) Before connecting speakers to your P -935N unit, be sure to disconnect the C power cable. Make certain that the total impedance should not be less than the rated impedance indicated. -
Page 11: Pplications
* This Picture is applied in case of EC and J P N Version. AC INPUT SPEAKER OUTPUT 230V~ 50/60Hz COM 12V 17V 70V 100V 4Ω 8Ω 140Ω 286Ω PA-935N CLASS 2 WIRING MADE IN KOREA PUBLIC ADDRESS AMPLIFIER MIC 3 MIC 1 INPUT... -
Page 12: Block Diagram
PUBLIC DDRESS MPLIFIER Block Diagram Block Diagram P -935N... -
Page 13: Specifications
PUBLIC DDRESS MPLIFIER Specifications Specifications P -935N Rated Output Power (at 1kHz, T.H.D : 3%) 35W (RMS) Frequency Mic 1, 2, 3 150Hz-12kHz Response 80Hz-15kHz (+1,-3dB) CD/Satellite 80Hz-15kHz Telephone 330Hz-3kHz T.H.D (at Rated Output -5dB, 1kHz) Less Than 1% Mic 1, 2, 3 Better than 60dB ux, CD/Satellite, Telephone Better than 75dB... -
Page 14: Dimensions
PUBLIC DDRESS MPLIFIER ※ DIMENSIONS P -935N... -
Page 15: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the US ) or the authorized Inter-M Distributor for your specific country or region. - Page 16 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
