Related Manuals for Inter-m PA-2000A
Summary of Contents for Inter-m PA-2000A
- Page 1 PA-6000A_E 합본-1 2008.8.18 11:14 AM 페이지 1 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
-
Page 2: Operation Manual
PA-6000A_E 합본-1 2008.8.18 11:14 AM 페이지 2 Operation Manual Public Address Amplifier PA-2000A/4000A/6000A PA-4000A/6000A PA-2000A... - Page 3 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 4: Table Of Contents
Installation Environment............................2 Important Safety Instructions......................2 Features ............................3 Accessories.............................3 Operation ............................3 Front Panel ............................4 Rear Panel ............................6 Connecting Speakers ........................9 Applications ..........................10 Block Diagrams ..........................11 Specifications ..........................12 Service Procedures............................13 Schematic .............................13 Parts List ............................13 Variations and Options .......................13 Warranty ............................13 PA-2000A/4000A/6000A... -
Page 5: Unpacking
PUBLIC ADDRESS AMPLIFIER Unpacking Unpacking Although your PA-2000A/4000A/PA-6000A is neither complicated nor difficult to operate, we recommend you take a few minutes to read this brief manual and familiarize yourself with the important information regarding product features, setup and operation. -
Page 6: Features

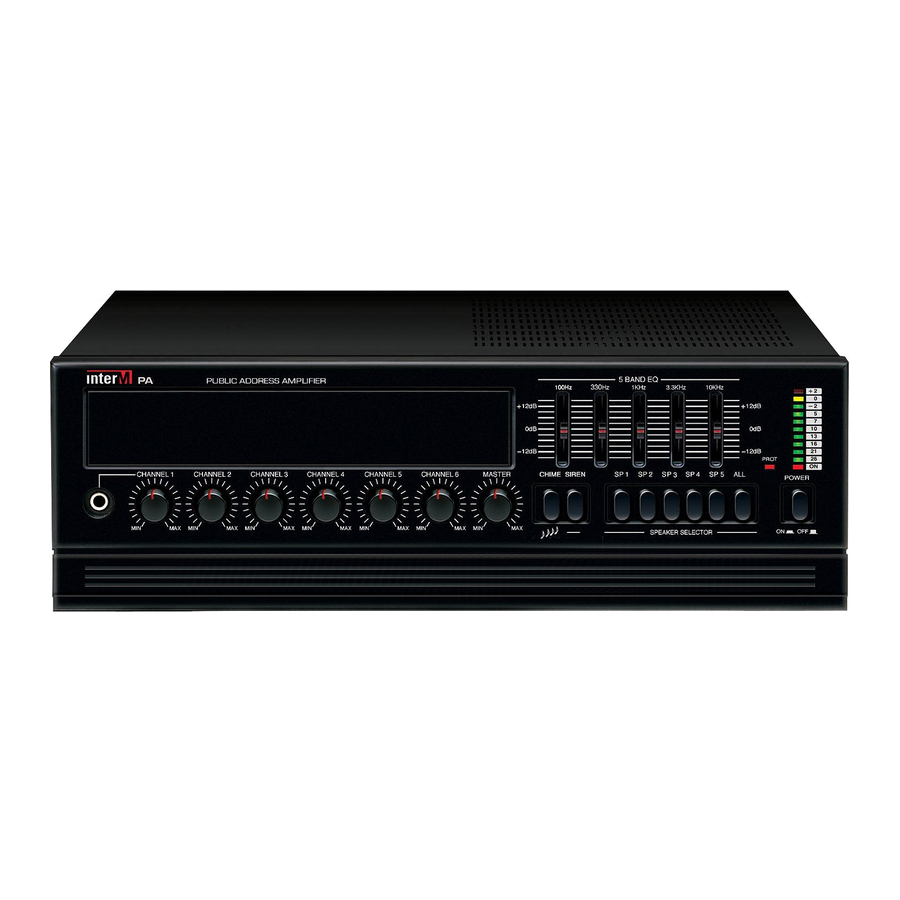

PUBLIC ADDRESS AMPLIFIER Features Features - A PUBLIC ADDRESS AMPLIFIER WITH RATED OUTPUT OF 60W(PA-2000A), 120W(PA-4000A) or 240W(PA-6000A) - SIX INPUT CHANNELS WITH ADJUSTABLE INPUT SENSITIVITY AND INDIVIDUAL LEVEL CONTROLS Rear-panel level controls adjust each input channel from Mic to Aux level. -
Page 7: Front Panel
This knob provides continuous control of the volume of Channel 6 or Phono Input, as selected by the associated rear panel switch. 7. MASTER VOLUME This knob provides continuous control of the overall volume of the amplifier’s output signal. PA-2000A/4000A/6000A... - Page 8 These switches are used to select output to any combination of up to five individual speakers. 11. POWER SWITCH Pressing this switch turns the unit on, as indicated by the Power LED above the switch. Pressing it again turns the unit off. PA-2000A/4000A/6000A...
-
Page 9: Rear Panel
PA-6000A_E 합본-1 2008.8.18 11:14 AM 페이지 9 PUBLIC ADDRESS AMPLIFIER Rear Panel Rear Panel PA-2000A/4000A PA-6000A 1. AC POWER INLET Connect this inlet to your AC outlet. 2. VOLTAGE SELECTOR SWITCH (PA-6000A Only) The PA-6000A has a multi-tap power transformer which allows it to be used around the world. Before connecting the unit to AC power, confirm that the voltage selector switch setting on the rear of the unit is set to the proper position and the fuse is the correct rating as listed on the rear of the system. - Page 10 COM terminal and either the 4Ω or 8Ω terminal, this switch is non-functional. Impedance Ratings EC & Associated, JAPAN Version USA/CANADA & Associated Version Model 100 V 70 V PA-2000A 165Ω 83Ω 83Ω 10.4Ω PA-4000A 83Ω...
- Page 11 10. SPEAKER OUTPUT TERMINAL These terminals connect up to five speakers in 4Ω, 8Ω or High Impedance mode. Impedance/Output Voltage Model EC & Associated, JAPAN Version USA/CANADA & Associated Version PA-2000A 4Ω/15.5V 8Ω/22V 83Ω/70V 165Ω/100V 4Ω/15.5V 8Ω/22V 10.4Ω/25V 83Ω/70V PA-4000A 4Ω/22V...
-
Page 12: Connecting Speakers
Connecting Speakers Connecting Speakers Before connecting speakers to your PA-2000A/4000A/6000A unit, be sure to disconnect the AC power cable. Make certain that the total impedance is not less than the rated impedance indicated. For 4Ω low-impedance speakers, connect in parallel, with the negative (-) connectors to the COM terminal and the positive (+) connectors to the 4Ω... -
Page 13: Applications
PA-6000A_E 합본-1 2008.8.18 11:14 AM 페이지 13 PUBLIC ADDRESS AMPLIFIER Applications Applications CD-610 or CD-660 PC-9335AD MIXER PC-9335AD PA-2000A/4000A/6000A... -
Page 14: Block Diagrams
PA-6000A_E 합본-1 2008.8.18 11:14 AM 페이지 14 PUBLIC ADDRESS AMPLIFIER Block Diagrams Block Diagrams PA-2000A/4000A PA-6000A PA-2000A/4000A/6000A... -
Page 15: Specifications
PA-6000A_E 합본-1 2008.8.18 11:14 AM 페이지 15 PUBLIC ADDRESS AMPLIFIER Specifications Specifications PA-2000A PA-4000A PA-6000A Rated Output (RMS) 120W 240W Frequency CH 1~CH 6 120Hz-10kHz Response Telephone In 330Hz-3.3kHz Link In 80Hz-12kHz Amp In 60Hz-15kHz T.H.D CH 1~CH 6, Phono... -
Page 16: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region.
