PA-2100M/2200M
MIC 1
MIC 2
MIC 3
MIN
MAX
MIN
MAX
MIN
MIN
MAX
MAX
CD
DECK
AUX 1
AUX 2
10
0dB
10
MIN
MAX
MIN
MAX
MIN
MAX
MIN
MAX
CD/MP3 Cassette Amplifier
REC LEVEL
12
5
REC VOLUME
MIN
EJECT
REW
PLAY
100Hz
300Hz
1KHz
3KHz
10KHz
MASTER
10
CHIME
0dB
10
MIN
MAX
MIN
GRAPHIC EQUALIZER
0
021
OC03
OC03
B370031
PROT
0
3
6
dB
4dB
0dB
3dB
7dB
10dB
MAX
13dB
24dB
REC PAUSE
POWER
FF
STOP
PLAY
SPEAKER
A
B
POWER
ON
OFF
MAX
Advertisement
Table of Contents
Related Manuals for Inter-m PA-2100M
Summary of Contents for Inter-m PA-2100M

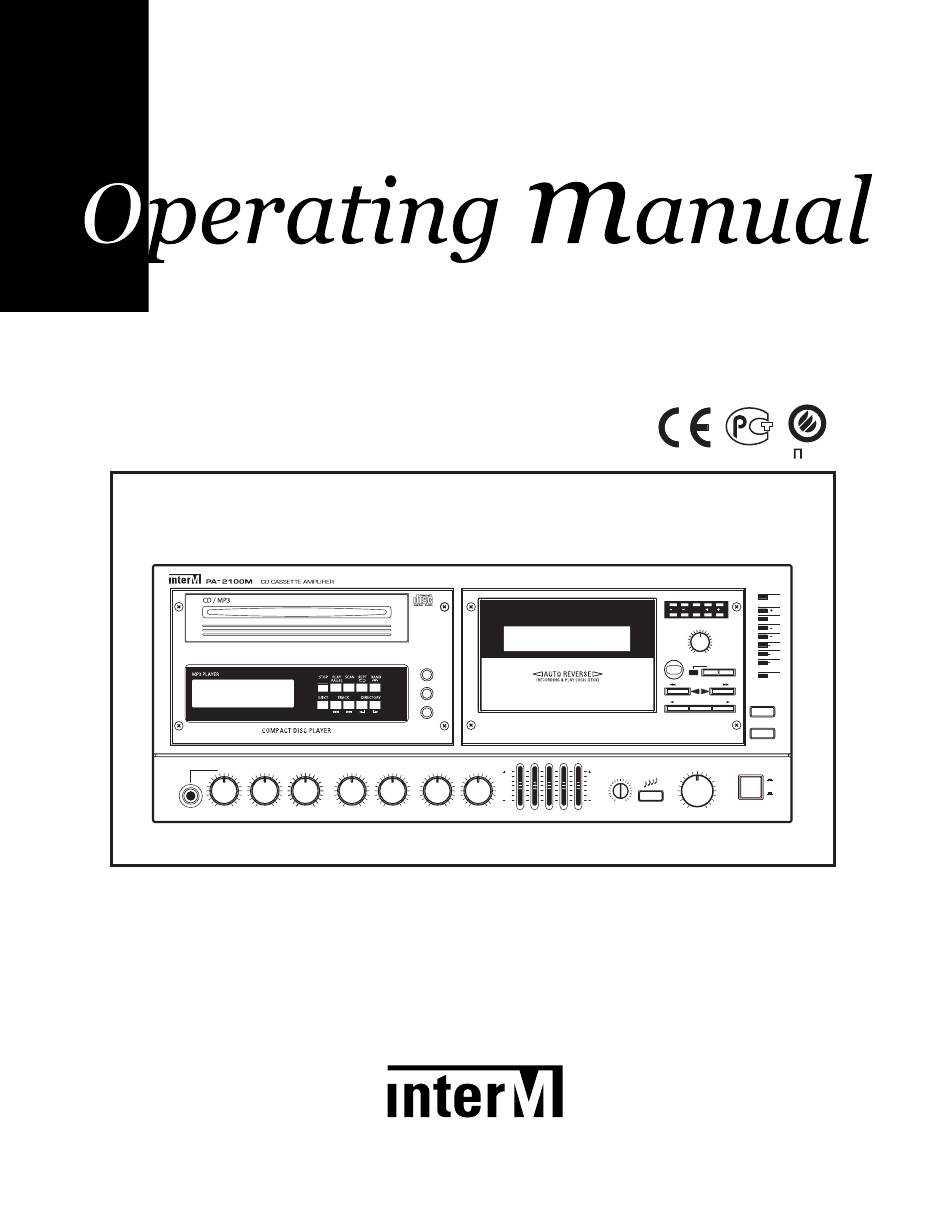

- Page 1 OC03 OC03 B370031 PA-2100M/2200M CD/MP3 Cassette Amplifier PROT REC LEVEL REC VOLUME 10dB 13dB EJECT 24dB REC PAUSE POWER PLAY STOP PLAY SPEAKER 100Hz 300Hz 1KHz 3KHz 10KHz MASTER POWER MIC 1 MIC 2 MIC 3 DECK AUX 1 AUX 2...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning..........................1 Unpacking ..........................2 Short Form Instructions ......................2 Installation Environment..........................3 Important Safety Instructions ....................3 Description ..........................4 Features ..........................4 Accessories...........................4 Front Panel ..........................5 Rear Panel ..........................11 Connections ..........................13 Applications ..........................14 Block Diagram ........................15 Specifications ........................16 Service Procedures .........................17 Schematic ...........................17 Parts List ..........................17 Variations and Options ......................17... -
Page 3: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Unpacking
AC source. 6. Depress the power switch to the ON position. The power switch will illuminate. 7. The product is ready for operation. Slowly increase the master and input volume controls to the desired operating level. PA-2100M/2200M... -
Page 5: Installation
S3125A S3125A PA-2100M/2200M... -
Page 6: Description
CD/MP3 CASSETTE AMPLIFIER Description Description - PA-2100M/2200M A CD/MP3, cassette, mixer/amp capable of delivering 100/200 Watts of power. Features Features - CD/MP3 Player - Cassette deck with play and record capabilities - 4 ohm, 70 Volt, or 100 Volt outputs... -
Page 7: Front Panel
This control adjusts the signal level of the Compact Disc (CD/MP3) player relative to the other inputs. 5. DECK VOLUME CONTROL This control adjusts the signal level of the cassette deck relative to the other inputs. 6. AUXILIARY VOLUME CONTROLS These controls determine the signal level of the Auxiliary inputs. PA-2100M/2200M... - Page 8 Both outputs may be used at the same time, but caution should be used so that you do not overload the capability of the amplifier. If both “A” and “B” are switched OFF no signal will be present on the speaker output(s). PA-2100M/2200M...
- Page 9 Depress this button once to repeat the currently playing song. Depress and hold for more than one second, to repeat all the songs in the current MP3 directory. Depress again to repeat all songs on the disc. Depress again to release Repeat function. PA-2100M/2200M...
- Page 10 MP3 disc. Depress this button to move to the previous directory 11. DIRECTORY (FORWARD) This function is available only for MP3 discs. It allows for movement between file directories on an MP3 disc. Depress this button to move to the next directory. PA-2100M/2200M...
- Page 11 Depress this button to prepare to record. Depress the pause button to begin the recording process. Recordings may only be made onto cassette tapes that have the recording tabs in place. 5. PAUSE BUTTON Depress this button to temporarily stop playback or recording activity. PA-2100M/2200M...
- Page 12 Depressing this button will select the forward track side of the tape for commands regarding tape travel. 9. STOP BUTTON Depressing this button will stop all deck related functions. 10. B SIDE PLAY BUTTON Depressing this button will select the reverse side tracks of the tape for commands regarding tape travel. PA-2100M/2200M...
-
Page 13: Rear Panel
DE MEME TYPE. RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR. SPEAKER OUTPUT Ω IMPEDANCE SELECTOR Ω Ω 70V(49 100V(100 MODEL NO. PA-2100M CD CASSETTE AMPLIFIER CHIME OC03 MADE IN KOREA PRE OUT AMP IN AUX 2 AUX 1 AC INPUT... - Page 14 Connect this product to an appropriate AC power source using the supplied Universal AC Power Cord. 8. FUSE This fuse protects the amplifier by interrupting the AC Mains Supply when the amplifier operates abnormally due to overload or malfunction. Replace only with the same fuse type. Model PA-2100M PA-2200M VOLTAGE 250V 250V FUSE RATING 2.5A...
-
Page 15: Connections
CD/MP3 CASSETTE AMPLIFIER Connections Connections - FOR 4Ω TERMINAL 4Ω 8Ω 8Ω SPEAKER - HIGH IMPEDANCE 100V: PA-2100M: 100Ω 70V: PA-2100M: 49Ω PA-2200M: 50Ω PA-2200M: 24.5Ω HIGH IMPEDANCE SPEAKER PA-2100M/2200M... -
Page 16: Applications
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR. DE MEME TYPE. SPEAKER OUTPUT Ω IMPEDANCE SELECTOR Ω Ω 70V(49 100V(100 MODEL NO. PA-2100M CD CASSETTE AMPLIFIER CHIME OC03 MADE IN KOREA PRE OUT AMP IN AUX 2 AUX 1 AC INPUT... -
Page 17: Block Diagram
CD/MP3 CASSETTE AMPLIFIER Block Diagram Block Diagram PA-2100M/2200M... -
Page 18: Specifications
CD/MP3 CASSETTE AMPLIFIER Specifications Specifications - ELECTRICAL Rated Output (RMS)....................PA-2100M: 100W .........................PA-2200M: 200W Speaker Output/Impedance PA-2100M ...............100W: 20V/4Ω, 70V/49Ω, 100V/100Ω PA-2200M ..............200W: 28.3V/4Ω, 70V/24.5Ω, 100V/50Ω Input Sensitivity/Impedance MIC 1, 2, 3 ........................-60dB/20k AUX 1, 2........................-10dB/20k AMP IN ...........................0 dB/10k Frequency Range MIC 1, 2, 3 .......................100Hz-12kHz... -
Page 19: Service
To obtain specific warranty information and available service locations contact Inter-M directly(in Korea or the USA) or the authorized Inter-M Distributor for your specific country or region. PA-2100M/2200M... - Page 20 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
