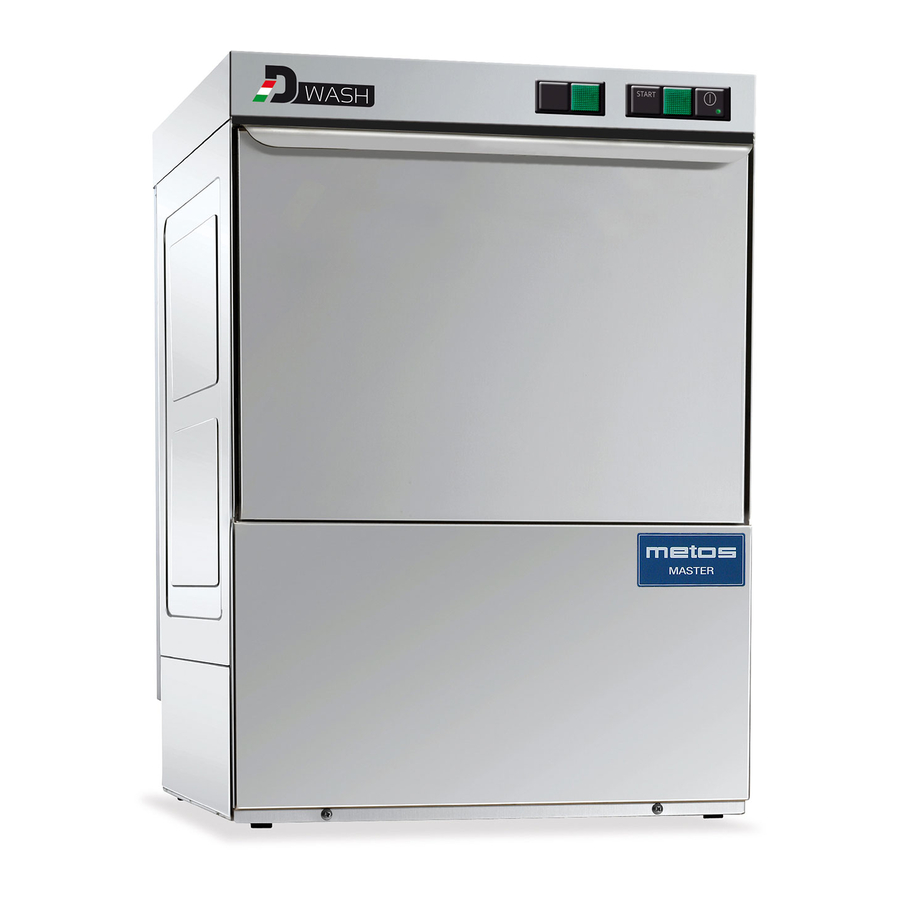

- Page 1 DISHWASHER DWASH 50 Installation and Operation Manual Original Instructions Ed. 02 - 04/2015 4246046, 4246047...
-
Page 2: Table Of Contents
TRANSLATION OF THE ORIGINAL INSTRUCTIONS SUMMARY Page INSTRUCTIONS INSTALLER SECTION 1. MACHINE INSTALLATION 1.1 Reception of the appliance 1.2 Water connection 1.3 Electrical connection 1.4 Temperature adjustment 1.5 Rinse aid dispenser operation 2. 2. DETERGENT DISPENSER RETROFIT 2.1 Electrical connection 2.2 Water connection 2.3 Dispensing the detergent 3. -
Page 3: Instructions
INSTRUCTIONS This instruction booklet must be kept with the dishwasher for future consultation. If the dishwasher is sold or transferred to another user, make sure the booklet always goes with the appliance so that the new owner can have the necessary information on operation and the relative instructions. - Page 4 • The user must not carry out any repair and/or maintenance operations. In any case contact qualifi ed personnel. • Servicing of this dishwasher must be performed by authorized personnel. N.B.: Only use original replacement parts. Otherwise the product warranty is invalidated and the manufacturer is no longer responsible.
- Page 5 page 3...
-
Page 6: Installer Section
INSTALLER SECTION ATTENTION: At the end of installation make sure to remove the parts of this booklet relevant to the in- staller, for future consultation. 1. MACHINE INSTALLATION Reception of the appliance After removing the packing, ensure that the appliance has not been damaged in transport. If it has, inform the retailer. -
Page 7: Temperature Adjustment
INSTALLER SECTION WARNING: check very carefully if the “ground connection” of the machine, is properly sized and fully effi cient, and that not too many units are connected on it. An undersized or poor “ground connection” might lead to corrosion and/or pitting effect on the stainless steel plates, even to perforation. -
Page 8: Dispensing The Detergent
INSTALLER SECTION c) Correctly mount the injector using the appropriate fi xtures. d) Connect the suction tube to the suction attachment of the dispenser (see image 3 point A). e) Connect the delivery tube to the other attachment of the dispenser, and the delivery fi... -
Page 9: Dataplate
INSTALLER SECTION Dataplate Code DWXXXX.YYYY CL/Part Model DESCRIPTION S/N DWXxxxxxxx Type ..400V 3N 50HZ ANNO PROD.: 2013 3500W 500W IPX3 Pressione Dinamica alimentazione idrica Pression dynamique arriveè d'eau 200-500 kPa Dynamic pressure water supply Dynamischer Druck asserreinlauf MADE IN ITALY Pressione dinamica vapore saturo Temperatura massima acqua in ingresso Pression dynamique vapeur satueèè... -
Page 10: User Section
USER SECTION 4. CONTROL PANEL AND RELATIVE SYMBOLS CONTROLS INDICATORS Main switch 0-1 Washing cycle indicator Cycle START button Temperature indicator Manual empty button (optional) 5. OPERATION • Check that the fi lter is correctly fi tted in its seat (image 5-6). The fi... -
Page 11: Use Of Detergent
USER SECTION Some foods, such as carrots, tomatoes, and others, may contain some natural dyes sub- stances, that in large amounts, can alter the crockery and plastic parts colors. Any discoloration does not mean that the plastic is not heat resistant. Crockery and cutlery not suitable for dishwasher Not suitable for dishwasher: •... -
Page 12: Maintenance
USER SECTION 6. MAINTENANCE Regular Maintenance WARNING: The machine is not protected against water jets, therefore do not use pressure cleaning systems. Contact your cleaning products retailer for detailed instructions on the methods and products to use for periodic sanitizing of your appliance. DO NOT use bleach or chlorine-based detergents for cleaning the appliance. -
Page 13: Environmental Features
USER SECTION 8. ENVIRONMENTAL FEATURES Packing The packing consists of the following: • A wood pallet • A nylon bag (LDPE) • Multi-layered cardboard • Polyurethane foam (PS) • Polypropylene support (PP). We kindly advise you to dispose of the above-mentioned material in accordance with current environmental regulations. -
Page 14: Troubleshooting
USER SECTION 10. TROUBLESHOOTING Type of Problem Possible Causes Cure The appliance does not The main switch is turned off Turn on the switch start The appliance does not The water tap is closed Open the water tap draw water The rinsing arm nozzles or the Clean the rinsing arm nozzles, the pipes and the electro- electrovalve fi... - Page 15 USER SECTION Type of Problem Possible Causes Cure During wash cycle the Water from the previous day has Empty the tub and refi ll it machine stops and draws not been replaced water The tub water temperature is too Have the Technical Assistance service check the thermostat high and the pressure switch Faulty pressure switch...
- Page 16 Metos Oy Ab Ahjonkaarre, FI-04220 Kerava, Finland tel. +358 204 3913 www.metos.com...
