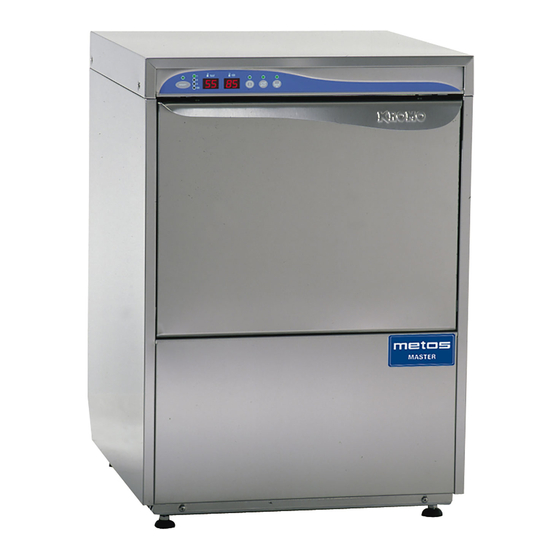

- Page 1 DISHWASHER TYPE: Metos Master LUX 60-EL Accessories BOOSTER PUMP DVGW DRAIN PUMP Installation and Operation Manual S/N: Rev.: 1.0...
- Page 2 Thank you for choosing our appliance. The installation, use and maintenance instructions given in this manual have been prepared to ensure the long life and correct operation of your appliance. Follow these instructions carefully. We have designed and manufactured this appliance according to the latest technological developments.
-
Page 3: Table Of Contents
SUMMARY Page INSTRUCTIONS INSTALLER SECTION 1. MACHINE INSTALLATION Receiving the product Water connection Electrical connection 1.4 RINSE AID dispenser operation 1.5 Detersive dispenser installation CONTROL PANEL AND RELATIVE SYMBOLS Functions of keys during normal operation: Functions of keys during programming. 3. - Page 4 SUMMARY Page 17. THE ENVIRONMENT 17.1 Packing 17.2 Disposal 18. ECOLOGY 18.1 Instructions for optimal use of energy, water and additives 19. ALARM AND FAULT DETECTION AND DISPLAY 19.1 Detection 19.2 Signalling 19.3 Cancelling alarms or faults 19.4 Boiler overtemperature alarm 20.
-
Page 6: Instructions
INSTRUCTIONS This instruction booklet must be kept with the dishwasher for future consultation. If the dishwasher is sold or transferred to another user, make sure the booklet always goes with the appliance so that the new owner can have the necessary information on its operation and the relative instructions. -
Page 7: Installer Section
INSTALLER SECTION ATTENTION: At the end of installation make sure to remove the parts of this booklet relevant to the installer, for future consultation. 1. MACHINE INSTALLATION 1.1 Receiving the product After unpacking, make sure the appliance has not been damaged due to transport. Otherwise, report the anomaly to the dealer. -
Page 8: Rinse Aid Dispenser Operation
INSTALLER SECTION N.B.: for machines with 400Vac3N, H05RN-F or H07RN-F type cables must be used, or replace them with others conforming to the standards in the country where the dishwasher is installed. The dealer/importer/ installer must adapt the power cable insulation class according to the work environment, in conformity with current Technical Standards. - Page 9 INSTALLER SECTION 10805 10798/B fig. 3 10805 10805 12525 10807 15058 10806 Cod. 10799 Cod. 10798 THE DISPENSERS ARE FACTORY-SET FOR DRAWING 5 CM, FOLLOWING A FUNCTIONAL CHECK DURING THE TESTING PHASE. THIS VALUE MUST ALWAYS BE MODIFIED ACCORDING TO THE TYPE OF RINSE AID AND THE HARDNESS OF THE WATER.
-
Page 10: Detersive Dispenser Installation
INSTALLER SECTION 1.5 Detersive dispenser installation Electrical connection: See the wiring diagram attached to the dishwasher and follow the instructions on the diagram. Water connection: a) A Ø 12 hole must be made in the back of the dishwasher. In some dishwashers the hole is already available, and closed with a plastic plug. -
Page 11: Control Panel And Relative Symbols
INSTALLER SECTION 2. CONTROL PANEL AND RELATIVE SYMBOLS The purpose of these specifications is to describe card operation. To simplify the description of the various functions, the layout of the control panel and the various functions assumed by the keys according to the function mode is given below. -
Page 12: Machine Programming
INSTALLER SECTION 4. MACHINE PROGRAMMING This section applies to the electronic version with conventional cycle standard and the total water change (CLEAN WATER) electronic version. N.B.: the conventional cycle version is fitted standard with a flowswitch that controls the presence of supply water and with which, entering programming, a constant consumption of water in the rinse phase can be defined regardless of the supply pressure. - Page 13 INSTALLER SECTION Parameter programming - pushbutton panel code 50580 Clean Cycle Number Parameter Min. Max. Unit of Measure Notes Water standard Wash time cycle 1 step 5s Wash time cycle 2 120s 120s step 5s tab. 2 Wash time cycle 3 180s 180s step 5s...
-
Page 14: Temperature Adjustment
INSTALLER SECTION 5. TEMPERATURE ADJUSTMENT Boiler temperature adjustment always has priority over that of the tank, and the tank and boiler cannot be switched on at the same time. To reduce the electrical stress of the loads and output relay contacts, delays and minimum activation times are entered. -
Page 15: Drain Pump Operation (Optional On Standard Machines)
INSTALLER SECTION 11. DRAIN PUMP OPERATION (optional on standard version machines) Draining is activated manually or automatically. For standard version machines the presence of the drain pump is selectable from programming, whereas in (CLEAN WATER) machines the pump is always present. The maximum height of the drain must not be above 0.80m (see fig. -
Page 16: Pressure Increase Pump (Optional)
INSTALLER SECTION 12. PRESSURE INCREASE PUMP (optional) Following repeated alarms (flowrate alarm 9 - chap. 19.2) or after periods of dishwasher inactivity, make sure the supplementary pressure increase pump rotates freely. To do this, operate by inserting a screwdriver in the special notch on the motor shaft, ventilation side (see fig. - Page 17 NOTES page 43...
-
Page 18: Wash Cycle Selection
INSTALLER SECTION AND USER INFORMATIONS 13. WASH CYCLE SELECTION Cold Rinse fig. 6 A: Cycle Start - Cycle Stop - Cycle Selection 1-2-3 ∞ ∞ ∞ ∞ ∞ , Self-cleaning; B: On/Off (Stand-By) - Cycle Stop - Alarm Reset; C: Regeneration (optional) - Cold rinse selection (when provided for); D: Drain (when provided for);... -
Page 19: Standard Function Cycle
INSTALLER SECTION AND USER INFORMATIONS 14.2 Standard function cycle The cycle sequence is as follows: • lighting of selected cycle LED; • activation of wash pump for the time set in programming; Note: the wash time can be increased if the thermostop function is activated, which waits for the boiler temperature to reach the set temperature before the cycle goes to the next phases. -
Page 20: Operation
USER SECTION 15. OPERATION • Insert the overflow pipe in the special seat inside the tank (standard version only). Make sure all the filters are properly fitted in their seats. The filters must be cleaned every 30-40 wash cycles and whenever necessary. •... -
Page 21: Compliance With The H.a.c.c.p. And Hygiene Standards
USER SECTION 15.3 Compliance with the H.A.C.C.P. and hygiene standards. • The machines are equipped with temperature gauges that indicate the boiler and tank temperatures. Make sure to wait until the tank and boiler temperatures are reached. • Carefully remove any residuals from the dishes so as not to clog the filter, nozzles and tubing. -
Page 22: Regeneration Function (Optional)
USER SECTION 15.6 Regeneration function (optional) Regeneration is carried out after the flashing signal of the regeneration key indicator (C) (see fig. 6). The optional regeneration is not allowed in the following conditions: • during programming; • during the wash cycle; •... -
Page 23: Maintenance
USER SECTION 16. MAINTENANCE ATTENTION: The machine is not protected against pressure water jets, therefore do not use such cleaning systems on the cabinet. It is also advisable to contact cleaning product dealers for detailed information on methods and products for periodical sanitizing of the machine. Do not use bleach or chlorine-based detersives for cleaning. -
Page 24: The Environment
USER SECTION 17. THE ENVIRONMENT 17.1 Packing The packing consists of the following: • a wooden pallet; • a nylon (LDPE) bag; • a multilayer cardboard box; • polystyrene foam (PS); • polypropylene (PP) straps. Please dispose of the materials listed above, according to the current regulations. 17.2 Disposal The use of the WEEE Symbol indicates that this product may not be treated as household waste. -
Page 25: Alarm And Fault Detection And Display
USER SECTION AND INSTALLER INFORMATIONS 19. ALARM AND FAULT DETECTION AND DISPLAY 19.1 Detection The following faults are managed and displayed: • sensors: when they are in short-circuit or interrupted, or when the temperatures measured are below 0°C or above 125°C; •... - Page 26 USER SECTION AND INSTALLER INFORMATIONS Signaling faults - pushbutton panel code 50580 TYPE OF FAULT FAULT CODE CURE Faulty boiler sensor Replace sensor Faulty tank sensor Replace sensor table 3 Cock closed or water supply Water load failure Check sensor or heating element Boiler heating failure Call Technical Assistance Check sensor or heating element.
-
Page 27: Troubleshooting
USER SECTION AND INSTALLER INFORMATIONS 20. TROUBLESHOOTING Type of problem Possible causes Cure The machine does not start Main switch turned off Turn switch on The machine does not load Water supply cock closed Open the water cock water Clean the spraying arm nozzles and the pipes. If the Spraying arm nozzles clogged machine is clean, check the salt or carry out regeneration more frequently... - Page 33 KROMO S.R.L. - VIA MESTRE, 3 - 31033 CASTELFRANCO VENETO (TV) ITALY - TEL. ++39-423-734580 - FAX ++39-423-734581 KONFORMITÄTSERKLÄRUNG CE DICHIARAZIONE DI CONFORMITA' CE DECLARACION DE CONFORMIDAD CE DECLARATION OF CONFORMITY CE DECLARAÇAO DE CONFORMIDADE CE DECLARATION DE CONFORMITE CE Il sottoscritto, legale rappresentante della azienda sopra indicata, dichiara che l'apparecchiatura: The undersigned, officer of the above-written company, hereby declares that the machine: Le soussigné, représentant légal désigné, déclare que l'appareil:...
