- Page 1 Instructions for Use and Maintenance HOOD TYPE MACHINE HOOD 130S 4246460, 4246462, 4246463, 4246464 IInstallation and Operation Manual COD.: 3100ES_U APPLICARE ETICHETTA Ed. 00 - 09/2010 MATRICOLA COD.: 3100ES_U Ed. 00 - 09/2010...
- Page 2 Thank you for choosing our machine. The instructions for installation, maintenance and use found on the following pages have been prepared to ensure a long life and perfect operation of your unit. Please, do follow the instructions carefully. We have designed and built this machine using the latest innovative technologies. Now you shall take good care of it.
-
Page 3: Table Of Contents
TRANSLATION OF THE ORIGINAL INSTRUCTION CONTENTS Page WARNINGS 1. MACHINE DESCRIPTION 1.1 Machine Description 1.2 Machine features 2. OPERATION 2.1 Control panel and relative symbols 2.2 Machine start-up 2.2.1 Start-up 2.2.2 Operation 2.2.3 Switching OFF 2.3 Detergent use 2.4 Rinse aid use 2.5 Drain pump system (optional) 2.6 Regeneration device (optional) WARNINGS... -
Page 5: Warnings
WARNINGS This instruction booklet must be kept with the machine for future consultation. If this ma- chine is sold or transferred to other users, make sure the booklet always goes with the unit so that the new owner can have all the necessary information on operations and all relevant instructions. -
Page 7: Machine Description

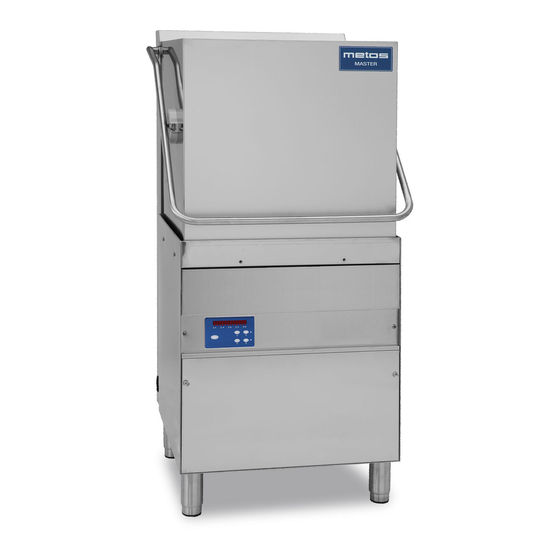

1. MACHINE DESCRIPTION Machine Description Hood Wall-hung main po- wer switch: at instal- lation serviceman supply and care, ac- cording to local laws Control panel Standard equipment: nr. 1 glasses rack Standard equipment: nr. 2 plates racks Capacity per plate rack: 12 soup plates or 18 fl at plates Max Ø... -
Page 8: Machine Features
To operate the Hood machine, 3 connections are needed: • Electrical; • Water supply; • Water drain. This is a cycle machine comprising a 55°C wash cycle with detergent, a 85°C rinse cycle with injection of rinse-aid in the boiler hull. 50x50 cm racks are used. The machine can be complemented with wash-tables, rinse-showers and dedicated waste collection systems. -
Page 9: Operation
2. 2. OPERATION 2.1 Control panel and relative symbols Pict. 1 A - Cycle light indicator B - Full tank indicator C - Salt shortage indicator D - Heating tank indicator E - Heating boiler indicator F - START key to start up cycle / Programming key G - Switching ON / OFF / Programming key H - Info (temperature / software review / key factory) I - Regeneration key (optional) / Decrease... -
Page 10: Operation
• Turn the button "G". The LED positioned below the “G” control, will light (green color) at the machine’s start (when the machine is on "STAND-BY" mode, the LED will turn red). The display "M" will read "FILLING WATER". FILLING WATER The display will read "HEATING", till wash-tank and boiler will reach the set temperatures. -
Page 11: Switching Off
LONG CYCLE INTENSIVE CYCLE XX CYCLE • Close the hood: the wash cycle starts automatically. The indicator "A" will start flashing. All wash-time long the display will read the wash-tank temperature and the boiler temperature. Below the temperatures indications line-bar is displayed to show the progression of the wash-cycle. -
Page 12: Detergent Use
Detergent use The detergent shall be the NO FOAM type, suitable for industrial dishwashers and must comply with the EN 60335-2-58/A11 norms. The use of good quality liquid detergents is recommended. The detergent shall be placed in the sump. Follow the manufacturer’s recommendations for chemical dosage, related to the local water hardness. -
Page 13: Regeneration Device (Optional)
Regeneration device (Optional only on standard machines) Should the machine be equipped with a water-softener circuit, this will be fully automatic. The circuit board is designed to call periodically for a 20 min. regeneration cycle (based upon the set water hardness). This regeneration cycle can also be activated by the user, should the rinse quality be dissatisfactory. -
Page 14: Warnings
WARNINGS • Do not slam the hood when opening and closing. • Do not put material or objects on the hood. • The machine has an IPX3 protection rating against accidental water splashes and is not protected against pressurized water jets. Pressure-cleaning systems shall, therefore, not be used on this machine. • Do not dip bare hands into water containing detergent. If this should occur, wash them immediately with plenty of water. Check the safety instructions on the detergent container. -
Page 15: Ecological Aspects
3. ECOLOGICAL ASPECTS Recommendations for optimal use of energy, water and additives Salt dosing A pre-set (by the manufacturer) quantity of salt is injected in the resins at each regeneration cycle. It is important to observe the number of regeneration cycles recommended in para- graph 2.6 "Regeneration device" in order to avoid salt spills or lime deposits. -
Page 16: Maintenance
5. MAINTENANCE Routine maintenance WARNING: The machine is not protected against pressurized water jets. Do not use pressure cleaning system against the machine. It is recommended to contact the seller of chemicals for proper cleaning instructions, in order to have detailed indications on methods and products for the correct perio- dical machine sanitation. -
Page 17: Extraordinary Maintenance - By Qualified Service Personnel
Push START button "F"; the display "M" will show "SELF-CLEANING". SELF-CLEANING An automatic cycle of 30 seconds will start, after this the machine will be in "STAND-BY" mode. STAND-BY • Shut the water valve. • Turned off the machine by switching the main power switch OFF. 5.2 Extraordinary Maintenance – by qualifi ed Service Personnel At least once per year, the machine should be supervised by qualifi ed Service Personnel: 1 Clean the solenoid-valve(s) fi lters. 2 Remove scale from the heating elements. -
Page 18: Machine Installation
6. MACHINE INSTALLATION Handling 6.1.1 Handling the product The machines must be handled strictly as shown in pict. 4 regarding the grip points indicated for lifting with a lift truck. Latch the machine in a way that secures no vibration or shocks during transportation. N.B.: Slinging with ropes not recommended. -
Page 19: Electrical Connection - Characteristics
6.2.2 Electrical connection - Characteristics The electrical connection to network shall be carried out in accordance to the local laws in force. Make sure that the supply voltage is the same as reported on the machine plate and that the network can stand the needed power absorption shown on the same plate. Make sure that the facility is equipped with efficient ground connection. -
Page 20: Electrical Connection
6.3.2 Electrical connection The electrical connection shall be carried out in accordance to the local laws in force. Moreover, the machine has a clamp at the back indicated by the symbol that is meant to connect the metal structure and masses among different apparatuses, to prevent electro-static electrical shocks. -
Page 21: Signals And Alarms
7. SIGNALS AND ALARMS The alarm messages are displayed, based upon their meaning. When on the “M” display the LED below the “I” key flashes a total regeneration is needed (only on machines equipped with optional water softener). When on the “M” display the “C” light flashes, the salt-container in the wash tank needs refill with salt (only on machines with optional water softener). When displaying "SHUT HOOD"... -
Page 22: Environmental Aspects
8. ENVIRONMENTAL ASPECTS Packaging Packaging is made of the following components: • a wooden pallet; • a nylon sack (LDPE); • a multi-layer carton; • polystyrene (PS) strips; • polypropylene (PP) banding. All above materials, shall be disposed and treated in accordance with the Local Laws in force. Disposal The symbol WEEE/RAEE used on this product indicates that it cannot be treated as domestic waste. -
Page 23: Troubleshooting
9. TROUBLESHOOTING Type of Problem Possible Causes Cure The machine does not turn Main switch not ON. Turn switch ON. The machine does not load Water valve shut. Open the hot and/or cold water valve. Rinse area nozzles or solenoid-valve Clean the rinse arm nozzles, conductors and solenoid-valve water. filter blocked and/or scaled with filter. Check that the water hardness is <10°f. limestone.
