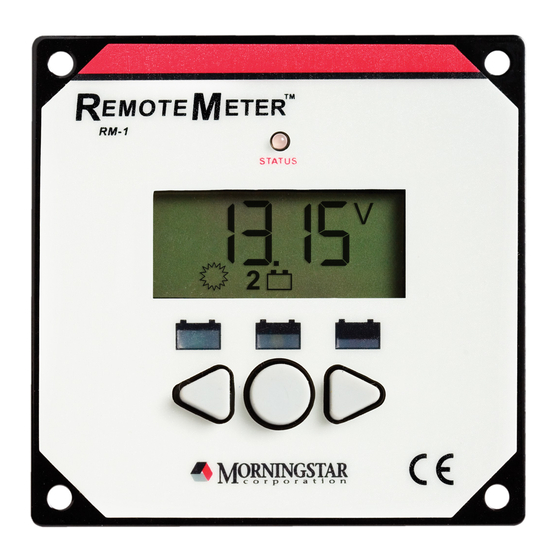

Main Screens
Array Voltage
Solar Input Displays
Battery Voltage
Battery Displays
Load State
Load Displays
Temperature at Meter
Temperature Displays
Return to Top
* Displayed for SunSaver MPPT firmware versions v07 and newer

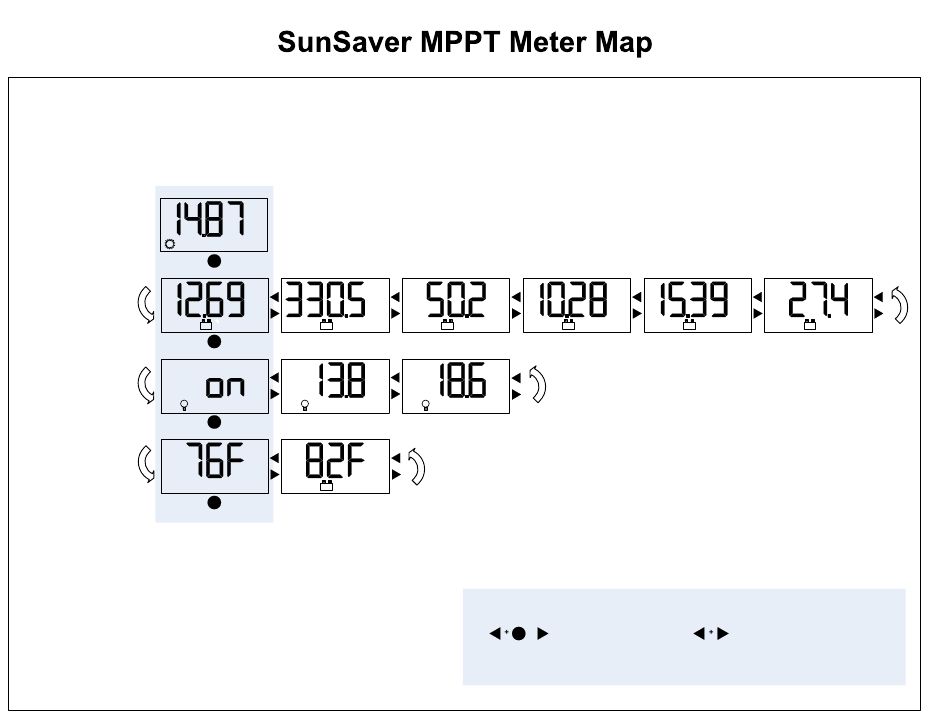

Meter Menu
V
Battery Amp-hours
V
Ah
Load Amp-hours
kAh
Battery Temperature
*
Battery Minimum Voltage
Battery Current
A
Load Current
A
+
= Meter Settings
(see manual)
(hold 5 seconds)
Battery Maximum Voltage
V
V
min
max
Special Functions
= Reset to Zero:
(hold 2 seconds)
Battery min/max Voltage
Battery Watts
Battery/Load Amp-hours
Battery Watts
V
kA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Morningstar SunSaver MPPT Meter Map
Summary of Contents for Morningstar SunSaver MPPT Meter Map
- Page 1 Meter Menu Main Screens Array Voltage Solar Input Displays Battery Voltage Battery Amp-hours Battery Minimum Voltage Battery Maximum Voltage Battery Watts Battery Current Battery Displays Load State Load Amp-hours Load Current Load Displays Temperature at Meter Battery Temperature Temperature Displays Return to Top Special Functions = Meter Settings...
- Page 2 Self Diagnostics Datalogging Hold 5 seconds to exit datalogging Remote Temp. Sensor Value (Hold 5 Seconds) (Hold 5 Seconds) (next screen) TEST TEST Today’s Data Yesterday’s Data 30 Days Ago Controller Firmware Version RTS Temperature ** Maximum Battery Voltage Maximum Battery Voltage Maximum Battery Voltage TEST TEST...
