Siemens CP 443-5 Extended Manual

Simatic net s7 - cps for profibus
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

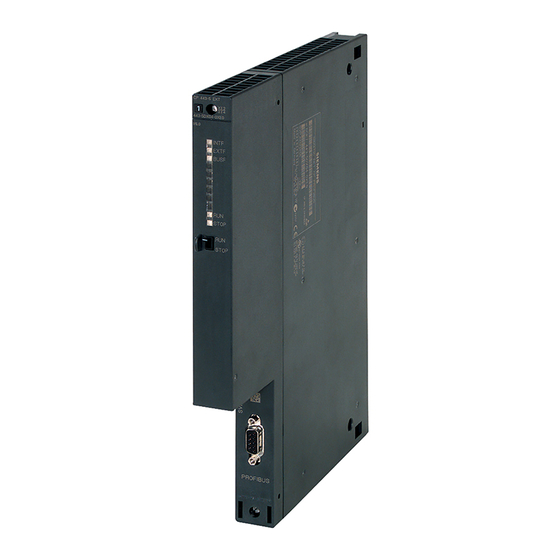

SIMATIC NET
S7 - CPs for PROFIBUS
Manual Part B4
CP 443-5 Extended for PROFIBUS
6GK7 443-5DX04-0XE0
for SIMATIC S7-400 / S7-400H
Status and fault LEDs
Version 1 or higher (Firmware Version V6.1 or higher)
Mode selector
PROFIBUS interface
(9-pin D - sub female
connector)

Advertisement

Table of Contents
loading

Related Manuals for Siemens CP 443-5 Extended

Summary of Contents for Siemens CP 443-5 Extended

  • Page 1 SIMATIC NET S7 - CPs for PROFIBUS Manual Part B4 CP 443-5 Extended for PROFIBUS 6GK7 443-5DX04-0XE0 Version 1 or higher (Firmware Version V6.1 or higher) for SIMATIC S7-400 / S7-400H Status and fault LEDs Mode selector PROFIBUS interface (9-pin D - sub female...
  • Page 2 Compatibility with the Previous Version Note Make sure that you read the information regarding extended functionality and restrictions in Chapter 6 of this manual! CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-2 Release 6/2005 C79000-G8976-C162-06...

  • Page 3: Table Of Contents

    ..........B4-27 CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-3...

  • Page 4: Properties / Services

    - DP master (class 1) (redundant operation in fault-tolerant system also possible) - Direct data exchange (DP slave to DP slave) As a DP master, the CP 443-5 Extended is capable of enabling direct data exchange for “its” DP slaves. - SYNC /FREEZE (please refer to Tables 2-1 and 2-2) The outputs or inputs can be synchronized from the within the user program using system function SFC11.
  • Page 5 2. - Identifying the bus topology in a DP master system As a DP master, the CP 443-5 Extended supports the measurement of the PROFIBUS bus topology in a DP master system using a diagnostic repeater (DP slave).
  • Page 6 SIMATIC PDM (Process Device Manager; see also SIMATIC PDM documentation...). The services of the CP 443-5 Extended module listed above can be used at the same time. Blocks for S7 communication (see also STEP 7 online help or “System Software for S7-300/400 System and Standard Functions”...
  • Page 7 General Part of this manual. Replacing Modules without a Programming Device When installing the CP 443-5 Extended, the configuration data of the CP are always stored in the CPU. Therefore replacing modules is possible without having to download the configuration data from the PG.

  • Page 8: Requirements For Use

    2 Requirements for Use 2 Requirements for Use The CP 443-5 Extended V 6.1 described here is supported by all CPU operating systems in the versions listed in Tables 2-1 and 2-2. Use with the Current CPU Types Limits and Conditions...
  • Page 9 As of V4. 64 / 64 As of V4.1 64 / 64 CPU 416F -2 ..416-2FK04 -0AB0 As of V4. 64 / 64 As of V4.1 64 / 64 CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-9 Release 6/2005 C79000-G8976-C162-06...
  • Page 10 + => The characteristic is supported / the listed mode is possible => The characteristic is not supported / the listed mode is not possible 1) All CPUs are CiR capable (the H -CPUs HCiR). CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-10 Release 6/2005...

  • Page 11: Converting Older Systems

    32 / 32 Legend: + => The characteristic is supported / the listed mode is possible => The characteristic is not supported / the listed mode is not possible CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-11 Release 6/2005 C79000-G8976-C162-06...
  • Page 12 + => The characteristic is supported / the listed mode is possible => The characteristic is not supported / the listed mode is not possible 1) All CPUs are CiR capable (the H -CPUs HCiR). CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-12 Release 6/2005...

  • Page 13: Installation And Commissioning

    With the exception of the slots reserved for the power supply and IM-R, the CP 443-5 Extended can be inserted in all slots with a P and K bus interface (in the central or in an expansion rack no. 1 -6).
  • Page 14 You can connect the PG when configuring the CP as follows: for Configuration via MPI via LAN / PROFIBUS The CP 443-5 Extended must already have a PROFIBUS address. For details, see /2/, General Part. CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-14...

  • Page 15: Displays And Mode Selector

    (DP slave not in data transfer or not accessible) RUN; however problems on DP chain (faulty module in DP slave). Module fault / system error Legend: flashing Field gray: undefined / any CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-15 Release 6/2005 C79000-G8976-C162-06...
  • Page 16 - DP slaves are taken out of data transfer - Data record routing is deactivated In the STOP mode - Configuration and diagnostics are possible - The time of day is distributed CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-16 Release 6/2005 C79000-G8976-C162-06...

  • Page 17: Performance Data

    When there is a large number of modules (DP slaves) configured that can be assigned parameters; When a high value is configured for the constant bus cycle time in the network properties of the PROFIBUS DP chain. CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-17 Release 6/2005 C79000-G8976-C162-06...
  • Page 18 DP slave expansion (CiR functionality) to the entire DP master system. If you specify the properties of a CiR object in the DP master system of the CP 443-5 Extended in STEP 7, these values are included in checks performed by STEP 7.

  • Page 19: Characteristics Of S5-Compatible Communication (Send/Receive Interface) Over Fdl Connections

    Job Active Component / FC min. max. min. max. AG-SEND 0.10 ms 0.11 ms 0.14 ms 0.16 ms AG-RECV 0.13 ms 0.14 ms 0.12 ms 0.13 ms CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-19 Release 6/2005 C79000-G8976-C162-06...

  • Page 20: Characteristics Of S7 Communication

    1) one additional 1 S7 connection can be set up online (for example for routing) Note If PG or HMI functions or data record routing are used, a suitable number of S7 connections must be reserved during configuration! CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-20 Release 6/2005 C79000-G8976-C162-06...
  • Page 21 SFB52 RDREC ”Read data record from a DP slave” corresponds to SFC59 SFB53 WRREC ”Write data record to a DP slave” corresponds to SFC58 SFB54 ALARM ”Read alarm information from a DP slave” 1) PNO: PROFIBUS Users Organization CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-21 Release 6/2005 C79000-G8976-C162-06...

  • Page 22: Time-Of-Day Synchronization

    - a remote PC with CP 5412 / 5613 / 5614 Note With transmission rates of < 1.5 Mbps, we recommend that you configure a synchronization interval of at least 10 s. CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-22 Release 6/2005 C79000-G8976-C162-06...

  • Page 23: Data Record Routing

    PDM can, however, use several connections to one PA field device (for more information, refer to the manual “PDM - The Process Device Manager”). Use in Fault-tolerant Systems With a CP 443-5 Extended, you have the following options in a fault-tolerant (H) system: S Operating fault-tolerant S7 connections with communication services configured...

  • Page 24: Other Characteristics

    The diagnostic/alarm frames are forwarded even when the CPU is in STOP mode, however, they must be evaluated by a suitable user program when the module starts up. CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-24 Release 6/2005...

  • Page 25: Compatibility With The Previous Product B4-25

    6 Compatibility with the Previous Product Extended Functionality Compared with Previous Product: Compared with previous products, the CP 443-5 Extended (6GK7 443-5DX04-0XE0) with firmware version V6.0 or higher has significantly improved performance in all services, in particular when they are operated parallel to each other.
  • Page 26 The information “for new modules” contained in both the STEP 7 / NCM S7 online help and the S7 CPs for PROFIBUS manual is also relevant for the CP described here. Look out for this symbol. CP 443-5 Extended for PROFIBUS / Manual Part B4 B4-26 Release 6/2005...
  • Page 27 Weight approx. 800 g All the information in /1/ in the Section “General Technical Data” regarding the following topics also applies to the CP 443-5 Extended S Electromagnetic compatibility S Transportation and storage conditions S Mechanical and climatic ambient conditions...
