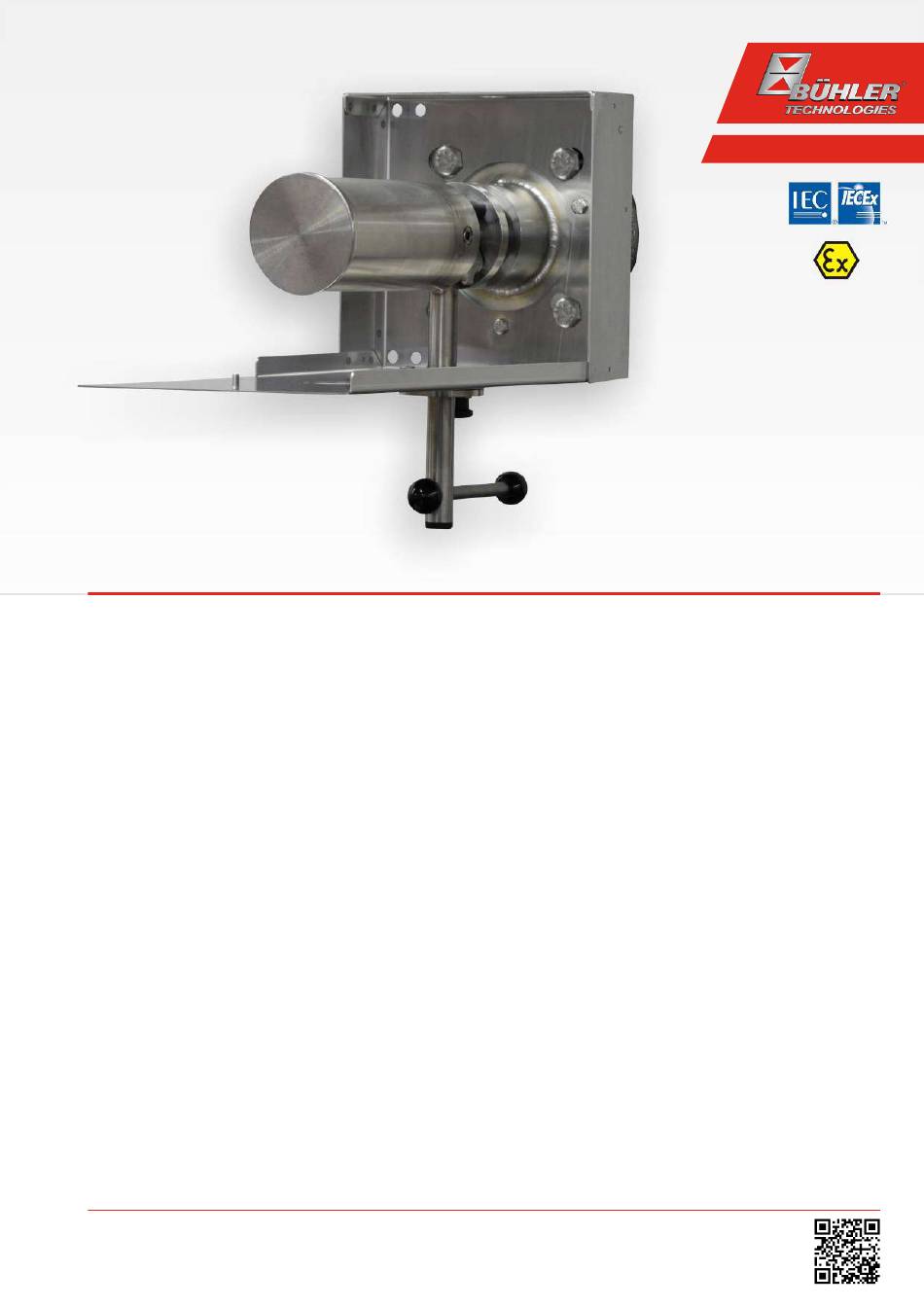

Gas Analysis
Sample gas probes
GAS 222.30 Ex2
Installation and Operation Instructions
Original instructions
BE460064
Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen
08/2019
Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20
E-Mail: analyse@buehler-technologies.com
Internet: www.buehler-technologies.com

Advertisement

Table of Contents
loading

Related Manuals for Buhler GAS 222.30 Ex2

Summary of Contents for Buhler GAS 222.30 Ex2

  • Page 1 Gas Analysis Sample gas probes GAS 222.30 Ex2 Installation and Operation Instructions Original instructions BE460064 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen 08/2019 Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 E-Mail: analyse@buehler-technologies.com...
  • Page 2 Bühler Technologies GmbH, Harkortstr. 29, D-40880 Ratingen Tel. +49 (0) 21 02 / 49 89-0, Fax: +49 (0) 21 02 / 49 89-20 Internet: www.buehler-technologies.com E-Mail: analyse@buehler-technologies.com Read this instruction carefully prior to installation and/or use. Pay at- tention particularly to all advises and safety instructions to prevent in- juries.

  • Page 3: Table Of Contents

    GAS 222.30 Ex2 Table of Contents Introduction.............................................  2 Intended Use.........................................  2 Type Plate.......................................... 2 Contents.......................................... 2 Ordering instructions ...................................... 3 Product Description...................................... 3 Safety instructions.........................................  4 Important Information...................................... 4 General Hazard Warnings .................................... 5 Ambient Temperature range of the equipment............................ 6 Transport and storage ........................................ 7 4 Installation and connection ......................................

  • Page 4: Introduction

    GAS 222.30 Ex2 1 Introduction 1.1 Intended Use The sample gas probe is intended for installation into gas analysis systems in commercial applications. It may be operated in a Zone 2, explosion class IIC, explosive gas atmosphere which is rarely and only temporarily explosive. Zone 2 explosive gas atmospheres may be extracted with or transported with these probes.

  • Page 5: Ordering Instructions

    GAS 222.30 Ex2 1.4 Ordering instructions The item number is a code for the configuration of your unit. Please use the following model key: 4622230 X X X X X X 0 0 X X X X X X Product Characteristics...

  • Page 6: Safety Instructions

    GAS 222.30 Ex2 2 Safety instructions 2.1 Important Information This unit may only be used if: – the product is being used under the conditions described in the operating- and installation instructions, used according to the nameplate and for applications for which it is intended. any unauthorized modifications to the device will void the war- ranty provided by Bühler Technologies GmbH,...

  • Page 7: General Hazard Warnings

    GAS 222.30 Ex2 2.2 General Hazard Warnings The maximum surface temperature of the probes solely varies by operating conditions (steam temperature, sample gas inlet temperature, ambient temperature, fluid flow rate). For use in explosive areas please particularly note the related hazard warn- ings.

  • Page 8: Ambient Temperature Range Of The Equipment

    GAS 222.30 Ex2 DANGER Explosion hazard Life and explosion risk may result from gas leakage due to improper use. a) Use the devices only as described in this manual. b) Regard the process conditions. c) Check tubes and hoses for leakage.

  • Page 9: Transport And Storage

    GAS 222.30 Ex2 3 Transport and storage Only transport the product inside the original packaging or a suitable alternative. The equipment must be protected from moisture and heat when not in use. They must be stored in a covered, dry and dust-free room at a temperature between -20 °C to 50 °C (-4 °F to 122 °F).

  • Page 10: Installation And Connection

    GAS 222.30 Ex2 4 Installation and connection NOTICE Accessories may limit critical operating parameters of the base unit Adding accessories may limit critical operating parameters. Ambient temperatures, zone classifications, explosion groups, temperature classes or chemical resistances of ac- cessories may vary from the base unit.

  • Page 11: Connecting The Gas Line

    GAS 222.30 Ex2 4.5 Connecting the Gas Line The sample gas line must be carefully and properly connected using a suitable fitting. This table provides an overview of the sample gas probe connections: Probe Reservoir Ball valve Control valve GAS 222...

  • Page 12: Connecting The Backwashing System And The Compressed Air Cylinder (Optional)

    GAS 222.30 Ex2 4.6 Connecting the Backwashing System and the Compressed Air Cylinder (Optional) The air lines must be connected carefully and properly, using suitable fittings. If the probe is equipped with pressure vessel for efficient blowback (optional), a manual shut-off valve (ball valve) must be in- stalled in the air supply, immediately upstream from the pressure vessel.

  • Page 13: Version With Terminal Box

    GAS 222.30 Ex2 4.7.1 Version With Terminal Box This probe version includes a terminal box. All electrical connections are factory connected to the terminals in the terminal box. Connect the respective power supply for the solenoid valves to the terminals per the connection diagram.

  • Page 14: Operation And Control

    GAS 222.30 Ex2 5 Operation and Control NOTICE The device must not be operated beyond its specifications. NOTICE The weather hood (if applicable) must be closed during operation! WARNING Housing or component damage Never exceed the maximum working pressure and temperature range of the drive.

  • Page 15: Maintenance

    GAS 222.30 Ex2 6 Maintenance – Damaged parts must be replaced immediately. – Regularly check the function of the electrical protection. During maintenance, remember: – The equipment must be maintained by a professional familiar with the safety requirements and risks.

  • Page 16: Replacing The Inlet Filter

    GAS 222.30 Ex2 CAUTION Drive pressurised Never loosen or remove the cover or any accessories with the drive pressurised. CAUTION Never open the drive with the function “single-acting”! This may only be done at the manufacturer’s plant. CAUTION Do not attach levers or tools to the drive’s spindle!

  • Page 17: Backwashing The Intake Filter (Within The Process Stream)

    GAS 222.30 Ex2 6.2 Backwashing the Intake Filter (within the process stream) DANGER Adiabatic compression during gas blowback (explosion hazard)! Adiabatic compression may cause high gas temperatures and must be checked by the user. Gas blowback may result in high gas temperatures due to adiabatic compression. This can cause flammable gases to ignite spontaneously.

  • Page 18: Maintenance Schedule

    GAS 222.30 Ex2 6.3 Maintenance Schedule NOTICE When using the probe in explosive areas the maintenance schedule must be observed! Maintenance schedule for normal ambient conditions: Component Interval in operating Work to be performed To be performed by hours Entire probe every 8000 h –...

  • Page 19: Service And Repair

    GAS 222.30 Ex2 7 Service and repair This chapter contains information on troubleshooting and correction should an error occur during operation. Repairs to the unit must be performed by Bühler authorised personnel. Please contact our Service Department with any questions: Tel.: +49-(0)2102-498955 or your agent...

  • Page 20: Disposal

    GAS 222.30 Ex2 8 Disposal Dispose of parts so as not to endanger the health or environment. Follow the laws in the country of use for disposing of elec- tronic components and devices during disposal. Bühler Technologies GmbH BE460064 ◦ 08/2019...

  • Page 21: Appendices

    GAS 222.30 Ex2 9 Appendices 9.1 Technical Data Gas Probe Technical Data Ambient temperature without accessories: -20 to +80 °C Ambient temperature for accessories: Component Ambient temperature range Compressed air valve: -30 °C < T < +60 °C Solenoid valve for pneumatic drive: -10 °C <...

  • Page 22: Terminal Diagram Terminal Box Limit Switch

    GAS 222.30 Ex2 9.3 Terminal Diagram Terminal Box Limit Switch OPEN CLOSED The connection diagram shows the limit switch box in the intermediate position. Switches not actuated. 9.4 Flow chart 20 Bühler Technologies GmbH BE460064 ◦ 08/2019...

  • Page 23: Dimensions

    GAS 222.30 Ex2 9.5 Dimensions BE460064 ◦ 08/2019 Bühler Technologies GmbH...
  • Page 24 GAS 222.30 Ex2 Bühler Technologies GmbH BE460064 ◦ 08/2019...

  • Page 25: List Of Chemical Resistance

    GAS 222.30 Ex2 9.6 List of chemical resistance Materials of your device in contact with media are printed on the type plate. Formula Medium Concentration Teflon® FFKM Viton® PTFE COCH Acetone Benzol Chlorine 10 % wet Chlorine 97 % Ethane...

  • Page 26: User Book (Please Make Copies)

    GAS 222.30 Ex2 9.7 User book (Please make copies) Maintained on Unit no. Operating hours Remarks Signature Bühler Technologies GmbH BE460064 ◦ 08/2019...

  • Page 27: Attached Documents

    GAS 222.30 Ex2 10 Attached Documents – Type Examination Certificate IBExU17ATEXB007X – Certificate IECEx IBE 17.0002X – Declaration of Conformity KX460027 – Accessories Data Sheet 461099 – RMA - Decontamination Statement BE460064 ◦ 08/2019 Bühler Technologies GmbH...
  • Page 36 Produkt / products: Gasentnahmesonde / Sample gas probe Typ / type: GAS 222.11 Ex2, GAS 222.30 Ex2, GAS 222.35-U Ex2 Die Produkte werden entsprechend der derzeitig gültigen Atex-Richtlinie innerhalb der internen Fertigungskontrolle folgendermaßen gekennzeichnet: The products are marked according to the currently valid Atex directive during internal control of production:...
