INSTALLATION GUIDE

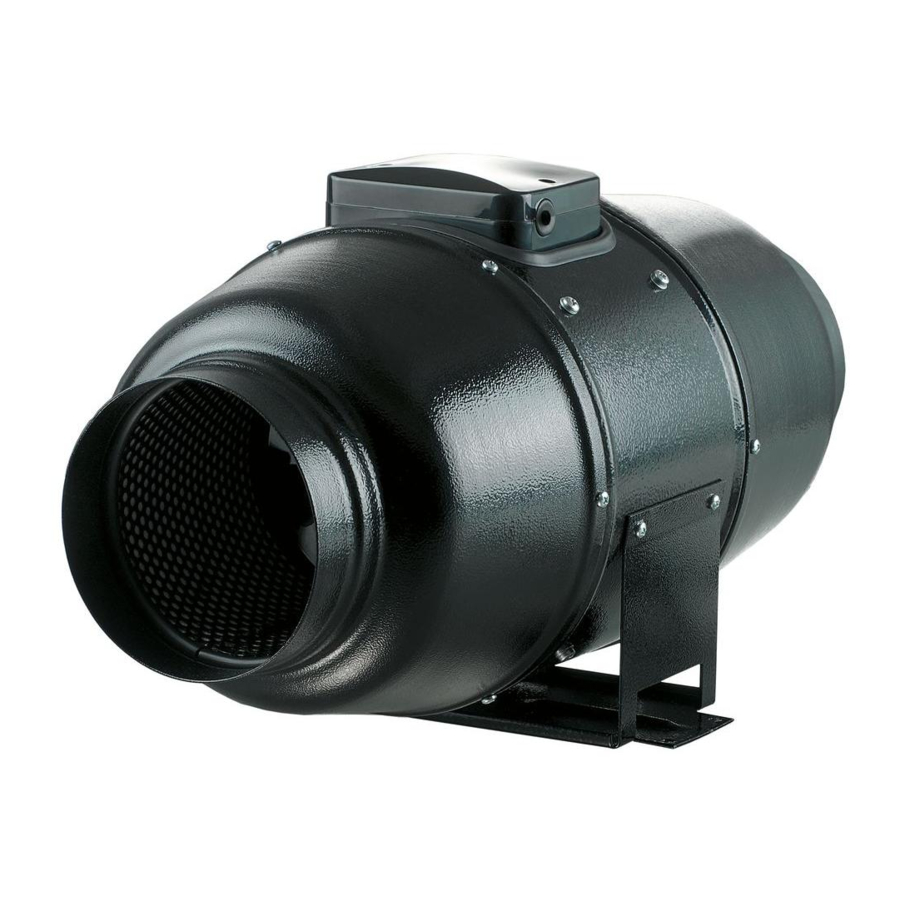

INLINE MIXED-FLOW FANS IN SOUND-INSULATED CASING
TT SILENT M 100/125/150/160/200/250/315
Pencil
MOUNTING
While mounting the fan provide extra protection against water ingress.
Сonnect an air duct on both sides of the fan .
We recommend minimum 40' of insulated flexible duct between any exhaust grill and fan for low noise level. .
Bodor Vents, LLC DBA: VENTS-US
11013 Kenwood Road Cincinnati, Ohio 45242
Phone: (513)348-3853
e-mail: sales@ventsus.com
www.ventsus.com
Drill
2
3
Tools required
Screwdriver
min v40 vinch
Dowel (4 pcs.)
min v40 vinch
Screws (4 pcs.)
MIU_07-01
Advertisement
Table of Contents
Related Manuals for Vents-us TT SILENT M 100
Summary of Contents for Vents-us TT SILENT M 100
- Page 1 INSTALLATION GUIDE INLINE MIXED-FLOW FANS IN SOUND-INSULATED CASING TT SILENT M 100/125/150/160/200/250/315 Tools required Pencil Drill Screwdriver Dowel (4 pcs.) Screws (4 pcs.) MOUNTING While mounting the fan provide extra protection against water ingress. Сonnect an air duct on both sides of the fan .
- Page 2 5) Connect air ducts Connection of the fan and standard wall socket BREAKER BOX GREEN GROUND BREAKER SCREW 120VAC, 60Hz WALL SOCKET EARTH Bodor Vents, LLC DBA: VENTS-US 11013 Kenwood Road Cincinnati, Ohio 45242 Phone: (513)348-3853 MIU_07-01 e-mail: sales@ventsus.com www.ventsus.com...
- Page 3 5) Install the terminal block cover 6) Сonnect the fan from power supply. ТТ Silent-М 100/125/150 ~120V 60Hz ТТ Silent-М 200/250/315 ~120V 60Hz Bodor Vents, LLC DBA: VENTS-US 11013 Kenwood Road Cincinnati, Ohio 45242 Phone: (513)348-3853 MIU_07-01 e-mail: sales@ventsus.com www.ventsus.com...
