Makita BFL060F Series Technical Information page 14

W
iring diagram
[2] From Main Switch to Switch Unit
Route the following Lead wires as described in Fig. D-3.
Controller's lead wires (blue, gray) to LED circuit
Controller's lead wires (purple, yellow) to Switch unit
Switch unit's lead wires (purple, yellow) to Controller
Endbell's lead wires (red and black) to Reverse switch

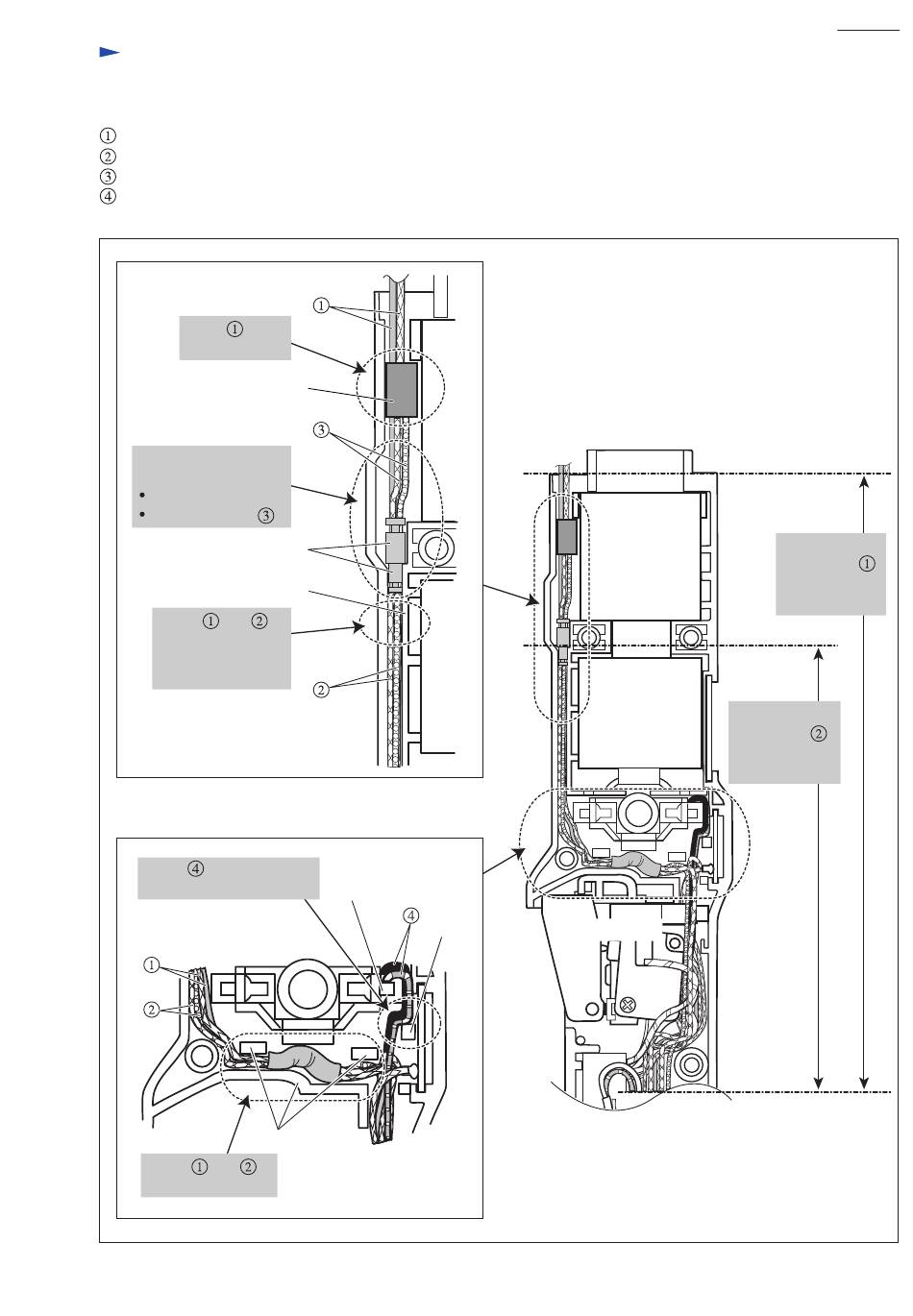

Fig. D-3
Route under
Switch unit.
Switch unit
Put the following parts
in this space:
Connectors
Slack portion of
Connector
Route and
between the rib and
the inside wall of
Housing R.
Route between this rib
and Endbell complete.
rib
Route and
between these ribs.
rib
Endbell complete
rib
Gear case
Make sure that
Yoke unit
Lead wires
are tight in this
portion.
Main switch
P 14/15
Make sure that
Lead wires
are tight in this
portion.
