SOMFY Tridonic animeo Manual

DALI control device for Somfy motor controller

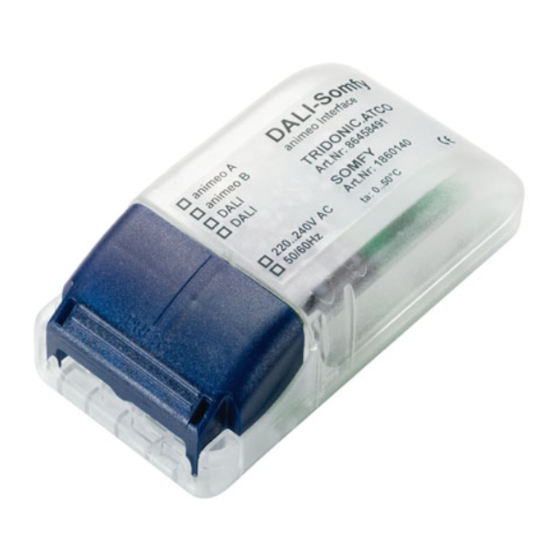

DALI-Somfy animeo interface
101,5
• For integrating Somfy animeo IB+ motor controllers
in the DALI circuit
• The DALI-Somfy animeo interface requires 4 DALI
addresses and can therefore independently control
up to 4 blinds (i.e. 1 interface is needed per motor
controller)
• Lighting moods can be conjured up using different
blind positions
• The DALI-Somfy animeo interface supports 16 DALI
groups and 16 DALI scenes. It is incorporated into
the DALI circuit like a DALI electronic ballast. The
blind positions (height and angle) are stored just like
lighting scenes. Whenever the saved scene is called
up, the blind moves to the preset position. It is pos-
sible to save and recreate a scene using the DALI
SC, for instance. This makes it possible to save light
and blind positions in a single scene.
• 5-year guarantee
Type
article number Tridonic
article number Somfy
electrical supply mains voltage
frequency
max. current
input number
–
power consumption DALI bus
number of DALI addresses
output number
–
max. number of selectable motors
mounting –
mounting position
max. cross section
dimensions L xW x H
mechanical details
weight
environment protection type
safety class
temperature ambient temperature ta
storage temperature
tc point
The following Somfy motor controllers can be used:
• animeo IB+ 4 AC motor controller (1860049, 1860081, 1860103, 1860108)
• animeo IB+ 4 DC motor controller (1860086)
• animeo IB+ 4 DC/DC-E motor controller (1860087)
Please read the instructions for the animeo IB+ motor controllers carefully.
Data sheet 08/13-CO056-0 We reserve the right to make technical changes without prior notice.

Installation

• The polarity of the terminals (A, B) must be observed
• May only be used in conjunction with certain Somfy
animeo IB+ motor controller (see list)
• Adjustments to the running and winding times must
be made directly on the motor controller (Somfy) or
using the software of the manufacturer (Somfy)
• The DALI-Somfy animeo interface will only function
after the running and winding times have been set
on the motor controller (Somfy)
• The DALI and Somfy signals are not SELV. Installa-
tion specifications for low-voltage devices apply
• The maximum current on the DALI control line may
not exceed 250 mA
• The maximum cable length of the DALI control line
may not exceed 300 m (given a wire cross section
of 1.5 mm²) or a voltage drop of 2V
V
Hz
mA
–
–
mA
–
–
–
–
–
–
mm 2
mm
kg
–
–
°C
°C
°C
The following Tridonic DALI controls are supported:
• DALI-GC-A
• DALI-SC
• DALI-SC-A
• DALI-MC
• DALI-TOUCHPANEL
Packaging carton:
1 pc(s).
Designed according to:
EN 55015
EN 55022
EN 61000-3-2
EN 61000-3-3
EN 61000-6-2
EN 61347-2-11
EN 61547
IEC 62386 (according to DALI standard V1)
Glow-wire test
according to EN 60598-1 passed.
DALI-Somfy animeo Interface
86458491
1860140
220 – 240
50/60
20
1
DALI
6
4 (one per motor)
1
Somfy motor controller protocol
4
remote mounting
any
2.5
101.5 x 51 x 29.5
0.155
IP 20
SKII
0 → 50
-20 → 70
75
• DALI-USB
• x-touchBOX version 3.00 or above
• x-touchPANEL version 3.00 or above
• x/e-touchPANEL
• DALI-TOUCHPANEL 02
RoHS
