SNOWJOE SUNJOE SWJ800E Operator's Manual

SNOWJOE SUNJOE SWJ800E Operator's Manual

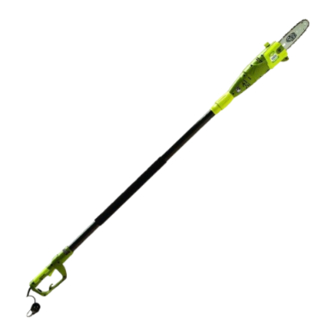

8-inch 6.5-amp electric pole chain saw
Hide thumbs Also See for SUNJOE SWJ800E:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual of Product 1:
Sun Joe SWJ800E 8-Inch, 6.5-Amp Telescoping Electric Pole
Chain Saw w/ Automatic Chain Lubrication System
User Manual of Product 2:
WEN 4017 Electric Chainsaw, 16"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNJOE SWJ800E and is the answer not in the manual?

Questions and answers

Related Manuals for SNOWJOE SUNJOE SWJ800E

Summary of Contents for SNOWJOE SUNJOE SWJ800E

  • Page 1 User Manual of Product 1: Sun Joe SWJ800E 8-Inch, 6.5-Amp Telescoping Electric Pole Chain Saw w/ Automatic Chain Lubrication System User Manual of Product 2: WEN 4017 Electric Chainsaw, 16"...
  • Page 2 8-INCH 6.5-AMP ELECTRIC Let Gravity Do The Work POLE CHAIN SAW Model SWJ800E Form No. SJ-SWJ800E-880E-MR2 OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! 9. Wear proper apparel – Do not wear loose articles of clothing or jewelry since such items may get caught Safety Instructions in moving parts.
  • Page 3 WARNING! Some dust and debris created by the WARNING! use of the tool could contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Some examples of these chemicals are: Electric shock may cause SEVERE INJURY or DEATH.
  • Page 4 Specific Safety Rules For AVOID CONTACTING THE GUIDE BAR TIP WITH ANY OBJECT. In some cases, when the tip makes contact with an Pole Chain Saws object, it may cause a fast reverse reaction, kicking the guide bar up and back towards the operator. Pinching the saw chain WARNING! along the top of the guide bar may also push the guide bar SHOCK HAZARD! –...
  • Page 5 Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all instructions in the Keep bystanders and children user manual(s) before attempting...

  • Page 6: Technical Data

    Know Your Electric Pole Chain Saw Read the owner’s manual and safety instructions carefully before operating the pole chain saw. Compare the illustration below to the pole chain saw in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
  • Page 7 Snow Joe + Sun Joe customer ® ® ® service center at 1-866-SNOWJOE (1-866-766-9563). Sprocket cover WARNING! Unpacking and assembly should be completed on a flat and stable surface, with adequate space 3. Remove the old chain from the bar.
  • Page 8 4. Lay out the new saw chain in a loop and straighten 6. Position the chain so there is a loop at the back of the bar. any kinks. THE SHARP SIDE OF THE TEETH MUST Hold the chain in position on the bar and place the loop FACE AWAY FROM YOU IN THE DIRECTION OF THE around the sprocket (Fig.
  • Page 9 8. Tighten the chain tensioner screw only enough to hold the NOTE: A cold chain is correctly tensioned when there bar and chain in place (Fig. 7), ensuring the chain is still in is no sag on the underside of the guide bar; the chain place over the sprocket.
  • Page 10 ® WARNING! Do not operate near electrical wires. 50-foot extension cord with lighted end (Model PJEXT50-B). Visit snowjoe.com to order online or call 1-866-SNOWJOE WARNING! Failure to lubricate the chain will cause (1-866-766-9563) to order by phone. damage to the bar and chain. Use only a good quality bar 3.
  • Page 11 Cutting Tips 5. To turn the tool OFF, release the trigger switch (Fig. 13). NOTE: Do not press the trigger switch until you are ready Proper Cutting Stance to make a cut. Adjusting the Telescoping Pole • Balance your weight with both feet on solid ground. •...
  • Page 12 control the PULL when cutting on the bottom edge of the • Release the trigger ON/OFF switch as soon as the cut is bar, and PUSH when cutting along the top edge. completed. Failure to follow proper cutting procedures will result in the bar and chain binding and becoming pinched •...
  • Page 13 + Sun Joe customer service center ® ® at 1-866-SNOWJOE (1-866-766-9563) for all maintenance operations not foreseen in this manual. Any operation performed in an unauthorized service center or by unqualified Flats are not personnel will completely invalidate the warranty.
  • Page 14 You can purchase replacement parts for your Sun Joe on all the cutting edges facing the same way (right or left). ® SWJ800E electric pole saw online at snowjoe.com or, to order • To move the chain forward, use a screwdriver. by phone, contact Snow Joe...
  • Page 15 1-866-SNOWJOE (1-866-766-9563) live 120 V outlet. for assistance. •...
  • Page 16 • Inspect the oil port and guide bar rails and clean them to If your Sun Joe SWJ800E electric pole chain saw requires ® remove any debris. service or maintenance, please call 1-866-SNOWJOE • Check the chain tension. (1-866-766-9563) for assistance. • Check the chain teeth for sharpness. Model and Serial Numbers •...
  • Page 17 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 You can reach us at 1-866-SNOWJOE (1-866-766-9563), online require a serial number, typically found on the decal affixed to the at snowjoe.com, via email at help@snowjoe.com or tweet us housing or guard of your product. All products require a valid proof @snowjoe.
  • Page 21 snowjoe.com...
  • Page 22 16˝ ELECTRIC CHAIN SAW Model # 4017 bit.ly/wenvideo IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions.

  • Page 23: Table Of Contents

    TABLE OF CONTENTS Technical Data General Safety Rules Specific Safety Rules For Chain Saws Electrical Information Know Your Chain Saws Assembly and Adjustments Operation Maintenance Troubleshooting Guide Exploded View and Parts List Warranty TECHNICAL DATA Model Number: 4017 120 V, 60 Hz, 12A Motor: 16 inch, Oregon Saw Chain:...

  • Page 24: General Safety Rules

    GENERAL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFE- TY INSTRUCTIONS. WARNING: To avoid mistakes and serious injury, do not plug in your tool until the following steps have been read and understood. 1.

  • Page 25: Specific Safety Rules For Chain Saws

    GENERAL SAFETY RULES 15. DO NOT OVERREACH. Keep proper footing and balance at all times. Wear oil-resistant rubber-soled foot- wear. Keep the floor clear of oil, scrap, and other debris. 16. MAINTAIN TOOLS PROPERLY. ALWAYS keep tools clean and in good working order. Follow instruc- tions for lubricating and changing accessories.
  • Page 26 SPECIFIC RULES FOR CHAIN SAWS 8. Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain, whipping towards you or pulling you off balance. 9. Carry the chain saw by the front handle with the chain saw switched off and away from your body. When trans- porting or storing the chain saw always protect the blade with a scabbard (blade cover).

  • Page 27: Electrical Information

    ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug.

  • Page 28: Know Your Chain Saws

    KNOW YOUR CHAIN SAW Power Cable Rear Handle Safety Button (not shown - opposite side of handle) Trigger Switch Oil Cap Sprocket Cover Bar Adjustment Locking Knob Front Handle Front Hand Guard Guide Bar Saw Chain Chain Tensioning Wheel Oil Level Indicator Cable Strain Relief Notch...

  • Page 29: Assembly And Adjustments

    ASSEMBLY AND ADJUSTMENTS WARNING: Always be sure that the tool is switched off and unplugged before adjusting, adding accessories, or checking a function on the tool. ASSEMBLY OF GUIDE BAR AND SAW CHAIN 1. Place the saw body on a firm and level surface. 2.
  • Page 30 ASSEMBLY AND ADJUSTMENTS REPLACING THE CHAIN 1. Rotate the bar adjustment locking knob and remove the cover of the saw’s body (see Assembly of Guide Bar and Chain for more details - Page 8). 2. Lift the worn saw chain out of the fitted slot in the guide bar.

  • Page 31: Operation

    OPERATION PREPARATION Before each use, check the following items to ensure safe working conditions. CHAIN SAW: before beginning work, inspect the chain saw for damage to the housing, the extension cord, the saw chain and the guide bar. Never use an obviously damaged machine. OIL TANK: check the fill level of the oil tank.
  • Page 32 OPERATION SAWING TECHNIQUES Saw off the lower branches on the tree first. By doing so, it is easier for the cut branches to fall to the ground. At the end of the cut, the weight of the saw suddenly increases for the user since it is no longer being supported by a branch.

  • Page 33: Maintenance

    MAINTENANCE CLEANING Regularly clean the tensioning mechanisms by blowing compressed air onto it or by cleaning it with a brush. Do not use any tools for the cleaning. Keep the oil away from the handle in order to ensure a secure hold. Clean the machine as necessary with a damp cloth and a mild cleanser, if appropriate.

  • Page 34: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION No power supply Check the power supply. Try a different source of power. Change as Defective outlet necessary. Saw does not operate properly Damaged Extension cable Check cable and replace if necessary. Push the safety button before pulling the Safety button not pushed trigger.
  • Page 35 EXPLODED VIEW AND PARTS LIST Part Number Part Description Part Number Part Description 4017-001 Oil Tank Cap Assembly 26-9 4017-048 Hexagon Nut 4017-002 Cap Cover 4017-049 Brush 4017-003 Oil Tank Cap 4017-050 Brush Cover 4017-004 Seal Ring 4017-051 Brush Cover Screws 4017-005 Hanger 4017-052...
  • Page 36 EXPLODED VIEW AND PARTS LIST...
  • Page 37 LIMITED TWO YEARS WARRANTY WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN con- sumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
