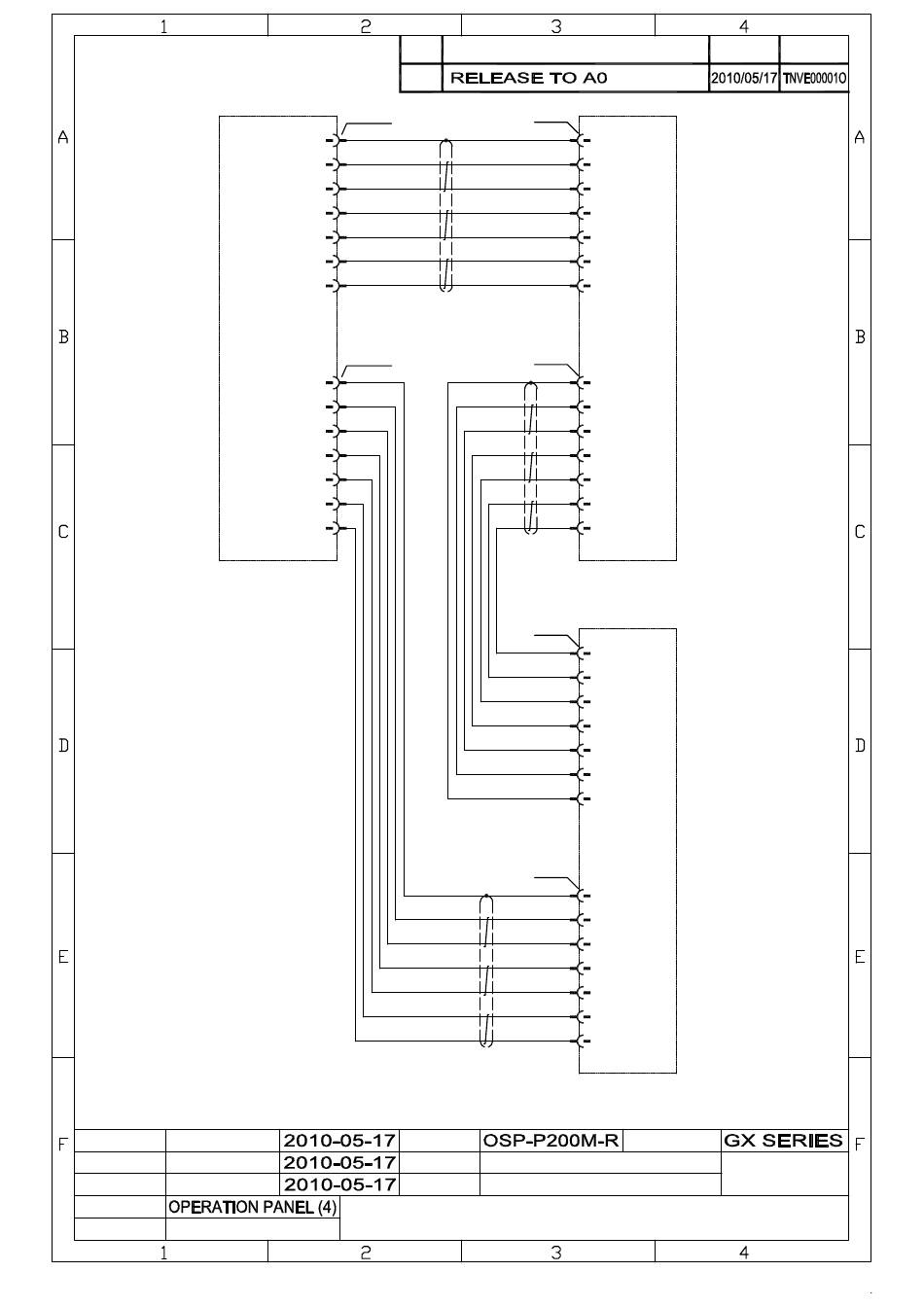

Hardinge GX Series Electrical Manual page 58

通信基盤
通信基板
Communicaion
Board
DRAWN RACHEL-C
CHECK SUNNY-L
APPROVE SUNNY-L
TITLE
REF AI5
REV
A0
X11-D101S
D101S
1
FG
2
+5V
3
GND
4
TXSYNC1+
5
TXSYNC1-
6
TXD1+
7
TXD1-
X12-D101S
1
FG
2
+5V
3
GND
4
RXSYNC1+
5
RXSYNC1-
6
RXD1+
7
RXD1-
NC TYPE
DWG NO
PART NO
DESCRIPTION
通用開關附加面板(1)
X2-AP4
(MPINOUT)
AI501
1
AP4
FG
AI502
2
+5V
AI503
3
GND
AI504
4
RXSYNC1+
AI505
5
RXSYNC1-
AI506
6
RXD1+
AI507
7
RXD1-
X1-AP4
1
FG
2
+5V
3
GND
4
TXSYNC1+
5
TXSYNC1-
6
TXD1+
7
TXD1-
通用開關附加面板(2)
X2-AP5
(MPINOUT)
AI524
7
AP5
RXD1-
AI523
6
RXD1+
AI522
5
RXSYNC1-
AI521
4
RXSYNC1+
AI520
3
GND
AI519
2
+5V
AI518
1
FG
X1-AP5
AI511
1
FG
AI512
2
+5V
AI513
3
GND
AI514
4
TXSYNC1+
AI515
5
TXSYNC1-
AI516
6
TXD1+
AI517
7
TXD1-
MT TYPE
E01\GX 822P200-EAI5
GX 822P200E
DATE ECN.
REF:AI1/AI17
VERSION: A0
表單編號 :E40011
