Hardinge GX Series Electrical Manual page 20

R
T
(REF:AB1/AB2)
200
202
(REF:AB6)
R
S
T
(REF:AB1/AB2)
DRAWN RACHEL-C
CHECK SUNNY-L
APPROVE SUNNY-L
TITLE
REF AB8
REV
A0

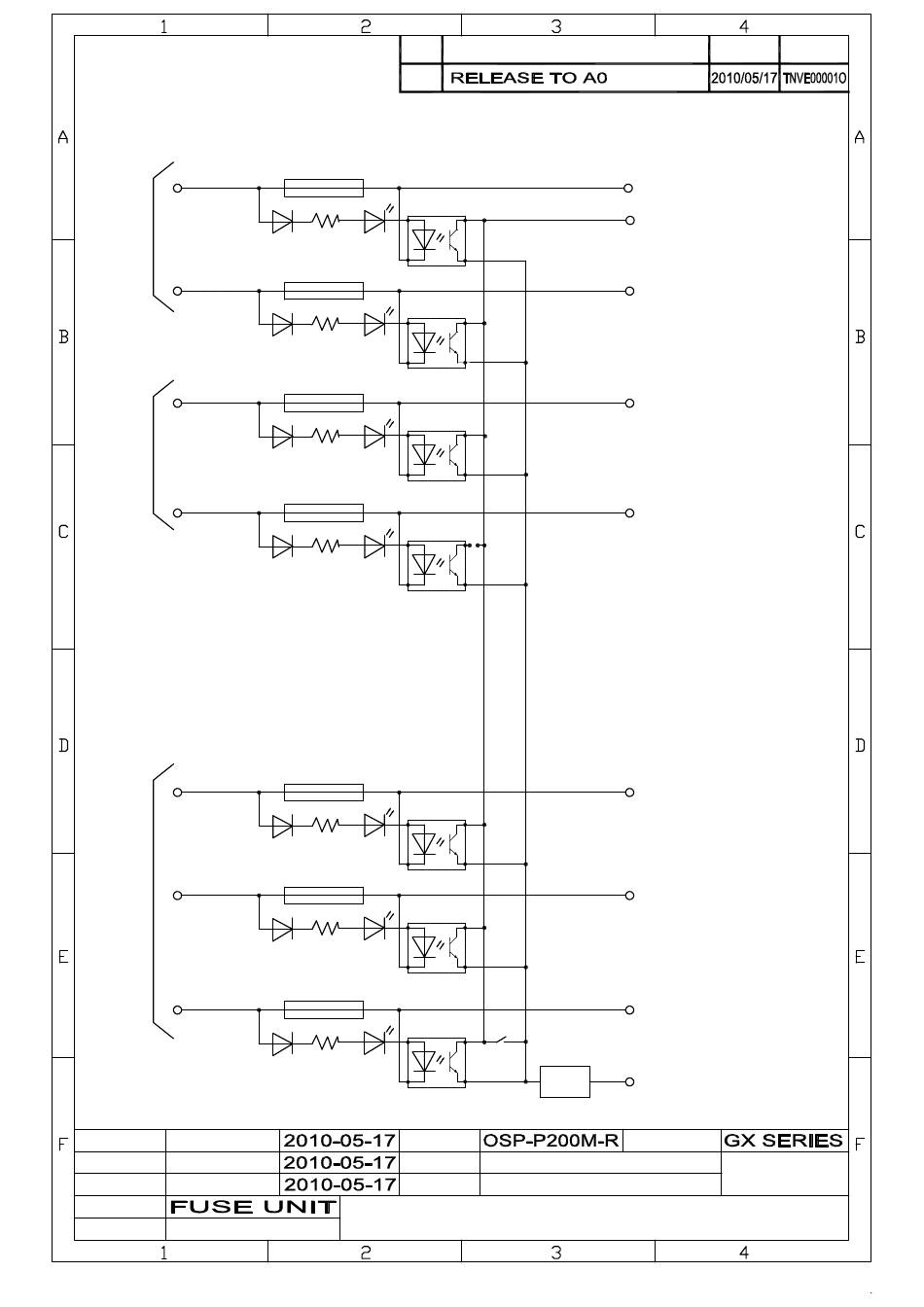

FUSE UNIT
F1 (6A)
U1
F2 (6A)
U2
F3 (4A)
U3
F4 (4A)
U4
JP1
(1A)
F8
U8
F9 (1A)
U9
F10 (1A)
U10
NC TYPE
DWG NO
PART NO
DESCRIPTION
RA
AC 220V
+24E
+24E
TA
AC 220V
201
AC 110V
44
AC 24V FOR
WORK LAMP
(REF:AB6/AC6)
U0
AC 220V FOR SPD.
FAN
(REF:AH2)
V0
AC 220V FOR SPD.
FAN
(REF:AH2)
W0
AC 220V FOR SPD.
FAN
(REF:AH2)
KY1
0VC
KY1
DC 0VC
(REF:AB7)
MT TYPE
E01\GX 822P200-EAB8
GX 822P200E
DATE ECN.
(REF:AB6)
(REF:AB7)
(REF:AB6)
(REF:AB6)
VERSION: A0
