Hardinge GX Series Electrical Manual page 118

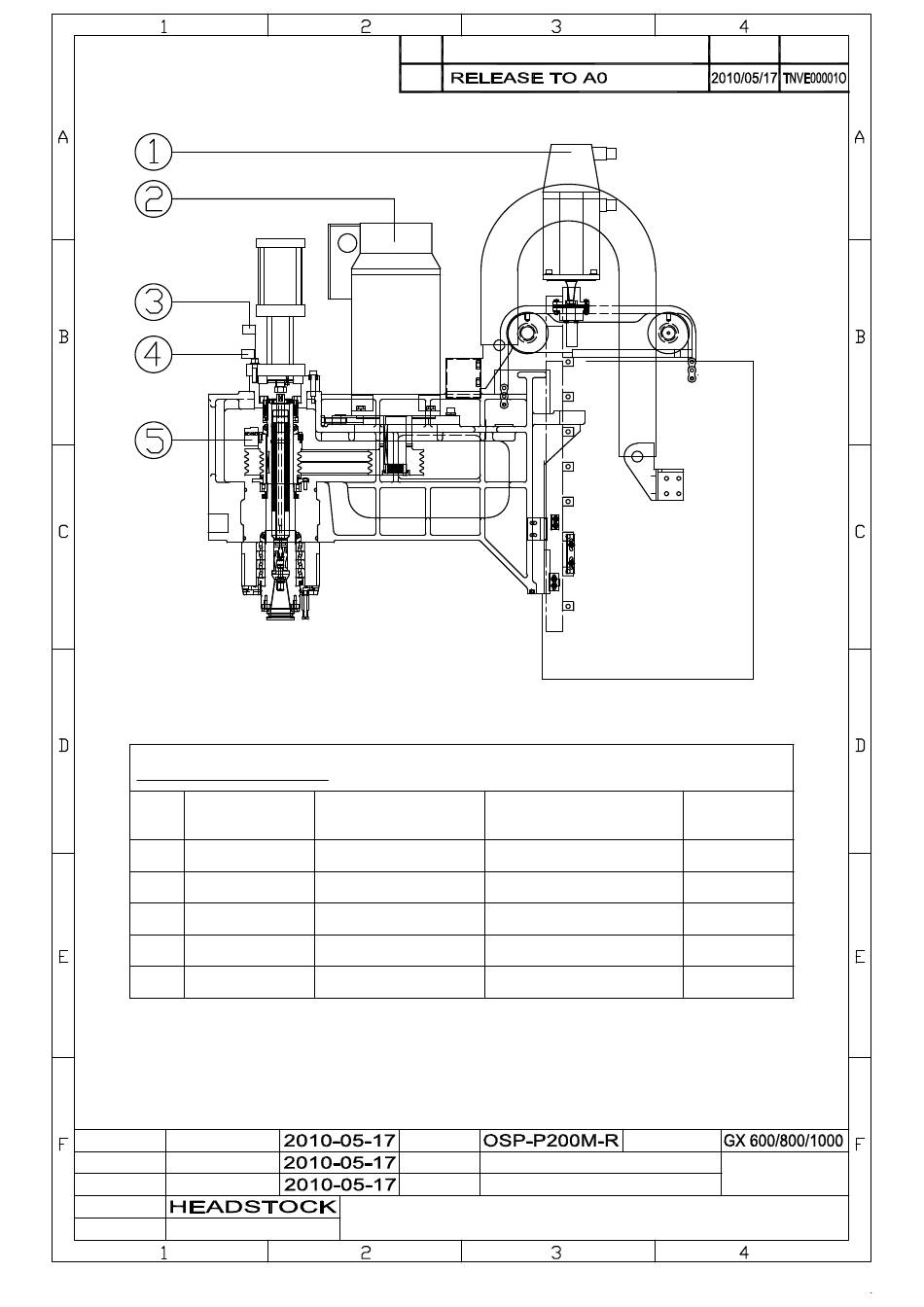

GX 822P200-P10 PARTS LIST
ITEM PART NUMBER
(項目) (零件料號)
1 NV 00004040001
2 NV 00004040100
3 NV 00102440000
4 NV 00102440000
5 GXA00081480002
DRAWN RACHEL-C
CHECK SUNNY-L
APPROVE SUNNY-L
TITLE
REF
REV
A0
SPECIFICATION
(規格)
U4511-0005-002-00
Z AXIS SERVO MOTOR
(OKUMA)
E1015-288-016
SPINDLE MOTOR
(OKUMA)(12000r.p.m)
SL1-A (YAMATAKE)
SPD. CLAMP SWITCH
SL1-A (YAMATAKE)
SPD. UNCLAMP SWITCH
SPD. ROT. SPEED SENSOR
GS04T04SIS
(OP)
NC TYPE
DWG NO E01\GX 822P200-P10
PART NO GX 822P200P
DESCRIPTION
DESCRIPTION
(說明)
MT TYPE
DATE ECN.
QUANTITY
(數量)
1
1
1
1
1
VERSION: A0
表單編號 :E40011
