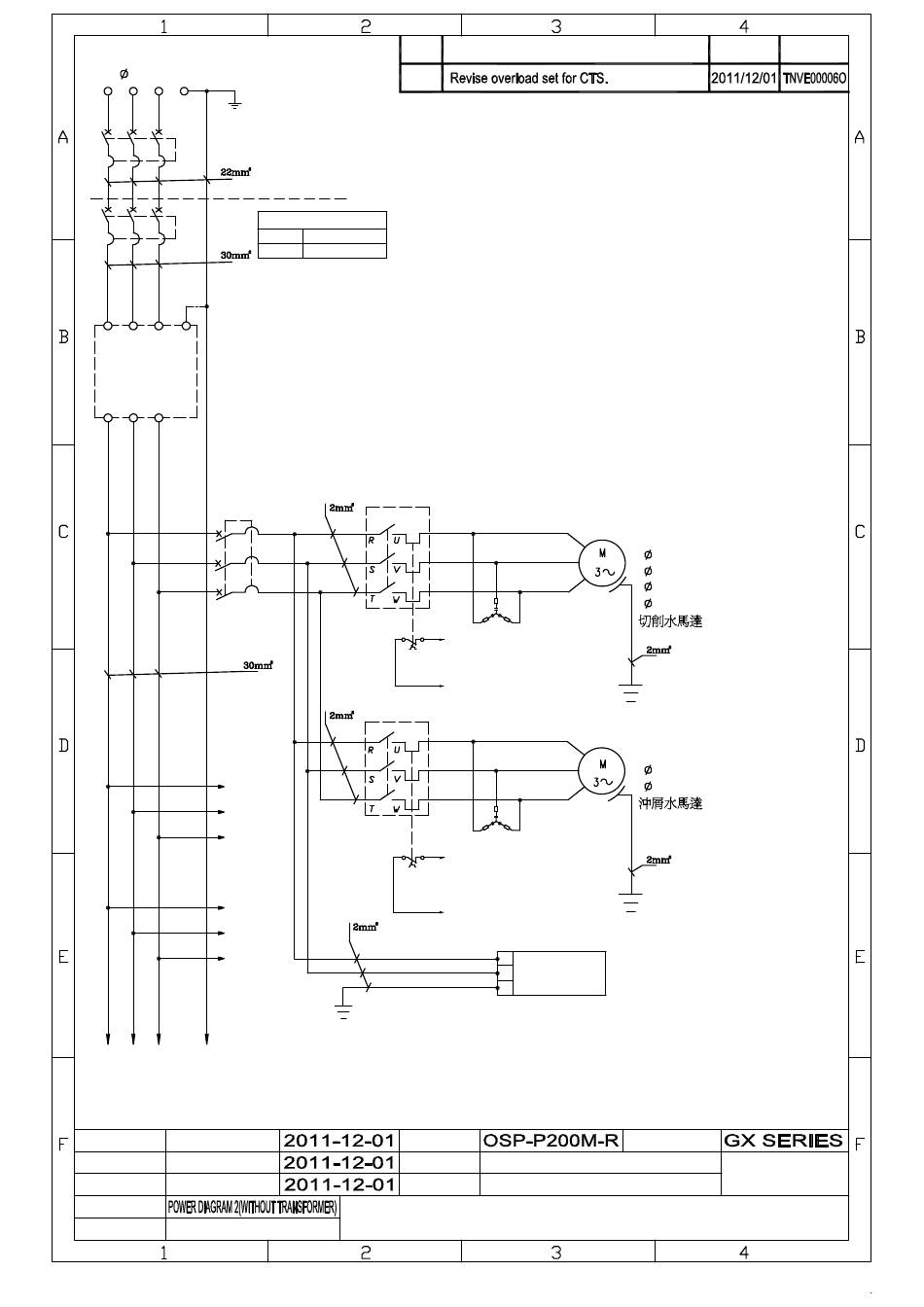

Hardinge GX Series Electrical Manual page 15

3 AC220V
L1 L2 L3 PE
R0 S0 T0
E
L1 L2 L3
LINE
FILTER(CE)
LOAD
L1 L2 L3
R S T
3P20A
3P16A
QFB1
R
S
TO:
P1(PSU)
T
TO REF:AH1
POWER
SUPPLY WITH
BUILT IN ACL
R
S
TO:KMPS
TO REF:AH1
T
R T E
S
TO REF:AB3/AB5/AB6/AB7/
AB8
DRAWN RACHEL-C
CHECK SUNNY-L
APPROVE SUNNY-L
TITLE
REF AB2
REV
A1
CUSTOMER SIDE
QFB
3P 125A GX 600/800/1000
3P 150A GX 1300/1600
(FOR 60HZ CTS)
MS1
SET POINT:3.2A
(REF/AZ)
SET POINT:11.8A(50HZ)(CTS)
SET POINT:11.6A(60HZ)(CTS)
R1
S1
T1
FRT1
MS2
(REF/AZ)
SET POINT:3.2A
FRT2
E
NC TYPE
DWG NO
PART NO
DESCRIPTION
U1
MTR1
V1
W1
RSC1
206
TO REF:AC1
+24E
TO REF:AB7
U2
MTR2
V2
W2
RSC2
207
TO REF:AC1
206
TO REF:AC1
POWER CASE
HEAT EXCHANG
UNIT
E01\GX 822P200-EAB2
GX 822P200E
DATE ECN.
COOLANT PUMP MOTOR
3 540W 50HZ
3 800W 60HZ
3 2.2KW 50HZ (CTS)
3 4.0KW 60HZ (CTS)
E
CHIP FLUSHING PUMP MOTOR
3 540W 50HZ
3 800W 60HZ
(OPTION)
E
MT TYPE
VERSION:
表單編號 :E40011
A1
