Summary of Contents for Zeiss Axiocam 702 mono

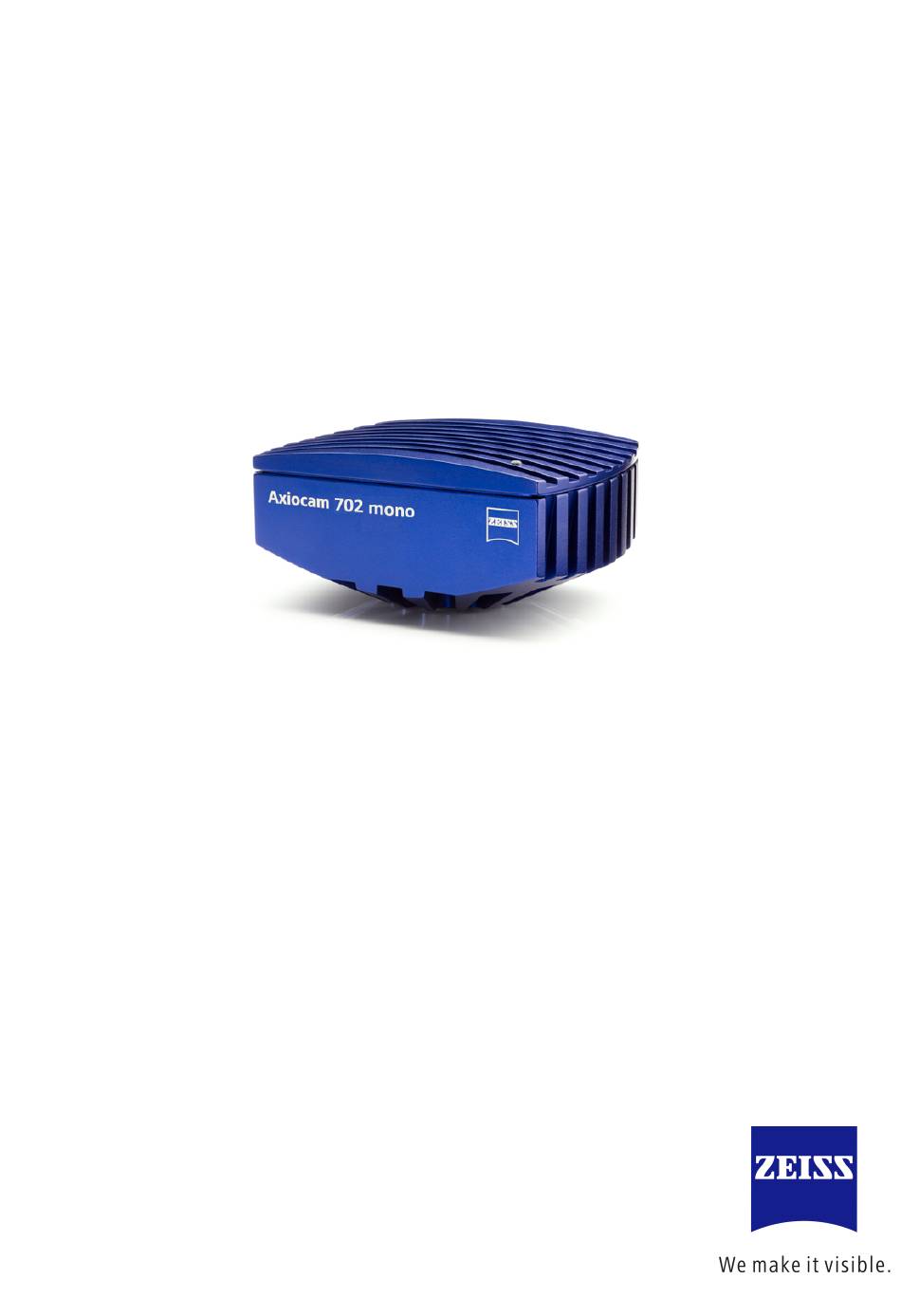

- Page 1 User Guide Axiocam 702 mono...
- Page 2 ZEISS. No program, documentation, or subsequent upgrade thereof may be disclosed to any third party, unless prior written consent of ZEISS has been procured to do so, nor may be copied or otherwise duplicated, even for the customer's internal needs, apart from a single back-up copy for safety purposes.
-
Page 3: Table Of Contents
22 7.1.2 You don't see a camera image on your screen 22 7.1.3 The color of my image does not correspond to the impression through the ocular 23 7.2 Hardware 23 7.2.1 Vibrations 23 User Guide Axiocam 702 mono | V1.0 en... - Page 4 Content Maintenance 24 8.1 Optical System 24 8.2 Cleaning the infrared filter or protective glass 24 Disposal and Recycling 25 User Guide Axiocam 702 mono | V1.0 en...
-
Page 5: About This Guide

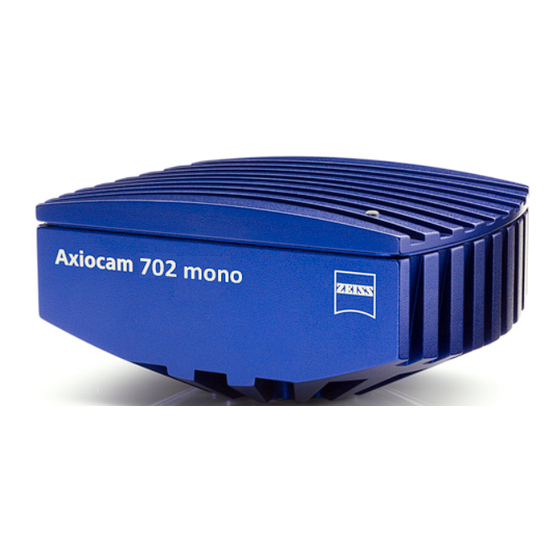

1 About this guide About this guide | 1.1 Introduction Welcome Welcome to the Axiocam 702 mono user documentation. The camera is a professional digital camera for universal light microscopy with a high resolution 2,3 Megapixel sensor and a USB 3.0 interface. -
Page 6: Safety Notes Conventions
INFO Indicates useful additional information. It helps you to make your daily work easier, but they are all optional. There is no risk for personal injury or property damage involved. About this guide | User Guide Axiocam 702 mono | V1.0 en... -
Page 7: Text Formats And Conventions
Web links do appear in blue text color. To open the linked website, simply right click on the link. Just in case you are not connected to the internet, make sure you have a internet connection established before opening the web link. User Guide Axiocam 702 mono | V1.0 en... -
Page 8: Safety
Safety | 2.1 Safety Notes The Axiocam 702 mono has been manufactured and tested by ZEISS according to the regulations specified in CE and has left the manufacturer’s premises in perfect working order. In order to ensure that this condition is maintained and to avoid any risks when operating the system, the user must comply with any notes and warnings contained in this manual. -
Page 9: Limitation Of Liability
Safety | 2.2 Limitation of liability No warranty shall be assumed by ZEISS during the warranty period if the equipment is operated without observing the safety regulations. In any such case, ZEISS shall be exempt from statutory liability for accidents resulting from such operation. -
Page 10: Technical Data
3 Technical Data | 3.1 Axiocam 702 mono 3 Technical Data Technical Data | 3.1 Axiocam 702 mono Feature Value Sensor Model Sony IMX 174 , Exmor Pregius Global Shutter Architecture, Active Pixel CMOS, Column ADC, pre-selected sensor quality Sensor Pixel Count 2.3 Megapixel: 1920 (H) ×... - Page 11 3 Technical Data | 3.1 Axiocam 702 mono Feature Value ¢ Data-Post Processing Objective specific shading correction (optional) ¢ Sharpening, Noise Filter ¢ Black Reference, Dark Current Compensation ¢ Special Features Time Stamp from Camera for precise acquisition time point ¢...
-
Page 12: Analog Signal Amplification And Typical Quality Parameters Of The Image Signal
3 Technical Data | 3.1 Axiocam 702 mono Feature Value Size / Weight 10.8 cm x 7.8 cm x 4.3 cm / 500 g Housing Blue anodized aluminum, ¼“ thread for camera equipment, zero vibration by convection-cooling with optimized cooling fins,... -
Page 13: Frame Rates
Exposure time and sensor sub area (ROI) influence the maximum frame rate. 3.1.4 Spectral Sensitivity Fig. 1: Axiocam 702 mono with Sony IMX 174 sensor (maximum QE reduced by appr. 6% due to sensor cover slip) User Guide Axiocam 702 mono | V1.0 en... -
Page 14: Shipment
(USB 3.0 = blue cable) 1 x PCI express interface card ( 4 x USB 3.0) 1 x 15 Pin SATA power connector cable 1 x DVD with device driver for ZEISS software as well as this guide as a PDF file. Accessory (optional) Fig. 2: Axiocam trigger cable... -
Page 15: Connecting The Camera
This topic describes how to build in the PCI express interface card (4 x USB 3.0) into your PC. If the interface card is already built in you can continue with chapter Mounting the camera on the microscope [} 16]. User Guide Axiocam 702 mono | V1.0 en... -
Page 16: Mounting The Camera On The Microscope
Close the computer case and reconnect the peripherals. You can now mount the camera on the microscope and connect it to the PC via the USB 3.0 interface, see Mounting the camera on the microscope [} 16]. Connecting the camera | User Guide Axiocam 702 mono | V1.0 en... -
Page 17: Connecting The Camera To The Pc
LED will light red. If you start the software the LED will turn blue. You`ll find a detailed description of the LED status light in the chapter Function indicator [} 20] User Guide Axiocam 702 mono | V1.0 en... -
Page 18: Connecting The Trigger Cable
5 Connecting the camera | 5.5 Connecting the trigger cable Connecting the camera | 5.5 Connecting the trigger cable In this chapter you will learn how to connect the trigger cable (optional) to the camera and the SVB (signal distribution box). Fig. 4: Trigger cable User Guide Axiocam 702 mono | V1.0 en... - Page 19 Fig. 5: Signal distribution box (SVB) backside Plug the connector GPO 0 (2) in the socket Trigger In of the SVB (Signal distribution box). Connect the connectors GPOPWR (5) and AUXPWR (6) of the trigger cable together. User Guide Axiocam 702 mono | V1.0 en...
-
Page 20: Function Indicator
USB 3.0 connection (Camera) connected with USB 2.0 connection (PC) Power supply (USB 2.0 cable) not attached Power supply attached, no driver loaded, camera not yet initialized No light No power supply or software shut down (camera in power down mode) User Guide Axiocam 702 mono | V1.0 en... -
Page 21: Installing Software And Drivers
¢ Prerequisites To acquire images with the Axiocam 702 mono on a PC, you must install ZEISS software (e.g. ZEN or AxioVision). You will find the software installation on the DVD delivered. The camera drivers will be installed automatically during the installation of the software. -
Page 22: Trouble-Shooting
Execute an automatic exposure measurement. ¢ Check the display adjustments for the live image. ¢ Check the aperture diaphragm of the microscope. ¢ Check the position of the beam splitter between the ocular and the TV port. User Guide Axiocam 702 mono | V1.0 en... -
Page 23: The Color Of My Image Does Not Correspond To The Impression Through The Ocular
The intensity of light during exposure time can change as well. ¢ To avoid jolt use damping systems on your microscope. ¢ Repeat the shot and take care to ensure the conditions remain calm. User Guide Axiocam 702 mono | V1.0 en... - Page 24 (wool). Use cleaning fluid for optics/lenses only to clean the IR filter. Do not use tap water to clean the IR filter. User Guide Axiocam 702 mono | V1.0 en...
- Page 25 The product and its accessories comply with EU directives 2002/95/EC (RoHS) and 2002/96/EC (WEEE), insofar as these apply to this product. ¢ ZEISS has implemented a take-back and recycling process that ensures that proper recycling is carried out in accordance with the aforementioned EU directives.
- Page 26 Carl-Zeiss-Promenade 10 07745 Jena, Germany microscopy@zeiss.com www.zeiss.com/microscopy Carl Zeiss Microscopy GmbH Königsallee 9-21 37081 Göttingen Germany ZEISS reserves the right to make modifications to this document without notice. © Jena 2015 by Carl Zeiss Microscopy GmbH - all rights reserved...
