EqualLogic FS7500 Installation and Setup
2. Use a power cable with a C13 connector and a C14 connector to connect the controller's left power supply
to the output receptacle on the same BPS power module to which you connected the USB cable in the
previous step (see callout 2 in
power cable to the controller chassis.
3. Using a power cable with a C13 connector and a connector that fits the receptacle of your power source,
connect the controller's right power supply to a power source (callout 3 in
relief strap on the power supply to secure the power cable to the controller chassis.
For high availability, make sure the power source is not the same as the power source to which the BPS
power module is connected.
4. Repeat the three steps to connect the second controller to the other power module on the BPS.

Removing the Controller Bezel

To remove the FS7500 Controller bezel, see
1. Use the key to unlock the bezel, if it is locked (callout 3).
2. Push up on the release latch on the left side of the bezel and carefully pull out the bezel from the left side of
the controller (callout 2).
3. Holding the bezel, move it to the left to disengage the bezel from the right side of the controller (callout 1).
Figure 31). Use the cable strain relief strap on the power supply to secure the
Figure 32 and follow these steps:

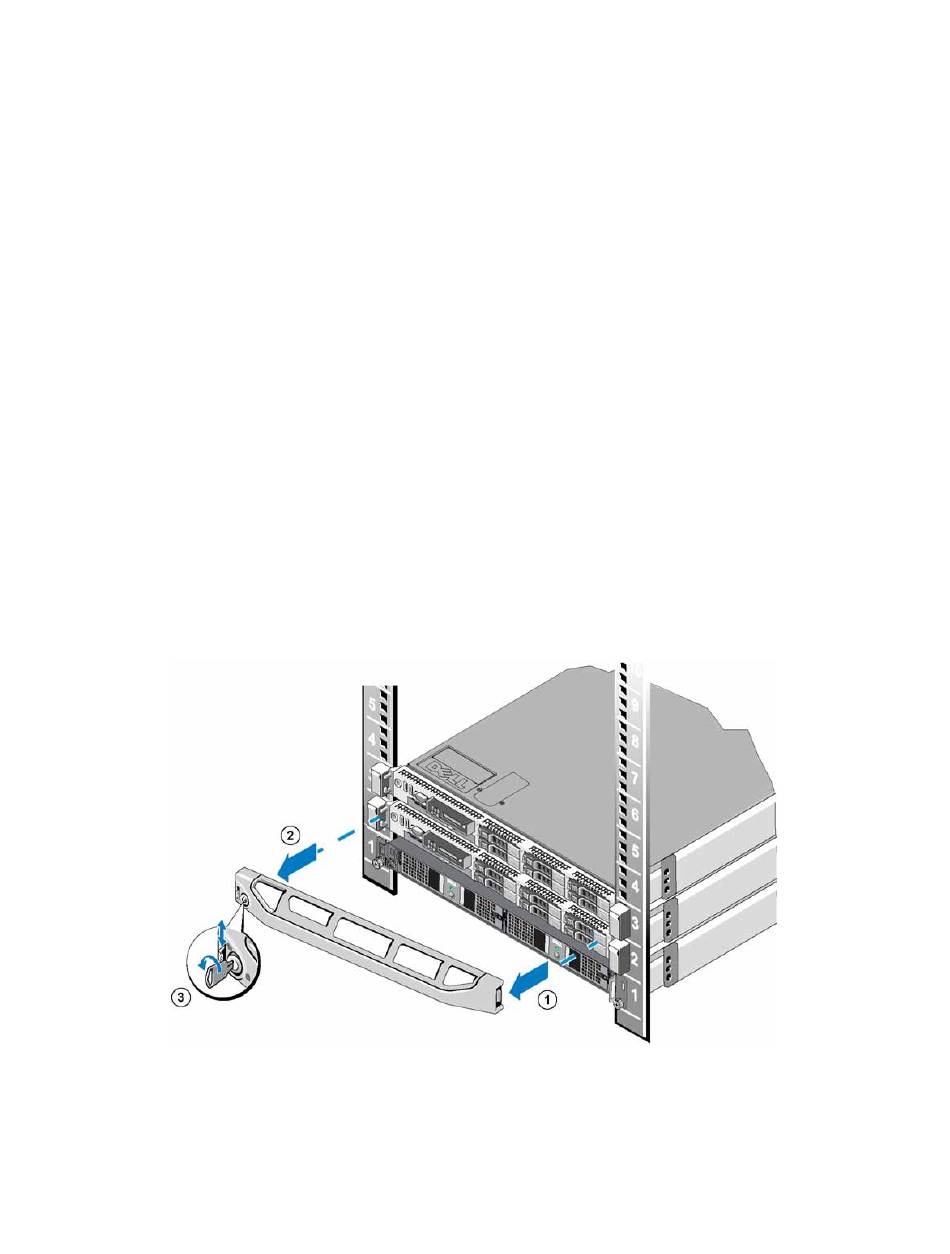

Figure 32: Removing the Controller Bezel
3 Power Connections
Figure 31). Use the cable strain
35
