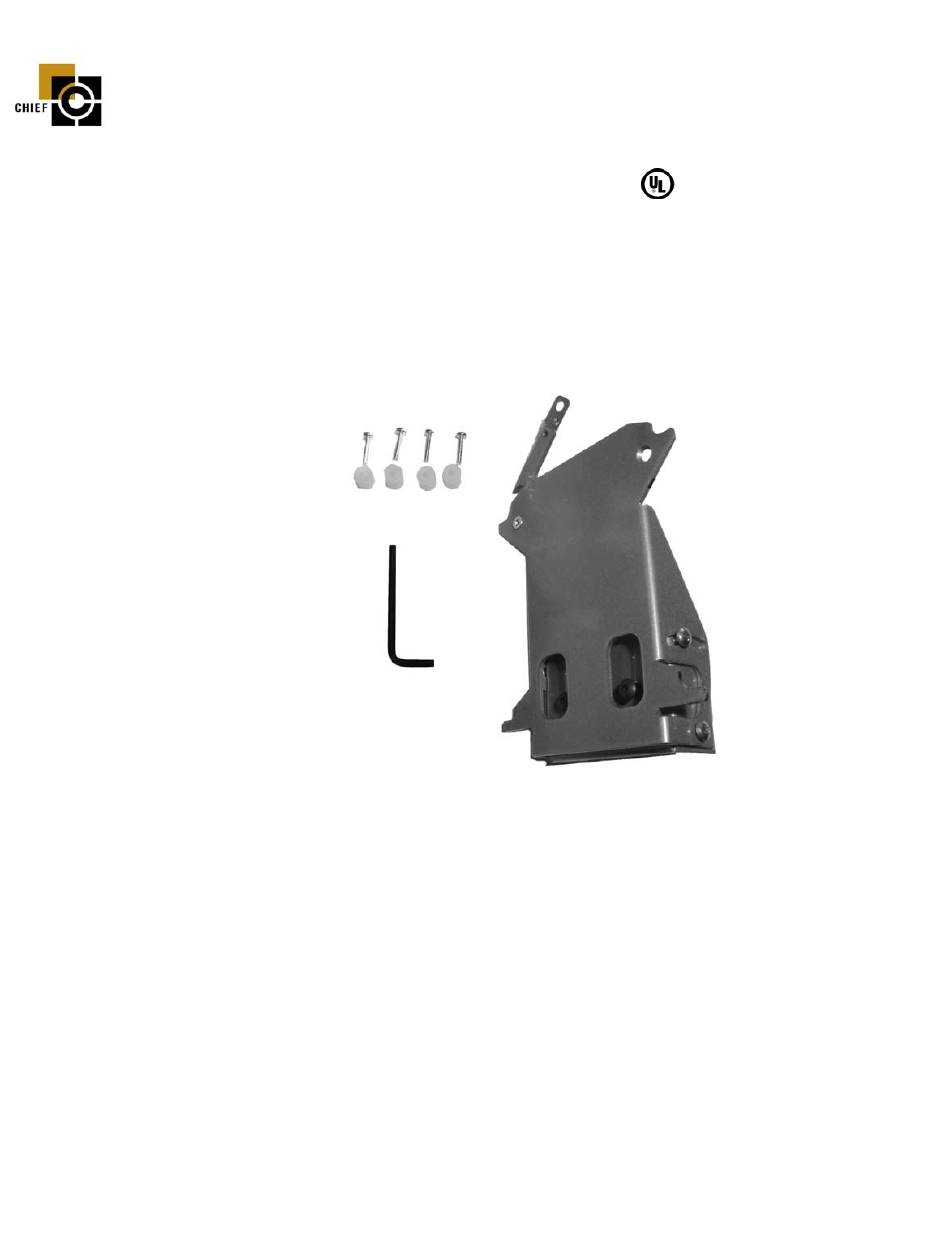

If you are missing any of the following components, please contact Customer Service at 1-800/582-6480.
(1) FSP Pole-Mounting Bracket
(4) 10-24 x 1.00 Self-tapping Screws
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
Interface Bracket Installation:
1. See installation procedures accompanying your mounting bracket.
Optional Latching Flag Placement:
1. Remove Phillips head screw, Nylock nut and latching flag (see Figure 2).
2. Reposition latching flag and secure using Phillips head screw, Nylock nut.
8804-000047
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com
INSTALLATION INSTRUCTIONS
FSP SERIES
SMALL FLAT PANEL DISPLAY
SINGLE SCREEN POLE MOUNT
Exclusive Q2™ Mounting System
Prior to assembly, unpack carton completely and verify contents.
The FSP will fit on any 1/1/2" to 2" O.D. pipe including 1 ½"NPT.
Flat Panel Displays are Extremely Fragile.
If Monitor Uses a Screw Size Other Than M4 X 10mm (M4 X 20mm),
DO NOT USE M4 Screws Provided. Monitor Damage Could Occur.
Figure 1
(4) ½" X ½" Nylon Spacers
(1) 5/32" Hex Key
01/04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CHIEF Exclusive Q2 FSP Series
Summary of Contents for CHIEF Exclusive Q2 FSP Series
- Page 1 1. See installation procedures accompanying your mounting bracket. Optional Latching Flag Placement: 1. Remove Phillips head screw, Nylock nut and latching flag (see Figure 2). 2. Reposition latching flag and secure using Phillips head screw, Nylock nut. 8804-000047 01/04 CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com...
- Page 2 Remove screw and nut Move latch Figure 2 Pole-Mounting Bracket Assembly and Installation: 1. For vertical pole mounting, install the pole-mounting bracket on 1 ½” to 2” OD pipe/pole and secure using two screws (see Figure 3) and hex key. 2.
