2.5. Wiring the Shunt Lock Components

We recommend that you use the following types of lines: J-Y(ST)Y 6 or 8 pin, Ø 0.6mm. The
diameter should be fit to the length of the line so that the minimum voltage for the
components never falls below +8 volt (voltage drop on the line).
ATTENTION: You should always shield longer lines.

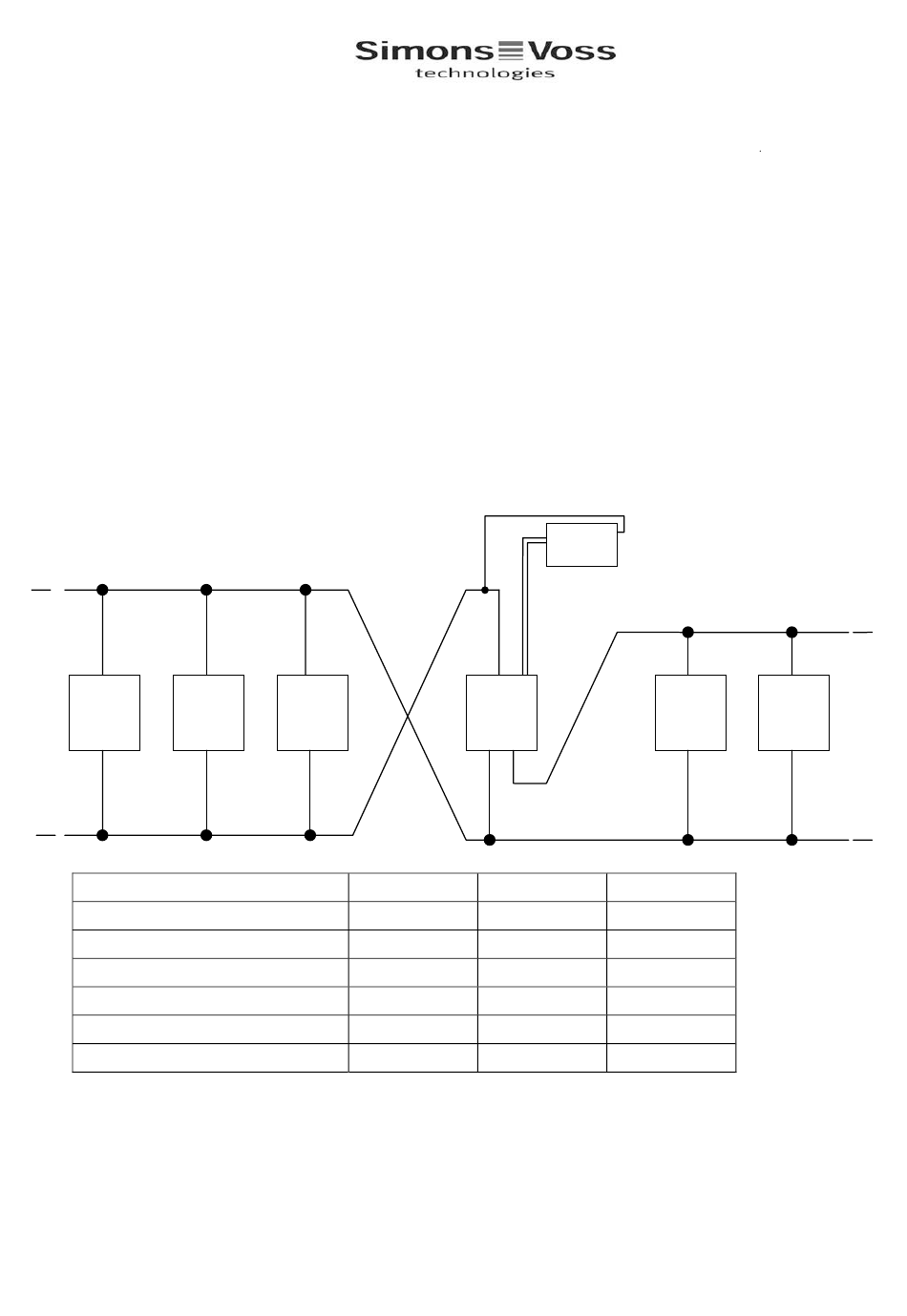

Connect the deactivation request, deactivation acknowledgement and activation request to
one another according to the drawing below.
Also connect the supply voltage everywhere (pins 1 and 2, with the positive on 1 and ground
on 2). Make sure that the polarity is correct. Then measure the voltage on all units and make
sure that the voltage never falls below a value of +8v and never exceeds +16V.
Deactivation acknowledge-
Pin 14 Pin 14
DA DA
Pin 13 Pin 13
Deactivation request
Deactivation request
Deactivation acknowledgement
Activation request
Activation suppression
Supply voltage positive
Supply voltage ground
DA = Deactivation unit
MA = Master activation unit
SA = Slave activation unit
VdS Version
VdS Shunt lock Function 3066
Pin 14
DA
Pin 13
DA
Solder pin 13
Solder pin 14
-
Solder pin 12
Solder pin 1
Solder pin 2
BAC
Pin 14 Pins 5,7
MA
Pin 13 Pin 12
MA
Solder pin 14
Solder pin 13
Solder pin 12
-
Solder pin 1
Solder pin 2
E16
Activation request
Pin 14 Pin 14
SA SA
Pin 13 Pin 13
SA
-
Solder pin 13
Solder pin 14
Solder pin 12
Solder pin 1
Solder pin 2
Version: December, 2003
