Summary of Contents for Yolink YS6802-UC/SH-18A

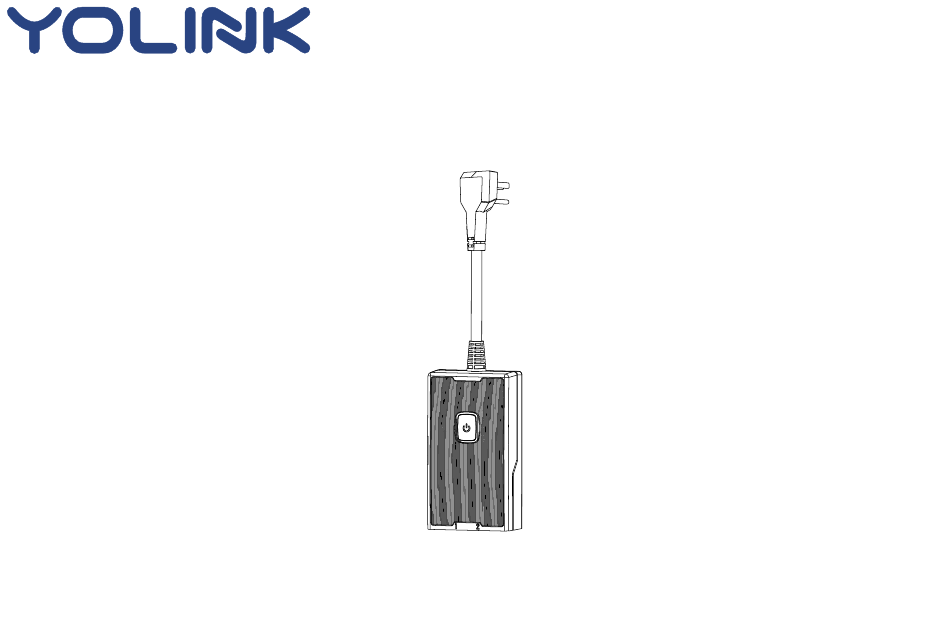

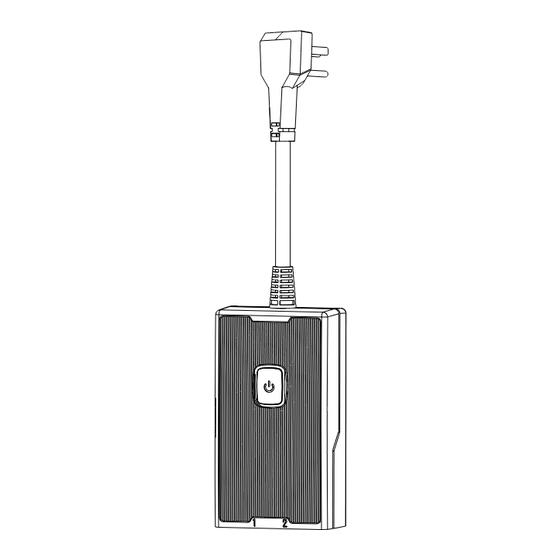

- Page 1 User Guide YS6802-UC/SH-18A Smart Switch...
-
Page 2: Table Of Contents
Product Requirements····························· ·········· ··· ···· ··3 · Set Up mart Switch ·························· ················· ··· ···· ·4 · Using YoLink A with Smart Switch·································8 YoLink Control ··········· ······················ ····· ····· ·········· · ·13 · ·· · Maintaining the Smart Switch ···············... -
Page 3: Introduction
Introduction With independent control of 2 smart outlets, you can easily control lights and home electronic devices via YoLink App on your iOS or Android device. POWER BUTTON Turn on or off Smart Switch OUTLET 2 Plug in your device and control it... - Page 4 LED light can show you the current status. See the explanation below: GREEN At least one outlet is on. All outlets are off. BLINKING GREEN Connecting to cloud. FAST BLINKING GREEN Set up connection with devices. SLOW BLINKING GREEN Updating. FAST BLINKING RED Remove connection with devices.
-
Page 5: Features
Features Individual Control - Independently control 2 smart outlets via YoLink App on your iOS or Android device. Control from anywhere - Control your Smart Switch remotely via YoLink App on your iOS or Android device. Timer & Schedule - Automatically turn on or off household appliance after or at a certain time. -
Page 6: Set Up Mart Switch
Set Up Smart Switch Follow the steps below to set up your Smart Switch via YoLink App. Step 1: Set up YoLink App Get the YoLink App from the Apple App Store or Google Play. - Page 7 Step 2: Log in or sign up with YoLink account Open the App. Use your YoLink account to log in. If you don’t have a YoLink account, tap Sign up for an account and follow the steps to sign up an account.
- Page 8 You can customize the name, set the room, add to/remove from favourite. a. Name - Name Smart Switch. b. Room - Choose a room for Smart Switch. c. Favourite - Click “ ” icon to add/remove from Favourite. Tap the “Bind Device” to add the device to your YoLink account.
- Page 9 Step 4: Connect to the cloud Plug into an outlet and your device will connect to the cloud automatically. Note Make sure you hub is connected to internet. Internet Cloud...
-
Page 10: Using Yolink App With Smart Switch
Using YoLink App with Smart Switch Details You can customize the name, set the room, add to/remove from favourite, check device history. a . N a m e - N a m e S m a r t S w i t c h o r 2 o u t l e t s i n d i v i d u a l l y. - Page 11 Timer With YoLink App, you can set up a timer to turn on or/and off 2 outlets individually. Tap the “ Smart Switch ” in App to go to its controls. Tap “Timer” for timer setting. Choose action from “ON”, “OFF”, or “ON then OFF”.
- Page 12 Schedule You can create ON/OFF schedules to automate your plugged-in devices to work around your home and work schedules. Tap the “ Smart Switch ” in App to go to its controls. Tap “Schedule” to open the Schedule screen, tap “ ”...
- Page 13 Scene Set one-click control for multiple devices in your YoLink App. Only one scene can be run at a time on YoLink App. Tap “Smart” to switch to Smart Screen. Tap “ ” to create your own Scene. To set a Scene, you will be able to put one or more devices under this scene, and define their actions...
- Page 14 Automation Automation allows you to set up “If this then that” rules so the devices could act automatically. Tap “Smart” to switch to Smart screen and tap “Automation”. Tap “ ” to create an automation. To set an Automation, you will need to set a trigger time, local weather condition, or choose a device with certain stage as a triggered condition.
-
Page 15: Yolink Control
YoLink Control YoLink Control is our unique “device to device” control technology. Under YoLink Control, the devices can be controlled without internet or Hub. Device which send out command is called controller(Master). Device which receive command and act accordingly is called responder(Receiver). - Page 16 Pairing Find a smart switch as controller(Master). Hold the power button for 5-10 seconds, the light will flash green quickly. Find another action device as responder(Receiver). Hold the power/set button for 5-10 seconds, the device will enter pairing mode. After pairing succeed, the light will stop flashing. When the smart switch turns on, the responder will turn on as well.
- Page 17 YoLink Control Diagram OPENED OPENED CLOSED CLOSED TURN OFF TURN ON TURN OFF TURN OFF PAIRED UNPAIRED...
-
Page 18: Maintaining The Smart Switch
Maintaining the Smart Switch Firmware Update E n s u r e o u r c u s t o m e r h a v e t h e b e s t u s e r e x p e r i e n c e . H i g h l y r e c o m m e n d y o u c o u l d u p d a t e o u r n e w e s t v e r s i o n fi... - Page 19 Factory reset will erase all your settings and bring it back to default. After the factory reset, your device will still in your Yolink account. Hold the power button for 20-25 seconds until the LED blinks red and green alternately.
-
Page 20: Specifications
Specifications Input: 15A 125V 50/60Hz Output: 15A Resistive, 125V Max 1875W Working Temperature:-10℃ ~ 50℃ (14℉ ~ 122℉) Environment: Working Humidity: 20% ~ 90%... -
Page 21: Troubleshooting
There was a power blackout before turn on/off the smart switch also you can Timer does not run. timer executes. turn on/off smart switch via YoLink App or set a new timer. Other problems. Please contact customer service. -
Page 22: Customer Service & Warranty
If you are unable to get your smart switch working Please contact Our Customer Service during business hours US Live Tech Support: 1-844-292-1947 M-F 9am - 5pm PST Email: support@YoSmart.com YoSmart Inc. 17165 Von Karman Avenue, Suite 105, Irvine, CA 92614 WARRANTY 1 Year Limited Electrical Warranty YoSmart warrants to the original residential user of this product that it will be free from defects in materials... - Page 23 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 24 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations.
