- Page 1 YoLink SpeakerHub YS1604-UC Set-up & User Guide Rev 1.3 July 27, 2022...
-
Page 2: Table Of Contents
PAGE Thank you! Introduction Before You Begin What’s in the Box? Get to Know Your SpeakerHub Install the YoLink App Open the App Add Your SpeakerHub to the App Power Up the SpeakerHub Mobile Device Settings Connect Hub to WiFi... -
Page 3: A Thank You
Thank you for purchasing YoLink products! Whether you are adding additional hubs to expand your system's range or if this is your first YoLink system, we appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfaction is our goal. If... -
Page 4: B Introduction
Introduction YoLink Hubs are the gateway to the internet for your YoLink devices. As opposed to many smart home systems, the individual devices are on your network or WiFI and are not directly connected to the internet. Instead, your devices communicate with the Hub, which connects to the internet, the cloud server and the app. -
Page 5: C Before You Begin
Before You Begin Find a suitable place for your SpeakerHub to live. SpeakerHub wants to be indoors, clean and dry. SpeakerHub is not designed for wall-mounting. Place your SpeakerHub at a location where you can hear the speaker clearly, at a moderate volume level. Avoid placing your SpeakerHub inside a cabinet, or on or near metal, magnets, or sources of radio or electromagnetic energy or interference, such as radio transmitters, as well as other... -
Page 6: D What's In The Box
What’s in the Box? Quick Start Guide SpeakerHub USB Cable AC Adapter (“Micro B”) Power Supply... -
Page 7: E Get To Know Your Speakerhub

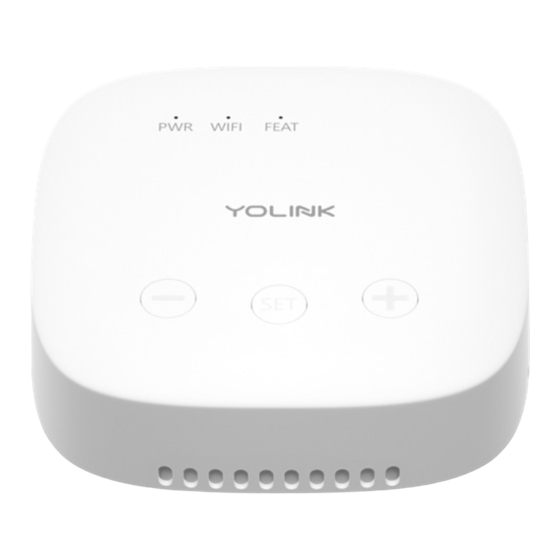

Get to Know Your SpeakerHub Please take a moment to familiarize yourself with your new SpeakerHub, in particular the LED behaviors and SET button functions. LED Behavior explanations Power Status LED WiFi Status LED Feature Status LED... -
Page 8: F Install The Yolink App
Install the YoLink App If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to part Scan the appropriate QR code below or find the “YoLink app” on the appropriate app store. -
Page 9: G Open The App
Open the App You will immediately receive a welcome email from no-reply@ yosmart.com with some helpful information. Please mark the yosmart.com domain as safe, to ensure you receive important messages in the future. Scanner icon Log in to the app using your new username and password The app opens to the... -
Page 10: H Add Your Speakerhub To The App
Add Your SpeakerHub to the App Approve access to your phone’s camera, if requested. A viewfinder will be shown on the app. Hold the phone over the QR code (on the underside of the hub) so that the code appears in the viewfinder. If successful, the Add Device screen will be displayed If you experience difficulties scanning in a new device, ensure the code is not dirty or smudged, and that the... - Page 11 Add Your SpeakerHub to the App, Cont. You can change the device name and assign it to a room later. Ensure that the Favorite icon is selected as shown (red heart). Tap Bind device If successful, the screen will appear as shown. Tap Done (do not tap “set up WiFi connection”...
-
Page 12: I Power Up The Speakerhub
Power up the SpeakerHub Connect the supplied USB cable to the hub and to the power adapter as shown. Plug in the adapter. Observe the green power (PWR) LED is blinking... -
Page 13: Mobile Device Settings
To check or edit Location Services on your phone: iOS: Go to Settings, tap Privacy, tap Location Services Ensure Location Services is on/enabled. Scroll down to and tap the YoLink app Select While Using the App Enable Precise Location Android: Go to Settings, tap Location. - Page 14 Mobile Device Settings, Continued In your phone, open WiFi settings (Settings, WiFi) Identify your 2.4 GHz network, if possible. If there is only one SSID (network ID) you recognize, you will use that one Select the appropriate network and log-in, if needed If your SSID is hidden, you must manually log into it on your phone, by selecting “Other...”...
-
Page 15: K Connect Hub To Wifi
Connect Hub to WiFi From the Rooms or Favorites screen, tap on the SpeakerHub icon, as shown in the left figure Tap on the WiFi icon as shown on the right figure... - Page 16 Connect Hub to WiFi, Continued Please review the instructions on the Setup Wi-Fi screen. After pressing the SET button on the SpeakerHub, you will then log into the SpeakerHub’s hotspot on your phone. This will need to be done with no delays between steps, otherwise the Hub will exit hotspot mode (in 5 minutes).
- Page 17 Connect Hub to WiFi, Continued As directed in the app, press the hub’s SET button for seconds or until the WiFi LED flashes rapidly Log-in to the SpeakerHub hotspot. It is identified as YS_1604000bc7. Disregard any messages about no internet connection.
- Page 18 Connect Hub to WiFi, Continued If you see a “connect to device timeout” message, Close Return to the app. Check the “Please confirm the above operation” checkbox. Tap Continue. Enter WiFi Password screen appears as shown MyWiFi In the Choose a WiFi box, select or enter your 2.4 GHz SSID (unless it is hidden, it should appear in the list, when you tap in this area).
- Page 19 Connect Hub to WiFi, Continued The “Set up WiFi successfully” message should appear on the screen as shown. Tap Done The SpeakerHub’s blue internet status LED should be on, indicating an internet connection is established At first, in the app, your SpeakerHub may appear offline. Tap the Refresh icon or swipe down on the screen to refresh the screen.
-
Page 20: L Introduction To The App
New to the YoLink app? Please visit our SpeakerHub support page, for additional support information and resources for your SpeakerHub, as well as for the YoLink app. Take a look around the SpeakerHub area, then, click YoLink Academy for documents and videos that will explain the features of the app and show you how to change notification settings, and how to set up scenes and automations, etc. -
Page 21: M Speakerhub Device Settings
SpeakerHub Device Settings From the Rooms screen, tap the SpeakerHub icon. Please review the image before tapping the three dots (“more”) icon. Tap to view or edit device Indicates internet connection settings Your WiFi SSID MyWiFi Tap to disable the speaker ... - Page 22 SpeakerHub Device Settings, Continued Please review the summary of the SpeakerHub device details screen before proceeding to the next step. Device type Device name Device room Favorite icon (select to add the device to your Favorites screen) Alarm strategy for this ...
- Page 23 SpeakerHub Device Settings, Continued Your WiFi network name IP Address info Device model number Device EUI (ID) number Device serial number Device firmware version (see part P) Tap to delete the device from your account...
- Page 24 SpeakerHub Device Settings, Continued Your SpeakerHub can broadcast a message via the following methods: • Manually, from the device screen • Automatically per your Alarm Strategy settings • As part of a scene, triggered from a strategy, manually triggered by the user in the app, manually triggered by an AlarmFob or FlexFob activation •...
- Page 25 SpeakerHub Device Settings, Continued Tap the back arrow to return to the main SpeakerHub screen shown in step 1. Tap the “play” icon (triangle) This screen is used to create a one-time broadcast over the SpeakerHub. It is also good for testing your messages before adding them to a scene or automation.
- Page 26 Message: “Garage door one is still open” Messages you configure here are not saved. This is for testing a message or sending a one-time broadcast. Configure custom messages in Scenes or Automation. See our YoLink Academy tutorials for more information!
-
Page 27: N Advanced Settings
(or all of the above!). Visit the SpeakerHub product support page, as well as the YoLink Academy page, to learn how to configure custom alert messages, and automations, to tailor SpeakerHub to your application and your requirements. -
Page 28: O Firmware Updates
Firmware Updates Your YoLink products are constantly being improved, with new features added. It is periodically necessary to make changes to your device's firmware. For optimal performance of your system, and to give you access to all available features for... -
Page 29: P Factory Reset
Factory Reset Factory reset will erase device settings and restore it to factory defaults. Doing a factory reset will remove the device from your account and it will not harm the device and will lose any data or require you to re-do your automations, etc. Only deleting a device from the app will remove it from your account Instructions:... -
Page 30: Qce Mark Warning
The simplified UK declaration of conformity referred shall be provided as follows: Hereby, YoSmart Inc. declare that the radio equipment type YoLink SpeakerHub is in compliance with Directive UK Radio Equipment Regulations (SI 2017/1206);... -
Page 31: R Warranty
This warranty does not cover abuse or misused products or products used in commercial applications. This warranty does not apply to YoLink devices that have been improperly installed, modified, put to a use other than designed, or subjected to acts of God (such as floods, lightning, earthquakes, etc.). -
Page 32: T Contact Us / Support
Contact Us / Customer Support We are here for you, if you ever need any assistance installing, setting up or using a YoLink app or product! Need help or have questions? Please email us 24/7 at service@yosmart.com For additional SpeakerHub support resources, visit our SpeakerHub support page at: www.yosmart.com/speakerhub-product-support...
