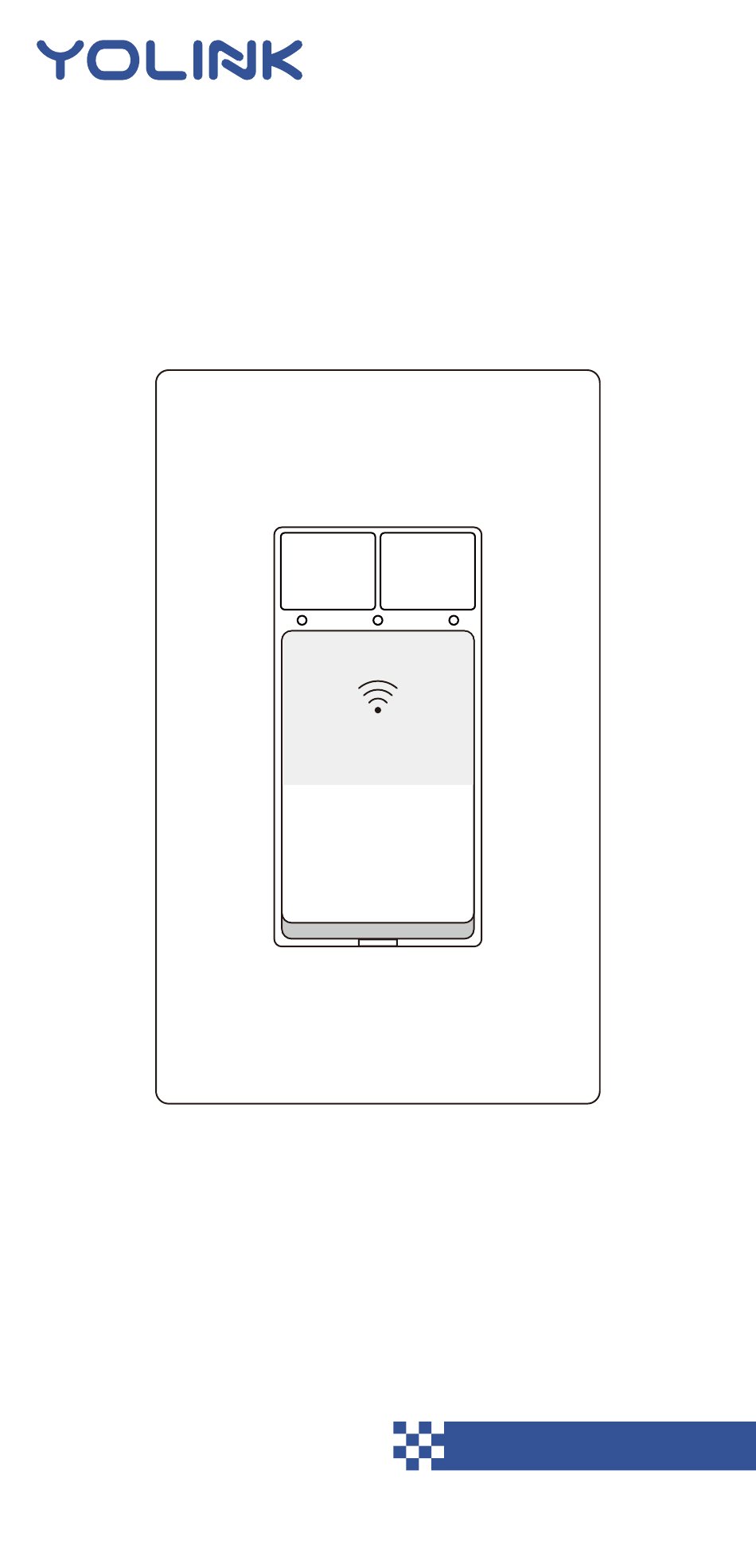

- Page 1 Switch/Fob YS3615-UC Installation & User Guide Revision Apr. 10, 2023...
- Page 2 TABLE OF CONTENTS . Welcome! . Before You Begin . In the Box . Required Items . Get to Know Your Smart Motorized Valve . Install the App . Add Your Valve to the App . Installation . Using the App & 3rd-Party Services .
- Page 3 Welcome! Thank you for purchasing YoLink products! We appreciate you trusting YoLink for your smart home & automation needs. Your 100% satisfaction is our goal. If you experience any problems with your installation, with our products or if you have any questions that this manual does not answer, please contact us right away.
- Page 4 Before You Begin Visit our Dimmer Switch support page on our website, for the latest installation guides, additional resources, information and videos by visiting: www.shop.yosmart.com/pages/valve- controller-2-product-support Or by scanning the QR code: Download the most current version of the user guide by scanning the QR code:...
- Page 5 The Smart Motorized Valve can be installed on CPVC or PEX pipe using the appropriate male NPT thread to compression or push-fit copper, CPVC or PEX adapters. YoLink recommends SharkBite brand fittings. Visit sharkbite.com or find additional information on our Smart Motorized Valve Support page.
- Page 6 In the Box Dimmer Switch Quick Start Guide Faceplate Screws (2) Wire Connectors (4) & Electrical Box Screws (2) Required Items Tools you will need: Medium Phillips Screwdriver Small Slotted Screwdriver Tools you may need: Wire Strippers or Cutters Multimeter...
- Page 7 Get to Know Your Smart Motorized Valve Brightness Decrease Button Short press to decrease the brightness in order 100%->80%->60%->40%->20% Long Press to decrease by 1% Brightness Increase Button Short press to increase the brightness in order 20%->40%->60%->80%->100% Long Press to increase by 1% Brightness LED Indicate the current lighting brightness...
- Page 8 Install the App If you are new to YoLink, please install the app on your phone or tablet, if you have not already. Otherwise, please proceed to the next section. Scan the appropriate QR code below or find the “YoLink app” on the appropriate app store.
- Page 9 Add Your Dimmer Switch to the App 1. Tap Add Device (if shown) or tap the scanner icon: Scanner icon 2. Approve access to your phone’s camera, if requested. A viewfinder will be shown on the app. 3. Hold the phone over the QR code so that the code appears in the viewfinder.
- Page 10 Add Your Dimmer Switch to the App, Continued 4. You can change the device name and assign it to a room later. Tap Bind device. 5. If successful, the screen will appear as shown. Tap Done.
- Page 11 Installation, Continued 8. Terminate the wiring on the In-Wall Switch. Insert the respective wire into the appropriate screw terminal on the switch: Neutral wire in Neutral terminal Hot/Live wire in Live terminal Switch leg/light wire in Load terminal Ground wire in Ground terminal Figure 1 9.
- Page 12 Installation, Continued 10. Gently push the wiring and the switch into the electrical box. Then, using the original or included screws, secure the In-Wall Switch to the box. 11. If your In-Wall Switch is installed in a multi-gang box, save or discard the decorative trim plate.
- Page 13 Installation, Continued 12. Turn on power to the circuit by returning the circuit breaker to the on position (or reconnect power per your applicable circuit disconnection method). 13. Test the switch by turning it off and on and verifying the lights turn off and on with it. 14.
- Page 14 Using the App & 3rd-Party Services Please visit our website’s Support page for the YoLink app guide and for product-specific app settings and instructions: www.yosmart.com/support-and-service Factory Reset Factory reset will erase device settings and restore it to factory default settings. Doing a...
- Page 15 Firmware Update Your YoLink products are constantly being improved, with new features added. It is periodically necessary to make changes to your device's firmware. For optimal performance of your system, and to give you access to all available features for your devices, these firmware updates should be installed when they...
- Page 16 Press the power button once to turn on/off the switch, also you can turn on/off the switch via YoLink app or set a new timer. (When you add a resetting/one-time-use timer this will need to be amended with that new information.)
- Page 17 Warnings Please install, operate and maintain the In-wall Switch only as outlined in this manual. Improper use may damage the unit and/or void the warranty Do not load more than 10A(resistive) for the device. Other loads (15A, etc.) will damage the device, and power supplies other than the supplied unit may damage the device.
- Page 18 Warnings, Continued If your In-wall Switch does get dirty, please clean it by wiping it down with a clean, dry cloth. Do not use strong chemicals or detergents, which may discolor or damage the exterior and/or damage the electronics, voiding the warranty Do not install or use this device where it will be subjected to physical impacts and/or strong vibration.
- Page 19 Warranty 1 Year Limited Electrical Warranty YoSmart Inc. warrants to the original user (“customer”) of this product that it will be free from defects in materials and workmanship, under normal use, for 1 years from the date of purchase. This warranty does not apply to devices that have been improperly installed, modified, put to a use other than designed, or subjected to acts of God (such as floods,...
- Page 20 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 21 20cm distance between the radiator and your body: Use only the supplied antenna. PRODUCT NAME: Switch/Fob PARTY: YOSMART, INC. TELEPHONE: 831-292-4831 MODEL NUMBER: YS3615-UC ADDRESS: 15375 BARRANCA PKWY SUITE J-107, IRVINE, CA 92618 USA EMAIL: SERVICE@YOSMART.COM...
- Page 22 Support Home Page Finally, if you have any feedback or suggestions for us, please email us at feedback@yosmart.com Thank you for trusting YoLink! Eric Vanzo Customer Experience Manager 15375 Barranca Parkway Ste. J-107 | Irvine, California 92618 © 2023 YOSMART, INC IRVINE, CALIFORNIA...
