Yolink YS5705-UC User Manual

In-wall switch
Hide thumbs Also See for YS5705-UC:
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
YS5705-UC
In-wall Switch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YS5705-UC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yolink YS5705-UC

Summary of Contents for Yolink YS5705-UC

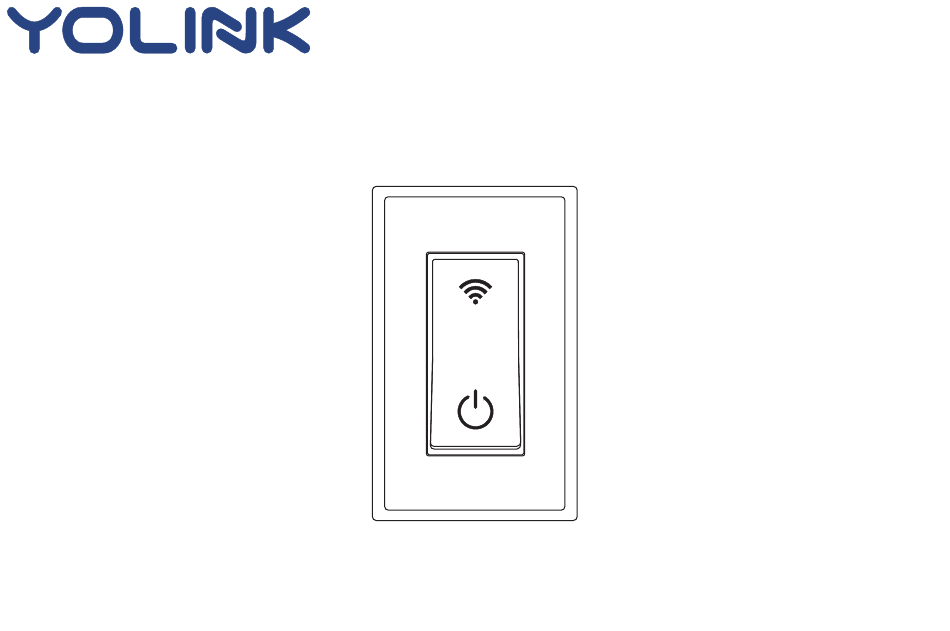

  • Page 1 User Guide YS5705-UC In-wall Switch...

  • Page 2: Table Of Contents

    Contents Introduction············································· ················· Features··················································· ··············· Product Requirements································ ················· Set Up In-wall Swit ch································ ·· ·· ·················· Installation··································································7 Using YoLink App with In-wall Switch·································11 YoLink Control ··········· ················· ······ ·· ····· ················16 Maintaining the In-wall Switch ················ ··············· ······· ··19 Specifications··································...

  • Page 3: Introduction

    In-wall Switch, is a standard, single-pole, wall light switch that can be controlled via your iOS or Android devices. Along with the YoLink App, connect the In-wall Switch to your home network, then control your lights and create custom lighting automation from anywhere, at anytime with an Internet connection.

  • Page 4: Features

    Features Control from anywhere - Control your In-wall Switch remotely via YoLink App on your iOS or Android device. Timer & Schedule - Automatically turn on or off light after or at a certain time. Scene - One-click control. Tap the scene button to automatically turn on or off your In-wall Switches and action of other devices.

  • Page 5: Set Up In-Wall Switch

    Set Up In-wall Switch Follow the steps below to set up your In-wall Switch via YoLink App. Step 1: Set up YoLink App Get the YoLink App from the Apple App Store or Google Play.
  • Page 6 Step 2: Log in or sign up with YoLink account Open the App. Use your YoLink account to log in. If you don’t have a YoLink account, tap Sign up for an account and follow the steps to sign up an account.
  • Page 7 - Click “ ” icon to add/remove from Favourite. Tap the “Bind Device” to add the device to your YoLink account. Follow the Installation to install the device, power it on. And the device is ready to go. Neutral W ire...
  • Page 8 Step 4: Connect to the cloud Power on the In-wall Switch and your device will connect to the cloud automatically. Note Follow the following page to install the device first. Make sure you hub is connected to internet. Internet Cloud...

  • Page 9: Installation

    Installation 1. Turn off the power to the switch at the main circuit breaker or fuse panel. WARNING: SHOCK HAZARD May result in serious injury or death. Turn off power at circuit breaker or fuse before installing. Important The fixture controlled by the in-wall switch must not exceed 960 watts (incandescent), 800w (10A) resistive or hp motor.
  • Page 10 2. Unscrew and remove the switch plate; then use a voltage tester to make sure that the circuit is dead. 3. Unscrew the switch from the electrical box and pull it out with the wires still attached. Hot Wire Ground Two or three wires will be attached to the switch: an incoming hot wire, which is black;...
  • Page 11 4 . C o m p a r e y o u r n e w s w i t c h w i t h t h e o n e y o u ’ r e r e p l a c i n g t o fi n d t h e c o r r e s p o n d i n g l o c a t i o n s f o r t h e e l e c t r i c a l s c r e w c o n n e c t o r s .
  • Page 12 6. Gently push the new, wired switch back into the electrical box and screw it in place. 7. Snap on the switch plate and turn power on at circuit breaker ‘Snap’ Screw the switch Snap on the plate Turn on the power...

  • Page 13: Using Yolink App With In-Wall Switch

    Using YoLink App with In-wall Switch Details You can customize the name, set the room, set power on again status, add to/remove from favourite, check device history. a. Name - Name In-wall Switch. b. Room - Choose a room for In-wall Switch.
  • Page 14 Timer With YoLink App, you can set up a timer to turn on or/and off your In-wall Switch Tap the “In-wall Switch ” in App to go to its controls. Tap “Timer” for timer setting. Choose action from “ON”, “OFF”, or “ON then OFF”.
  • Page 15 Schedule You can create ON/OFF schedules to automate your plugged-in devices to work around your home and work schedules. Tap the “In-wall Switch ” in App to go to its controls. Tap “Schedule” to open the Schedule screen, tap “ ”...
  • Page 16 Scene Set one-click control for multiple devices in your YoLink App. You only run a scene via your YoLink App. Tap “Smart” to switch to Smart Screen. Tap “ ” to create your own Scene. To set a Scene, you will be able to put one or more devices under this scene, and define their actions...
  • Page 17 Automation Automation allows you to set up “If This Then That” rules so the devices could act automatically. Tap “Smart” to switch to Smart screen and tap “Automation”. Tap “ ” to create an automation. To set an Automation, you will need to set a trigger time, local weather condition, or choose a device with certain stage as a triggered condition.

  • Page 18: Yolink Control

    YoLink Control YoLink Control is our unique “device to device” control technology. Under YoLink Control, the devices can be controlled without internet or Hub. Device which send out command is called controller(Master). Device which receive command and act accordingly is called responder(Receiver).
  • Page 19 Pairing Find an in-wall switch as controller(Master). Hold the power button for 5-10 seconds, the light will flash blue quickly. Find another action device as responder(Receiver). Hold the power/set button for 5-10 seconds, the device will enter pairing mode. After pairing succeed, the light will stop flashing. When the in-wall switch turns on, the responder will turn on as well.
  • Page 20 YoLink Control Diagram opened opened closed closed turn off turn on turn off turn off Unpaired Paired...

  • Page 21: Maintaining The In-Wall Switch

    Maintaining the In-wall Switch Firmware Update E n s u r e o u r c u s t o m e r h a v e t h e b e s t u s e r e x p e r i e n c e . H i g h l y r e c o m m e n d y o u c o u l d u p d a t e o u r n e w e s t v e r s i o n fi...
  • Page 22 Factory Reset Factory reset will erase all your settings and bring it back to default. After the factory reset, your device will still in your Yolink account. Hold the power button for 20-25 seconds until the LED blinks irregular blue slowly.

  • Page 23: Specifications

    Specifications Input/Output Voltage: AC100-120V 60Hz Maximum Current: Maximum Load: Incandescent Bulb: 960W Fluorescent Lamp: 400W Environment: Temperature: -30℃ ~ 70℃ (-22°F ~ 158°F) Humidity: 10%~90% non-condensing...

  • Page 24: Troubleshooting

    There was a power blackout before turn on/off the in-wall switch also Timer does not run. timer executes. turn on/off in-wall switch via YoLink App or set a new timer. Other problems. Product defective. Please contact customer service.
  • Page 25 If you are unable to get your switch working Please contact Our Customer Service during business hours US Live Tech Support: 1-844-292-1947 M-F 9am - 5pm PST Email: support@YoSmart.com YoSmart Inc. 17165 Von Karman Avenue, Suite 105, Irvine, CA 92614 WARRANTY 1 Year Limited Electrical Warranty YoSmart warrants to the original residential user of this product that it will be free from defects in materials...
  • Page 26 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 27 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations.
