ProGear Air Elliptical 1307 Owner's Manual

Hide thumbs Also See for Air Elliptical 1307:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT: Read all the instructions carefully before using this product. Retain
this owner's manual for future reference.
The specifications of this product may vary from this photo and, subject to change without
notice.
1307.8-042517
Air Elliptical
equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air Elliptical 1307 and is the answer not in the manual?

Questions and answers

Related Manuals for ProGear Air Elliptical 1307

Summary of Contents for ProGear Air Elliptical 1307

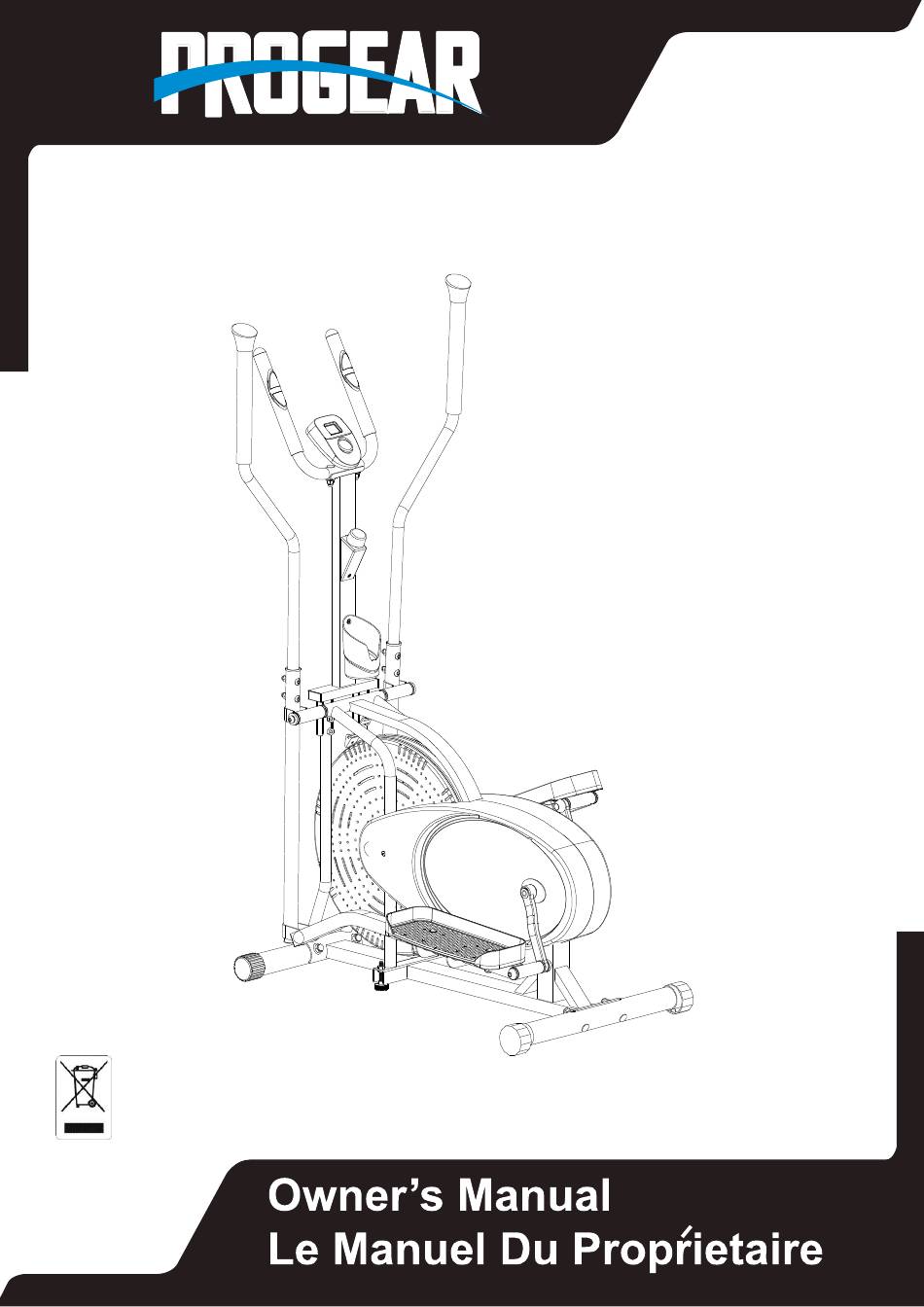

  • Page 1 Air Elliptical equipment IMPORTANT: Read all the instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and, subject to change without notice. 1307.8-042517...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7920 Hours: 8:00 am to 5:00 pm (PST) Daily...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE ------------------------------------------------------------------------------ LABEL PLACEMENT ---------------------------------------------------------------- IMPORTANT SAFETY GUIDELINES ------------------------------------------ OVERVIEW DRAWING ------------------------------------------------------------ PARTS LIST -------------------------------------------------------------------------- HARDWARE & TOOLS PACK --------------------------------------------------- ASSEMBLY --------------------------------------------------------------------------- CONSOLE ---------------------------------------------------------------------------- OPERATIONS & ADJUSTMENTS ---------------------------------------------- TRANSPORTATION ------------------------------------------------------------------ STORAGE & MAINTENANCE -------------------------------------------------- TROUBLESHOOTING -------------------------------------------------------------- WARRANTY --------------------------------------------------------------------------- PARTS REQUEST FORM --------------------------------------------------------...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Label Placement

    LABEL PLACEMENT...

  • Page 6: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Basic precautions should always be followed, including the following safety guidelines when using this equipment. Read all of the guidelines before using this equipment. Before exercising and to avoid injuring your muscles, it is highly recommended that you perform warm-up exercises for each muscle group.
  • Page 7 IMPORTANT SAFETY GUIDELINES Do not use this equipment if you have any of the following conditions or ailments:  Pregnancy  Extreme obesity  Middle ear infection  Hiatus hernia or Ventral hernia  Glaucoma, retinal detachment or conjunctivitis  Use of anticoagulants including Aspirin in high doses. ...

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Parts List

    PARTS LIST Description Description Handrail Arm End Cap Ø25 Bolt M8x43 Right Handrail Arm Washer Ø8 Ø25x1.8x990 Handrail Arm Foam Grip Nylon Nut M8 Ø24xØ34x280 Handrail Arm Plastic Bushing Right Crank 6.7" Ø32x1.5 Bolt M10x18 Spring Washer Ø20xØ13x2 Right Nylon Nut Crank 1/2” Spring Washer Ø10xØ18x3 D Washer Ø28xØ16xδ5 Computer Console M1202...
  • Page 10 PARTS LIST Description Description Tension Bracket Left Crank 6.7" Bolt M8x38 Left Foot Bar Nut M6 Left Handrail Fan Wheel Ø503x85 Sensor with Wire L=900 mm Fan Wheel Axle Tension Cable L=1020 mm M10x1xL150xL25xL40 Spacer Ø16xØ10x20 Cap Nut M8 Bolt M10x57 Big Curve Washer Ø8xØ20x2 Front Stabilizer End Cap Ø50 Flange Nut M10x1xB10...

  • Page 11: Hardware & Tools Pack

    HARDWARE & TOOLS PACK...

  • Page 12: Assembly

    ASSEMBLY TOOLS Open-Ended Flat Wrench STEP 1 1A Installing The Front Stabilizer: Ensuring that the ARROW STICKER IS POINTING UP so that the Transport Wheels (93) are parallel to the floor, align the holes of the Front Stabilizer (54) to the curved bracket at the front end of the Mainframe (59).
  • Page 13 ASSEMBLY TOOLS 6mm Allen Wrench 6mm Allen Wrench with Phillips Screwdriver Multi-Hex Tool With PRE-INSTALLED HARDWARE Phillips Screwdriver (5) Bolt (22) Wave Washer (7) D Washer (6) Spring Washer Open-Ended Flat 2PCS 2PCS 2PCS 2PCS Wrench STEP 2 2A Greasing The Rotation Rod: Remove the Pre-Assembled two Bolts (5), two Spring Washer (6), two D Washers (7), two Wave Washer (22) from the Rotation Rod (60).
  • Page 14 ASSEMBLY TOOLS 6mm Allen Wrench Multi-Hex Tool With Phillips Screwdriver Open-Ended Flat Wrench 8mm Allen Wrench Important: Installing right bolt into right crank can only be done by R for right bolt turning right (CLOCKWISE). STEP 3 3A Foot Pedal Support Bracket and Right Crank Bolt Installation: Attach the Foot Pedal Support Bracket (18) onto the right side of the Right Foot Bar (17) using two Bolts (23), two Washers (24), and two Nylon Nuts (25).
  • Page 15 ASSEMBLY Figure A Note: Figure A shows the correct installation of the Right Crank Bolt (21). Keep the bolt perfectly straight when the bolt goes through the Right Foot Bar (17), and is being screwed into the Right Crank (26). If the bolt is screwed into the crank at an angle, this may damage the equipment.
  • Page 16 ASSEMBLY TOOLS 6mm Allen Wrench Multi-Hex Tool With Phillips Screwdriver Open-Ended Flat Wrench 8mm Allen Wrench Important: Installing left bolt into left crank can only be done L for left bolt by turning left (COUNTER-CLOCKWISE). STEP 4 4A Foot Pedal Support Bracket and Left Crank Bolt Installation: Attach the Foot Pedal Support Bracket (18) onto the left side of the Left Foot Bar (76) using two Bolts (23), two Washers (24), and two Nylon Nuts (25).
  • Page 17 ASSEMBLY Figure A. Note: Figure A shows the correct installation of the Left Crank Bolt (64). Keep the bolt perfectly straight when the bolt goes through the Left Foot Bar (76), and is being screwed into the Left Crank (75). If the bolt is screwed into the crank at an angle, this may damage the equipment.
  • Page 18 ASSEMBLY TOOLS Open-Ended Flat Wrench STEP 5 5A Right Pedal Installation: Attach the Right Foot Pedal (19R) onto the top of the right side Foot Pedal Support Bracket (18) located on the Right Foot Bar (17) with two Bolts (20) and two Nylon Nuts (14).
  • Page 19 ASSEMBLY TOOLS 6mm Allen Wrench Open-Ended Flat Wrench STEP 6 6A Right Handrail Arms Installation: Insert the Right Handrail Arm (2) with the handlebar grip bent outwards into the Right Lower Handrail (9) and align the holes. Secure the Right Handrail Arm (2) using two Big Curve Washers (81), two Bolts (47), and two Cap Nuts (80).
  • Page 20 ASSEMBLY Figure B Figure C TOOLS Multi Hex Tool with Phillips 6mm Allen Wrench with Screwdriver Phillips Screwdriver STEP 7 7A Support Frame Handlebar Installation: As you begin to mount the Hand Pulse Handlebar Support Frame (41) to the Mainframe (59), insert the Tension Cable (79) through the bottom opening in the shaft of the Hand Pulse Handlebar Support Frame (41) and pull it out through the shaft opening located midway up the support frame.
  • Page 21 ASSEMBLY Figure D Figure E Figure F STEP 8 8A Connecting The Tension Cable From The Knob To The Tension Cable: First turn the Tension Control Knob (37) to the lowest setting COUNTER-CLOCKWISE. Hook the end of the resistance cable connected to the Tension Control Knob (37) to the Tension Cable (79), see Figure D.
  • Page 22 ASSEMBLY TOOL Open-Ended Flat Wrench STEP 9 9A Hand Pulse Handlebar Installation: Mount the Hand Pulse Handlebar (33) onto the top support bracket of the Hand Pulse Handlebar Support Frame (41) with two Carriage Bolts (39), two Cap Nuts (80), and two Big Curve Washers (81). Using the Open-Ended Flat Wrench, tighten the Cap Nuts (80) until they are firm and secure.
  • Page 23 ASSEMBLY STEP 10 10A Computer Console Installation: Connect the Extension Sensor Wire (10) coming out from the top side of the Hand Pulse Handlebar Support Frame (41) to the wire with a male connector coming out from under the Computer Console (29). Make sure the connectors “click” when connected.

  • Page 24: Console

    CONSOLE SPECIFICATIONS: TIME ---------------------------------------------------- 00:00-99:59 MIN: SEC SPEED ------------------------------------------------- 0.0-999.9 DISTANCE -------------------------------------------- 0.00-99.99 MILE CALORIE ---------------------------------------------- 0.0-999.9 KCAL PULSE ------------------------------------------------- 40-200 USING YOUR CONSOLE The computer console can be activated by pressing the MODE button or by pedaling. If you leave the equipment idle for 4 minutes, the power will turn off automatically.

  • Page 25: Operations & Adjustments

    OPERATIONS & ADJUSTMENTS Adjusting the Tension Control Knob To increase the tension, turn the Tension Control Knob (37) in a CLOCKWISE direction. To decrease the tension, turn the Tension Control Knob (37)in a COUNTER-CLOCKWISE direction. NOTE: After prolong use of the equipment, the Tension Strap (63) will begin to stretch out and it will become necessary to tighten the strap for optimum performance.
  • Page 26 OPERATIONS & ADJUSTMENTS Adjusting the Rear Stabilizer End Cap The air elliptical has to be set up on a flat surface. Otherwise, shaking or wobble might occur during the workout. Please use the following two methods to adjust the air elliptical.

  • Page 27: Transportation

    TRANSPORTATION Transporting the elliptical equipment Hold the Hand Pulse Handlebar (33) and slowly lean the machine towards you until the Transport Wheels (93) on the Front Stabilizer (54) make contact with the floor. Push or pull the unit to the desired location.

  • Page 28: Storage & Maintenance

    STORAGE & MAINTENANCE Regular maintenance of the equipment is necessary to extend the life and will allow it to continue to function properly. Please keep the air elliptical, especially the computer console, out of direct sunlight to prevent screen damage or premature wear. Cleaning Keep the machine clean and free of any debris by vacuuming around the moving parts and wiping the machine down with a clean cotton cloth.

  • Page 29: Troubleshooting

    TROUBLESHOOTING PROBLEM SOLUTION The computer console will not Check that the batteries are inserted power up. properly with the correct polarity (see markings on the inside of the battery compartment. Check that the battery springs are in proper contact with batteries. Remove the old batteries and replace with the new batteries.
  • Page 30 TROUBLESHOOTING PROBLEM SOLUTION The elliptical equipment is not sturdy 1. Make sure both the Adjustable Levelers (57) are enough. touching the ground. 2. Make sure the elliptical equipment is leveled. Please refer to page 24. The tension adjustment doesn't 1. Undo the buckle of the Plastic Clip (95) and then pull the work.

  • Page 31: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 32: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)______________________________________________________________________ (Night)_____________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” This form can also be faxed to #: 626-810-2166...
