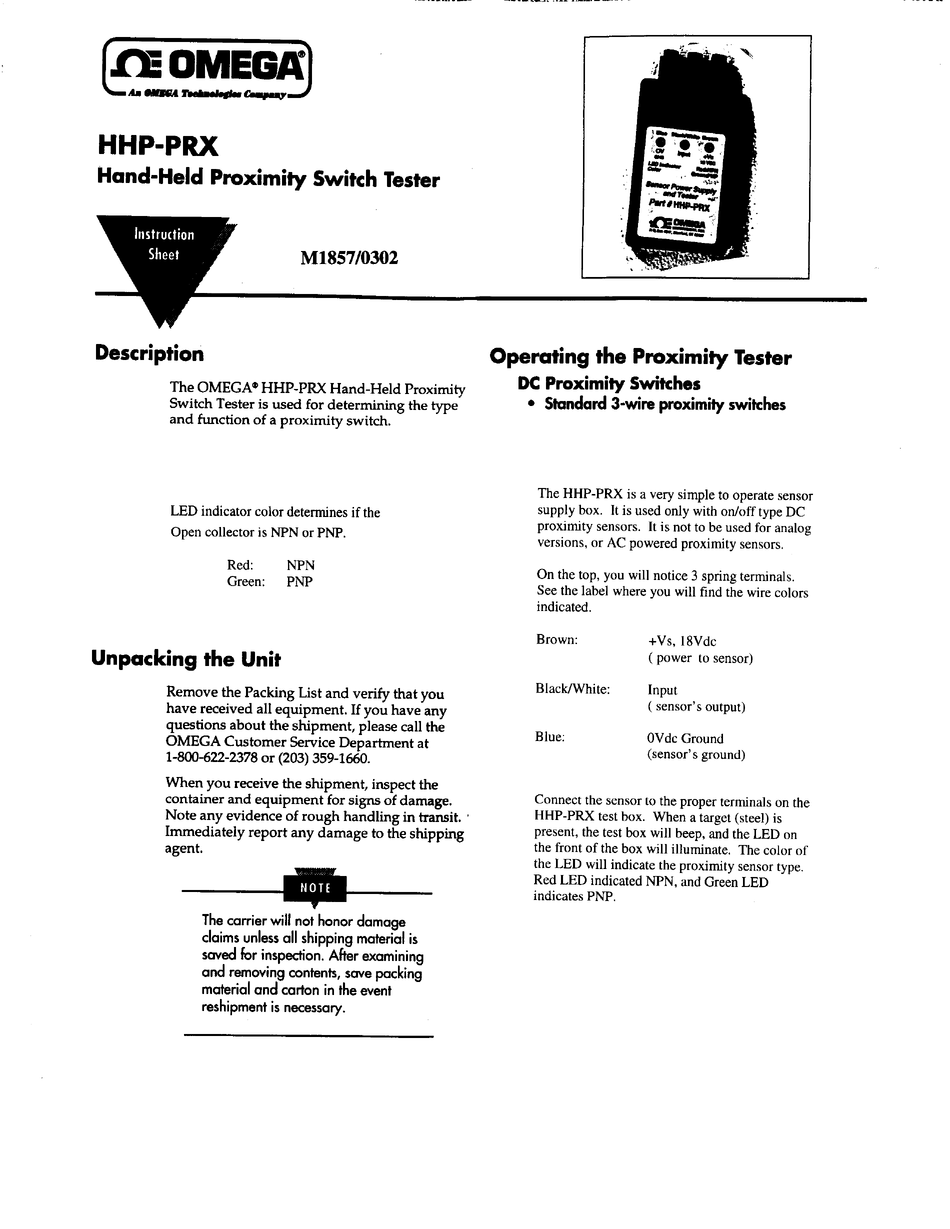

Omega HHP-PRX Instruction Sheet

OVdc Ground
(sensor' s ground)
Connect the sensor to the proper terminals on the
HHP-PRX test box. When a target (steel) is
present, the test box will beep, and the LED on
the front of the box will illuminate. The color of
the LED will indicate the proximity sensor type.
Red LED indicated NPN, and Green LED
indicates PNP.
The carrier will not honor damage
claims unless all shipping material is
saved for inspection. After examining
and removing contents, save packing
material and carton in the event
reshipment is necessary.
18Vdc
( power to sensor)
Black/White: Input
( sensor' s output)
Blue:
+Vs,
'
Immediately report any damage to the shipping
agent.
The HHP-PRX is a very simple to operate sensor
supply box. It is used only with on/off type DC
proximity sensors. It is not to be used for analog
versions, or AC powered proximity sensors.
On the top, you will notice 3 spring terminals.
See the label where you will find the wire colors
indicated.
Brown:
proximity switches
and function of a proximity switch.
LED indicator color determines if the
Open collector is NPN or PNP.
Red:
NPN
Green: PNP
Unpacking the Unit
Remove the Packing List and verify that you
have received all equipment. If you have any
questions about the shipment, please call the
OMEGA Customer Service Department at
l-800-622-2378 or (203) 359-1660.
When you receive the shipment, inspect the
container and equipment for signs of damage.
Note any evidence of rough handling in transit.
~-wire
HHP-PRX
Hand-Held Proximity Switch Tester
Description
Operating the Proximity Tester
The OMEGA@ HHP-PRX Hand-Held Proximity
Switch Tester is used for determining the type
DC Proximity
Switches
??
Standard
