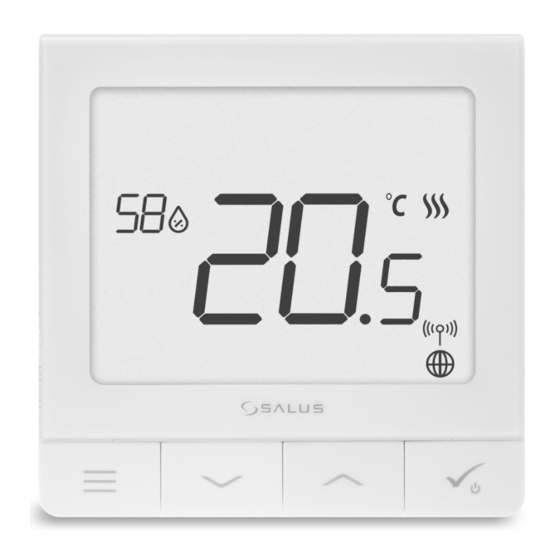

Salus Quantum SQ610 Manual
Smart thermostat
Hide thumbs
Also See for Quantum SQ610:
- Full user manual (72 pages) ,
- Manual (60 pages) ,
- Manual (58 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Salus Quantum SQ610
Summary of Contents for Salus Quantum SQ610
-
Page 2: Safety Information
KL08RF wiring centre, mini TRV head, RX10RF boiler control module. In order to control SQ610 over the Internet or via the SALUS Smart Home mobile app (ONLINE mode), it must be installed together with the UGE600 Internet gateway (sold separately). From the application level, it is possible to pair SQ610 with other system elements, e.g. - Page 3 LCD Icon Description Buttons Description Buttons Description Button Function 1) Menu button / Return button. 2) In the MAIN SCREEN: Press and hold for 3 sec to change the thermostat operating mode (Schedule mode / Permanent mode / Temporary override mode). 3) In the SETTINGS SCREEN: Press and hold for 3 sec to go back without saving the changes.
- Page 4 230V power Compatibile devices: then... YES - ONLINE, OFFLINE MODE. You can configure your thermostat with universal gateway or CO10RF coordinator. That is, add it to the Salus SPE600* KL08RF RX10RF SR600* Smart Plug...
- Page 5 Installation in ONLINE mode After Language selection follow below steps to add your device to the Smart Home app and pair with other devices: SALUS SmartHome Go to SALUS Smart Home app Connect equipment Name this equipment SQ610 230V Thermostat...
- Page 6 Pairing with TRV radiator head (Install the TRV according to the instructions included with Installation in OFFLINE mode product) Pairing with Wiring Centre / Control Box (Install the Wiring Centre / Control Box according to the 5 sec instructions included with product) 5 sec 5 sec.
- Page 7 Wired device Wiring diagram for control box connection: Please note: Legend: Thermostat SQ610 Quantum can work without Universal Gateway or CO10RF Coordinator as a standalone device. Pump Wiring diagram for volt-free connection (e.g. boiler control): Valve actuator Heating mat Boiler KL08 BOILER CONNECTIO N Boiler connection * - Boiler’...
- Page 8 S1/S2 input of SQ610RF. Additionally, by connecting a NO type of ON/OFF voltage- RESET USER SETTINGS free contact, you can use this input as a OneTouch rules trigger (programmed in the Salus Smart Home app) or as a Heat/Cool changeover.
- Page 9 English QUANTUM SQ610 Power Supply AC 230 V Temperature range 5-40°C Display temperature accuracy 0.5°C or 0.1°C Control algorithm ITLC SPAN (±0.25°C / ±0.5°C) S1-S2 Input Floor temperature (multifunctional input) Air temperature Occupancy sensor One Touch Changeover (heating/cooling) Output control COM –...
