Thermalright Silver Arrow ITX-R Instruction Manual

Silver Arrow ITX-R Rev. A Installation Manual
155
57 40
Please follow the Installation Guide before installing this product.
Please do NOT modify or disassemble this product.
Please keep this product AWAY from children.
Please do NOT use this product for the non-PC environment.
Please do NOT apply too much thermal paste will lower heat conductivity and cooling performance!
To prevent electrical shocks, please turn off system power and unplug the power of the system before
beginning the installation.
AMD AM4 Platform
A
1 3
Motherboard Front
B
2 2 4
Part List A
Nylon Tube x5
57
31 40 31 G
775 Back Plate Cap x1
M
Anti-Vibration Pad x12
D
5
C
6
B
C
6#32 L17 Screw x5 Anchoring Mount x1
H I
Mylar x1 Metal Back Plate x1
N O
TY-129B fans x1
Inside of mounting fan clips x2
E
M
F
7
D E
TF4 x1 M3L6 Screw x3
J K
Screw Nut x4
LGA 115x Screw Pillars x4
P Q
(L) (white) (red) (R)
Outside of mounting fan clips x2 Outside of mounting fan clips x2
N
N
O
www.thermalright.com
Tel: +886-2-2915-5005
Fax: +886-2-2915-5123
8
Email: support@thermalright.com
F
(43x2.6) Mounting Plate x1
L
LGA2011 Double Head Screw x4
R

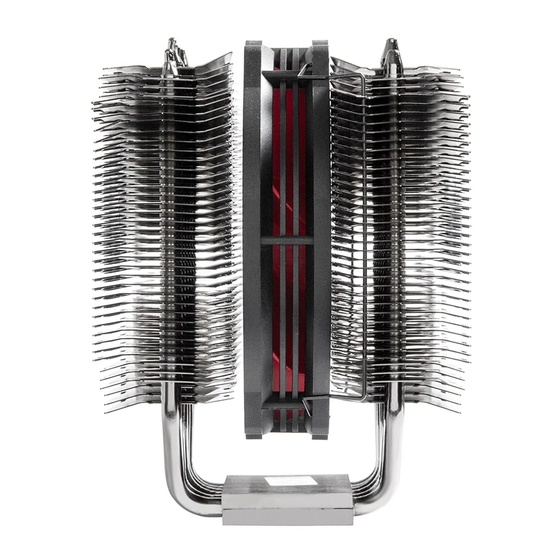

Silver Arrow ITX-R x1
