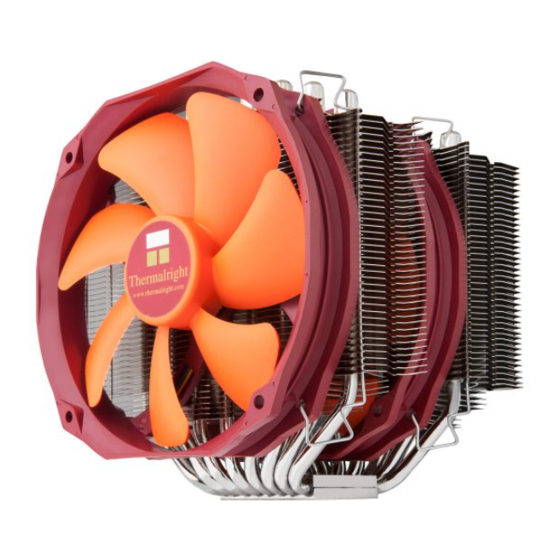

- Page 1 Thermalright Silver Arrow SB-E Extreme...
- Page 3 Silver Arrow SB-E Assembly package Extreme × 4 × 1 × 4 × 8 × 4 × 6 × 4 × 4 × 1 × 1 × 1 × 6 × 1 × 1 × 1...
-
Page 4: Exploded View
Silver Arrow SB-E Extreme Intel 775/1155/1156/1366 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com TY143 Fan Fan Clip Anti Vibration Pads Heatsink Body M3 L6 Screw Anchoring Mount Wrench Mounting Plate Screw Nut... - Page 5 Component Heatsink Body ×1 Anchoring Mount ×1 Metal Back Plate ×1 LGA2011 Type B Mounting Plate ×1 Screw Nut ×4 Screw Pillars x4 M3 L10 Screw ×4 M3 L6 Screw ×6 Fan Clip Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 Backplate cap ×1 Wrench ×1...
-
Page 6: Installation Instructions
Installation Instructions: Step 1: 1366 1156 1155 Step 1 : Back Plate Installation Choose the platform (775/1155/1156/1366) you are in use. Make four M3L10 Screws go through the Metal Back Plate from bottom towards top. And then place the Metal Back Plate on the table. Put the four Washers (for Intel) around the Screw Cylinders. - Page 7 Connect the two TY-143 fans to the Male PWM end of the PWM Y-Cable. Then connect the female PWM end of the PWM Y-Cable to the mainboard's PWM connector. Last connect the female 4 Pin Molex connector of the PWM Y-Cable to the male PSU 4 Pin Molex Connector. The Ultimate Cooling Solutions! www.thermalright.com...
- Page 8 Silver Arrow SB-E Extreme Intel 2011 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com TY143 Fan Fan Clip Anti Vibration Pads Heatsink Body M3 L6 Screw Wrench Anchoring Mount Mounting Plate LGA2011 Type B Screw Pillars...
- Page 9 M3 L10 Screw ×4 M3 L6 Screw ×6 Fan Clip Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 Backplate cap ×1 Wrench ×1 PWM Y-Cable ×1 Thermal paste ×1 TY 143 Fan ×2 The Ultimate Cooling Solutions! www.thermalright.com...
- Page 10 Installation Instructions: Step 1: Step 1 : Screw Pillar Installation Screw on the four LGA2011 Type B Screw Pillars into the Heatsink studs on the ILM Assembly Frame around the processor socket. Step 2: Step 2 : Anchoring Mount Installation Place the Anchoring Mount onto the four LGA2011 Type B Screw Pillars, secure it by tightening it with 4 M3L6 Screws.
- Page 11 Connect the two TY-143 fans to the Male PWM end of the PWM Y-Cable. Then connect the female PWM end of the PWM Y-Cable to the mainboard's PWM connector. Last connect the female 4 Pin Molex connector of the PWM Y-Cable to the male PSU 4 Pin Molex Connector. The Ultimate Cooling Solutions! www.thermalright.com...
- Page 12 Silver Arrow SB-E Extreme AM2/AM2+/AM3/AM3+/FM1 Exploded View Important! Before proceeding with installation, please check for the most up-to-date instructions at www.themalright.com TY143 Fan Fan Clip Anti Vibration Pads Heatsink Body M3 L6 Screw Wrench Anchoring Mount Mounting Plate Screw Nut...
- Page 13 M3 L10 Screw ×4 M3 L6 Screw ×6 Fan Clip Intel Washer (small) ×4 AMD Washer (big) ×4 Anti Vibration Pad ×8 Backplate cap ×1 Wrench ×1 PWM Y-Cable ×1 Thermal paste ×1 TY 143 Fan ×2 The Ultimate Cooling Solutions! www.thermalright.com...
- Page 14 Installation Instructions: Step 1: Step 1 : Back Plate Installation Choose the platform (AMD) you are in use. Make four M3L10 Screws go through the Metal Back Plate from bottom towards top. And then place the Metal Back Plate on the table. Put the four Washers (for AMD) around the Screw Cylinders.
- Page 15 Connect the two TY-143 fans to the Male PWM end of the PWM Y-Cable. Then connect the female PWM end of the PWM Y-Cable to the mainboard's PWM connector. Last connect the female 4 Pin Molex connector of the PWM Y-Cable to the male PSU 4 Pin Molex Connector. The Ultimate Cooling Solutions! www.thermalright.com...
