Yale 501F Installation Instructions

Yale Cylinder Collar*
599.419 Standard
Others: as ordered
(must use Yale Cylinder Collar)
599.419 CYLINDER COLLAR APPLICATIONS
Cylinder Length (Dim "A")
Up to 1-9/16 (39)
For other cylinder types, refer to 7000 Series Exit
Device catalog for collar information.
All dimensions are in inches (mm).
Yale® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are
protected under U.S. copyright laws. All contents current at time of publication. Yale Security Inc. reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 1995, 2013, Yale Security Inc., an ASSA
An ASSA ABLOY Group brand
Installation Instructions
Cylinder Collar (Must be Yale's)
Cylinder Collar
Yale Cylinder
6-Pin, Fixed Core
599.419 (Std.)
7-Pin, Fixed Core
Product Support Tel 800.438.1951 • www.yalelocks.com
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
501F & 512F Trim
Collar Number Collar Dim. "H"
599.419 19/32 (15)
Cylinder
Mounting Screws
60-7000-1235-048 (Std.)
Attention Installer
Any retrofit or other field modification to a fire rated opening can potentially
impact the fire rating of the opening, and Yale Locks & Hardware makes no
representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire rated
opening, or specifying and installing a new fire-rated opening, please consult
with a code specialist or local code official (Authority Having Jurisdiction) to
ensure compliance with all applicable codes and ratings.
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductive harm. For
more information go to
www.P65warnings.ca.gov.
501F & 512F Trim

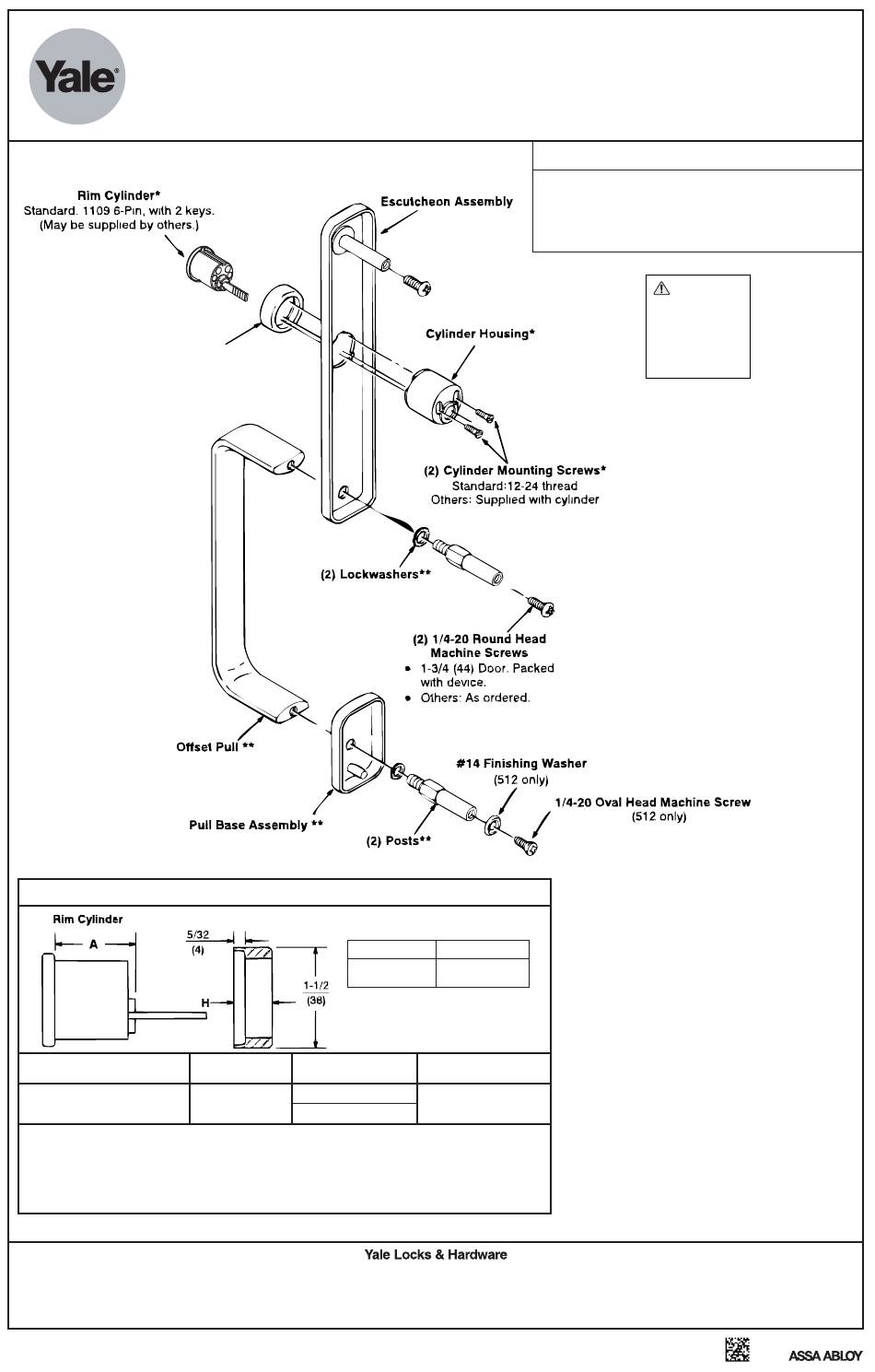

Assembly Instructions
1. Check cylinder components. See Chart. Non-standard
cylinder collars should be identified on product order.
Non-standard cylinder mounting screws are supplied
with cylinders.
2. Assemble cylinder, use components marked (*). Insert
Cylinder Housing prongs into Escutcheon matching
notches. Pass Cylinder tailpiece thru Yale Cylinder
Collar and Cylinder Housing. Bolt Cylinder seated in
Cylinder Collar recess (DO NOT OVERTIGHTEN
SCREWS). Cylinder must now work freely.
3. 512F Trim Only: Assemble pull, offset away from
lockedge of door. Use components marked (**).
08/2018
