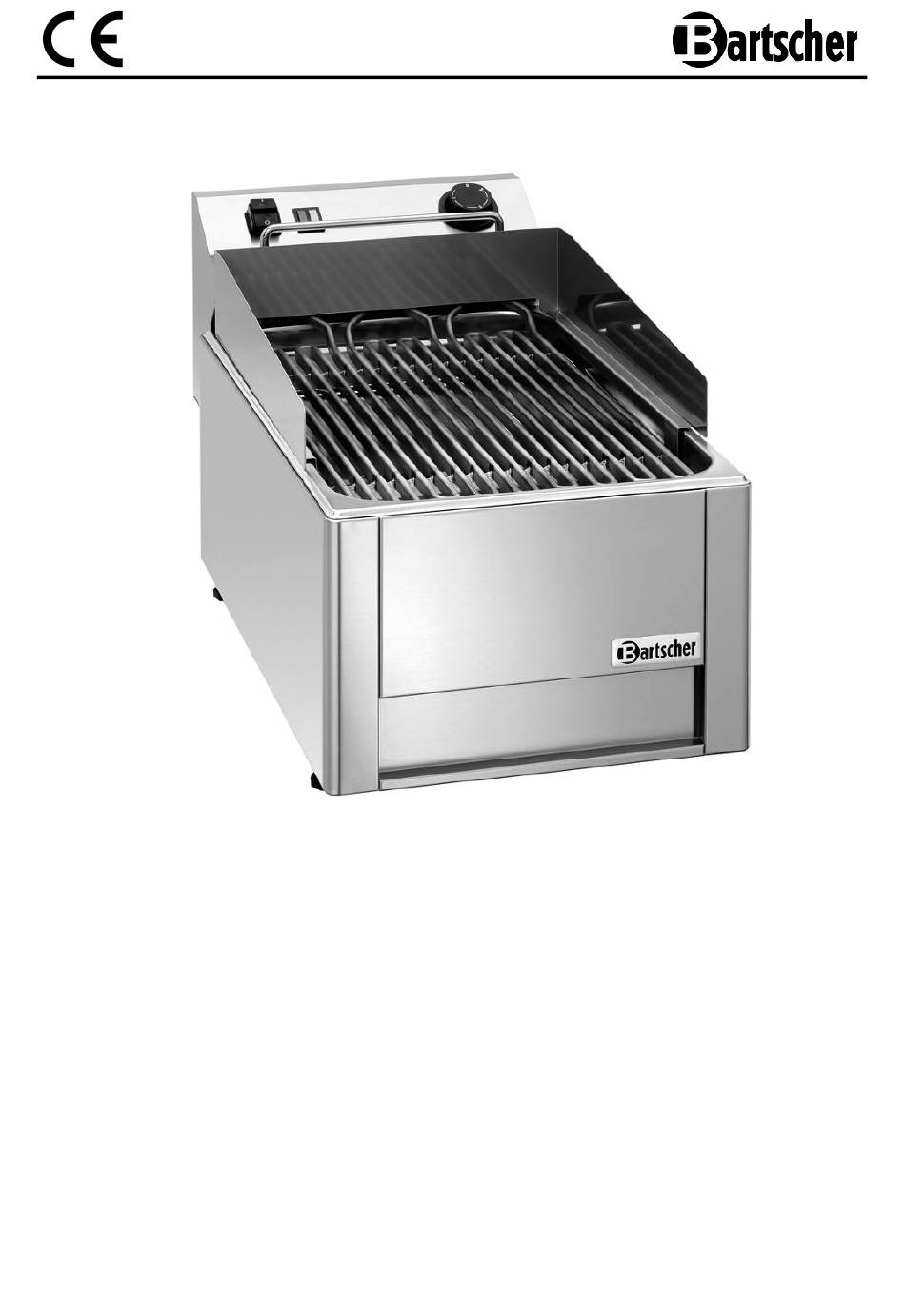

- Page 1 370037 Original-Gebrauchsanleitung V1-1/0116...
-
Page 2: Table Of Contents
4.2 Technical specification ..................24 5. Installation and operation ..................25 5.1 Installation ......................25 5.2 Operation ......................26 6. Cleaning ........................27 7. Waste disposal ......................28 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. - Page 4 • This device may only be operated in technically proper and safe condition. • Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard! • Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device.
- Page 5 • The supply cable must be disconnected from the socket only by pulling the plug. • Never carry or lift the device by the supply cable. • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.
-
Page 6: Key To Symbols
WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard: • In order to avoid risk of fire and damage to the device, never place kitchen utensils, towels, paper and the like on the grill plate during operation. -
Page 7: Proper Use
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.3 Proper use CAUTION! The device has been designed and built for commercial use and should be operated only by qualified personnel in kitchen facilities. -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.1 Overview of parts Control box with control elements Splash guard Dip tray Grill grid / heater Grid support Height adjustable feet (4) Housing Control box handle - 23 -... -
Page 11: Technical Specification
ON/OFF switch Power indicator (green) Heating indicator (orange) Temperature regulator 4.2 Technical specification Name Water grill 40 370037 Code-No.: Material: Chrome nickel steel Design: With dip tray 1/1 GN, for easy cleaning Power: 4,08 kW / 400 V 50 Hz 3 NAC... -
Page 12: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! Any installation, connection and maintenance work related to the device may be performed by the qualified and authorised technician only, according to the valid international, national and local regulations. Positioning • Unpack the device and remove all packing material. CAUTION! Never remove the rating plate and any warning signs from the device. -
Page 13: Operation
5.2 Operation Preparation of the device • Before the first use, clean the device thoroughly. For this purpose, using the handle detach the control box with the grill grid / heater, and then remove the support and splash guard as well as the dip tray. Observe the instructions included in section 6 „Cleaning“. -
Page 14: Cleaning
• You may use any preferred grill utensils for placing and removing grilled food (forks, tongs, etc.), but plastic kitchen utensils must not be used. WARNING! Never place plastic or other containers on the grill grid / heater, as the high temperature may damage the grill grid / heater. •... -
Page 15: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
