Summary of Contents for Bartscher DT 2000 1G

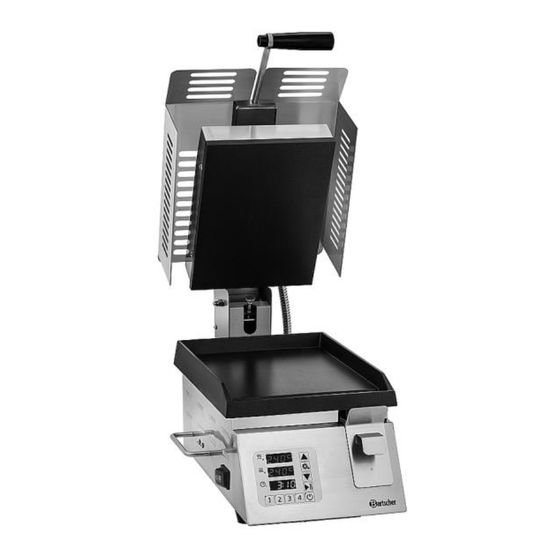

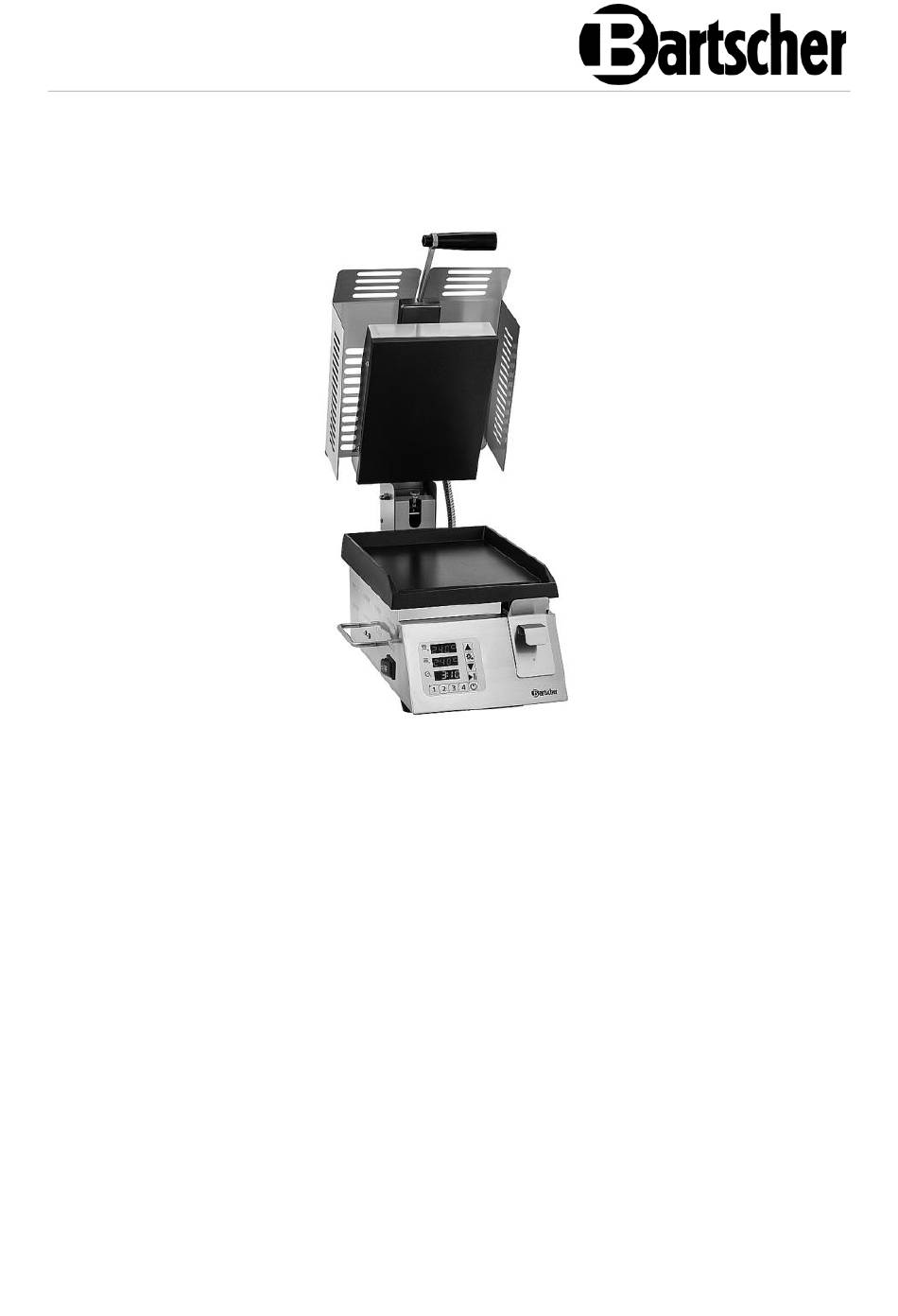

- Page 1 DT 2000 1G 370211...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 2.0 Date of preparation: 2024-06-11...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Grilling of suitable food products. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Contact grill DT 2000 1G 370211 Art. No.: Material: stainless steel Grill plate material: aluminium Number of grill units: Dimensions of top grill plate (W x D), in 205 x 285 Dimensions of bottom grill plate (W x D),... -
Page 12: Functions Of The Appliance
Technical Data Version / Characteristics • Temperature control: – temperature of grill plates adjustable separately – in 10°C increments – thermostatic • Programming: yes • Adjustable top grill plate limit stop • Grease collection tray • Timer • Digital displays •... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Handle 2. Top grill plate 3. Cable guide 4. Bottom grill plate 5. Grease collection tray 6. Housing 7. Control panel 8. Foot (4 pcs) 9. ON/OFF switch with integrated 10. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. - Page 15 Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Leave at least 20 cm clearance from flammable walls and items. Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification.
-
Page 16: Operation
Installation and operation Operation WARNING Risk of scalding! During operation, the grill plates, collection tray and outer surfaces heat up considerably and remain hot for some time still after the appliance is switched off. Do not touch hot surfaces. When operating the appliance and immediately following it, you may touch the handle or control elements only. - Page 17 Installation and operation Control Elements / Indicator Lights Fig. 2 1. Setting value increase key 2. Settings key 3. Setting value decrease key 4. Timer start/stop key 5. ON/OFF key with indicator light 6. Quick program selection keys with indicator lights 7.
- Page 18 Installation and operation If the settings do not correspond to the desired values after switching on, they can be changed as required. The available memory slots for saving settings can be programmed with the desired temperature and time settings. For programming, follow the instructions in the following section.
- Page 19 Installation and operation Food Preparation WARNING! Risk of burning! The grill plates of the appliance become very hot. Use suitable cooking utensils to place food on a hot grill plate and remove it from the grill plate. ATTENTION! Unsuitable cooking utensils may scratch the grill plate. Do not use any hard or sharp utensils to place or remove food.
- Page 20 Installation and operation 13. After grilling, grease and liquids on the bottom grill plate should be moved with a scraper towards the drain opening to allow them to drain into the grease collection tray. WARNING! Risk of burning! The grill plates and the fats/liquids on the grill plate are very hot during grilling and for some time afterwards.
-
Page 21: Cleaning
Cleaning Safety Thermostat The appliance is equipped with the safety thermostat, which activates when the appliance is overheated. The appliance switches off. After the automatic switching-off, the appliance may only be switched on again by switching the RESET switch at the back of the appliance. Proceed the following way: –... - Page 22 Cleaning Wait for the grease collection tray and its content to cool down before you start cleaning. ATTENTION! Make sure that moisture, oil, nor fat do not enter the appliance. 1. Clean the appliance thoroughly at the end of the working day and, if necessary, also between grilling cycles.
-
Page 23: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. -
Page 24: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
