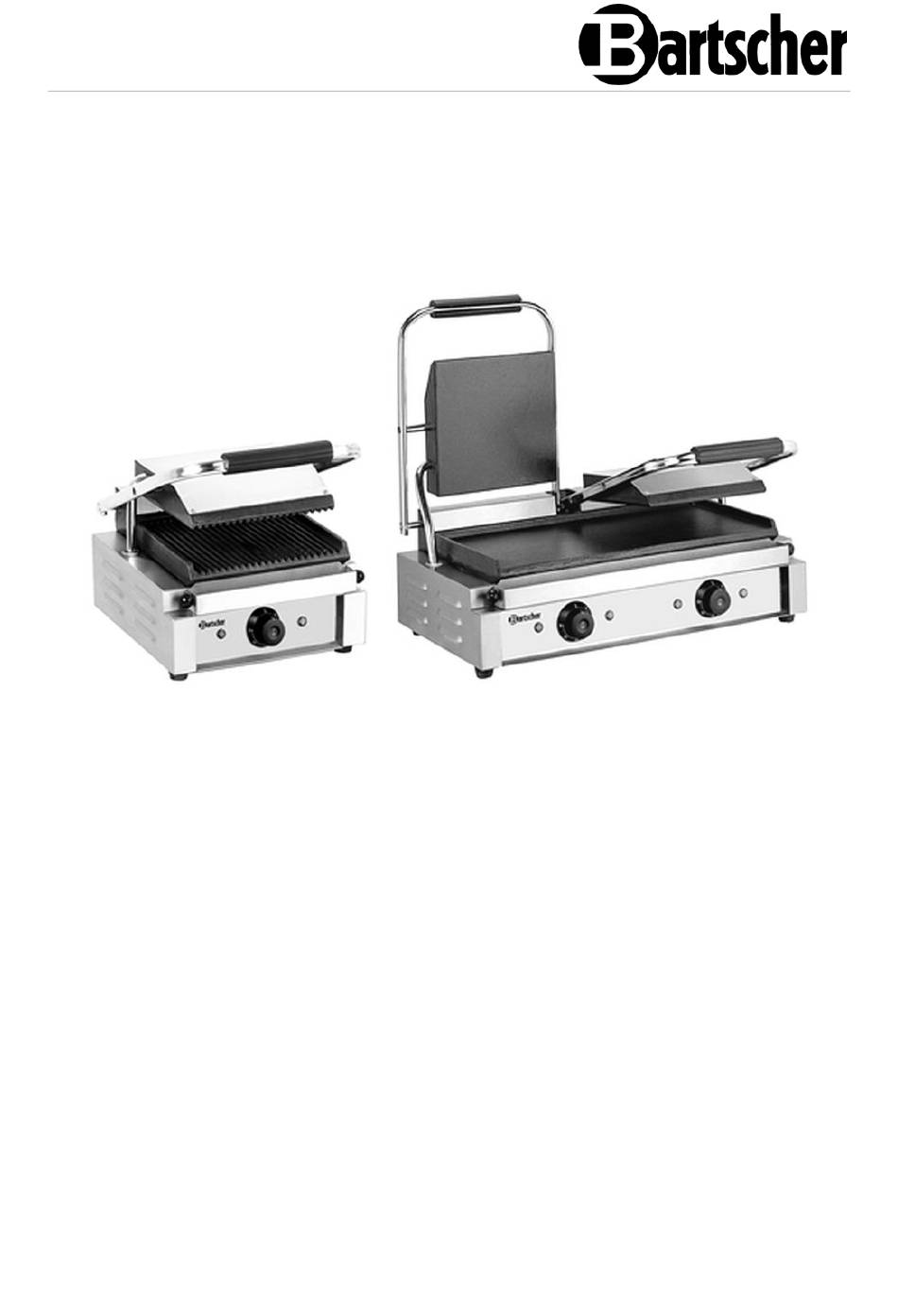

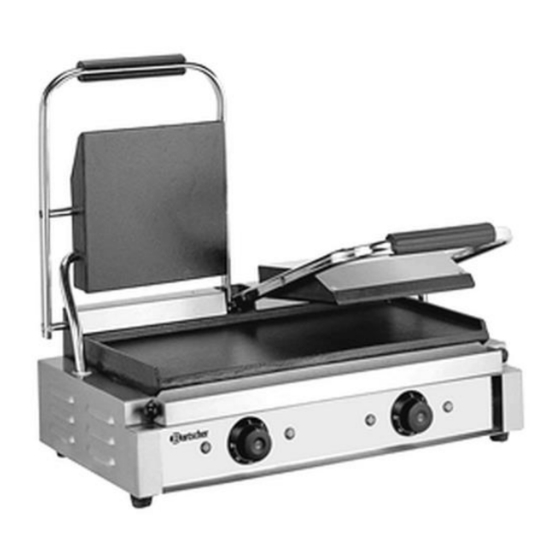

- Page 1 1800 1R - 1800 1G - 1800 1GR - 3600 1R - 3600 1G - 3600 1GR A150670 - A150669 - A150668 A150671 - A150672 - A150673...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 8.0 Date of preparation: 2023-08-31...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Operating personnel • This appliance is not intended to be used by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Grilling of suitable food products. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
• Grease collection tray • The set includes: 1 cleaning brush We reserve the right to implement technical modifications. <Endergebnis> Name: Contact grill 1800 1R A150670 Art. No.: Material: stainless steel Grill plate material: cast iron, enamelled Number of grill units:... - Page 12 Technical Data Name: Contact grill 1800 1G A150669 Art. No.: Material: stainless steel Grill plate material: cast iron, enamelled Number of grill units: Grill surface version: smooth Temperature range, min.–max., in °C: 50 - 300 Connected load: 1,8 kW | 230 V | 50 Hz Dimensions of top grill plate (W x D), in 214 x 214 Dimensions of bottom grill plate (W x D),...
- Page 13 Technical Data Name: Contact grill 3600 2R A150671 Art. No.: Material: stainless steel Grill plate material: cast iron, enamelled Number of grill units: Grill surface version: ribbed Temperature range, min.–max., in °C: 50 - 300 Connected load: 3,6 kW | 230 V | 50/60 Hz Dimensions of top grill plate (W x D), in 215 x 215 Dimensions of bottom grill plate (W x D),...
-
Page 14: Functions Of The Appliance
Technical Data Name: Contact grill 3600 2GR A150673 Art. No.: Material: stainless steel Grill plate material: cast iron, enamelled Number of grill units: Grill surface version: ribbed at top, smooth at the bottom Temperature range, min.–max., in °C: 50 - 300 Connected load: 3,6 kW | 230 V | 50/60 Hz Dimensions of top grill plate (W x D), in... -
Page 15: List Of Components Of The Appliance
Technical Data List of Components of the Appliance A150670 / A150669 / A150668 Fig. 1 1. Handle 2. Top grill plate 3. Bottom grill plate 4. Grease collection tray 5. Housing 6. Feet (4x) 7. Heating up indicator lamp (orange) 8. - Page 16 Technical Data A150671 / A150672 / A150673 Fig. 2 1. Handle top left grill plate 2. Top left grill plate 3. Handle guard top right grill plate 4. Handle top right grill plate 5. Cable connection right heating zone 6. Top right grill plate 7.
-
Page 17: Installation And Operation
Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law. -
Page 18: Operation
Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Leave at least 20 cm clearance from flammable walls and items. Power supply connection •... - Page 19 Installation and operation Before the First Use 1. Before use, clean the appliance, observing instructions in section 6 “Cleaning”. 2. Insert the grease collection tray at the front of the appliance, under the grill plate. 3. Before the first use, heat the open appliance up without grilled products for approx.
- Page 20 Installation and operation Food Preparation 1. Open the appliance using the handle and lift the top grill plate. 2. Depending on the product to be grilled, the grill plates should be greased with a small amount of edible oil to prevent product burning. 3.
-
Page 21: Cleaning
Cleaning Grease collection tray There is a grease collection tray in front of the bottom grill plate, where the dripping vegetable and animal fat is collected. 1. Observe the grease collection tray during operation. 2. The grease collection tray should be removed and emptied regularly, when the appliance, the grease collection tray and its contents have cooled. -
Page 22: Cleaning
Cleaning Cleaning 1. Clean the appliance daily. CAUTION! Make sure that moisture, oil, nor fat do not enter the appliance. 2. Clean the housing, the handle and the outside of the top grill with a damp cloth. In case of stubborn soiling, use a mild cleaning agent. 3. -
Page 23: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution The appliance is connected Damaged temperature Contact the service controller. -
Page 24: Disposal
Disposal Error Possible Cause Solution Green operation indicator Abnormal or interrupted Check the power supply light is off, although the power supply. and the cable for appliance is on. damage or faults. Fuse damaged. Check the power supply and have the fuse replaced if needed.
