Summary of Contents for Bartscher Salamander 500

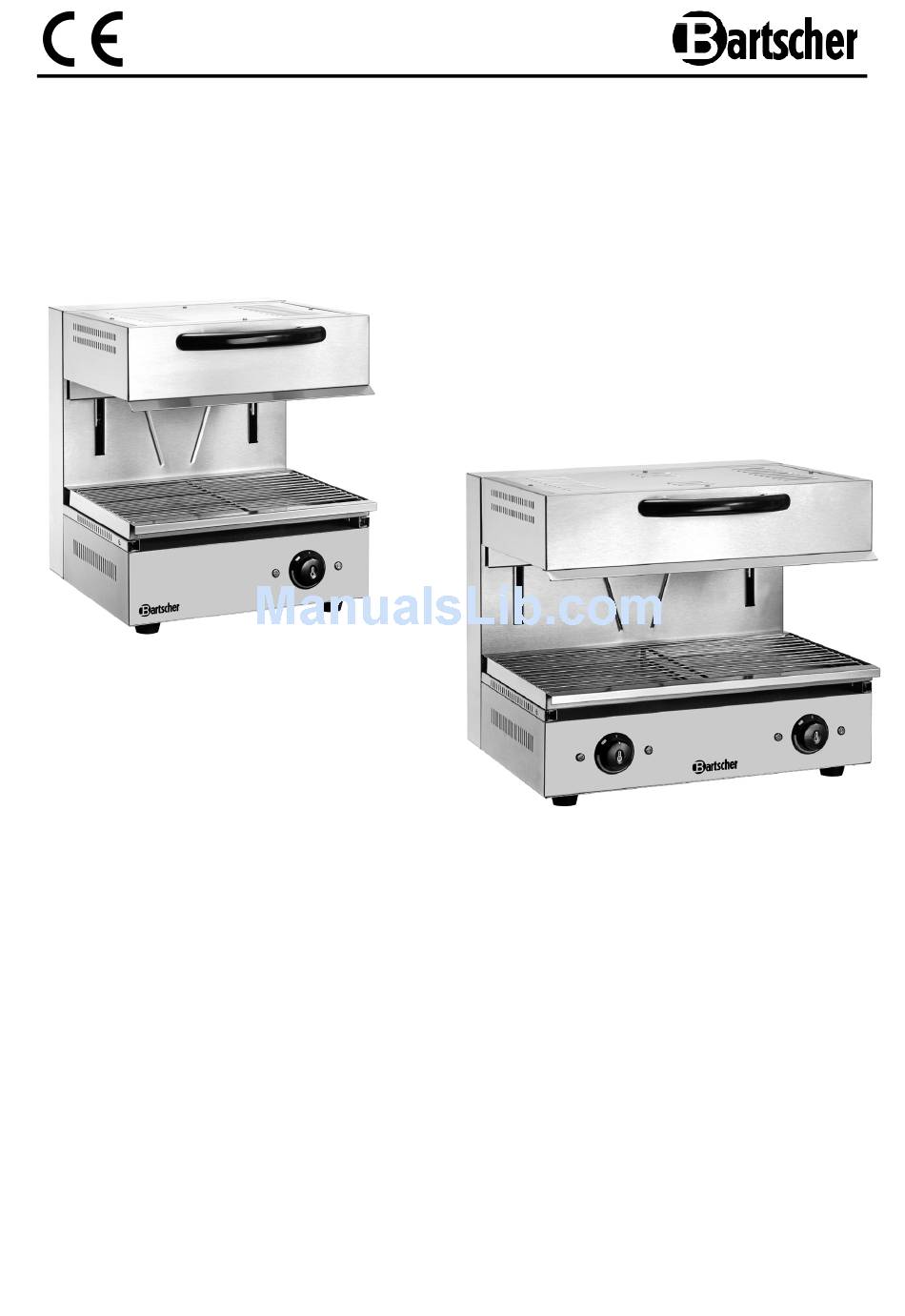

- Page 1 Salamander 500 Salamander 600 151510 151511 V5/0814...
-
Page 2: Table Of Contents
6. Cleaning and maintenance ..................26 6.1 Safety advice ....................... 26 6.2 Cleaning ......................26 6.3 Safety instructions for maintenance ..............26 7. Possible Malfunctions .................... 27 8. Waste disposal ......................28 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: General Information
1. General information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Liability And Warrantees
1.3 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 5: Safety
2.Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 6: Intended Use
CAUTION! o Children should be observed to ensure that they are not playing with the device. o Please keep these instructions and give them to future owners of the device. o All people using the device should follow the instructions and tips contained in these instructions. -
Page 7: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 8: Technical Data
4. Technical data 4.1 Overview of parts 151510 ① Handle ① ⑨ ② ② Height-adjustable upper section ③ Stainless steel grill ④ Heating control light (orange) ③ ⑤ Temperature regulator ⑩ ⑥ Network control light (green) ⑨ ⑦ Feet ⑧ ⑧... -
Page 9: Technical Specification
4.2 Technical specification Name Electric lift salamander 151510 151511 Code-No.: 500 (1 heating area) 600 (2 heating areas) Model: Construction: Stainless steel Temperature range: 0 ° C to 400 ° C Power: 2.8 kW / 230 V 50/60 Hz 4.0 kW / 400 V 50/60 Hz Dimensions: W 470 x D 510 x H 530 mm W 600 x D 540 x H 530 mm... -
Page 10: Installation And Connection
• Do not move or tilt the device when in operation. • Never use the device with wet or moist hands. • Never leave the device unattended when in use. 5.2 Installation and connection ATTENTION! Any installation, maintenance and repair work should be executed only by an authorized installation engineer! Installation •... -
Page 11: Operation
• Do not place flammable acidic or alkaline materials near the device, as they may shorten the device’s life span as well as cause a fire hazard when the device is in use. • Do not place anything on the device. Сonnection WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! - Page 12 Starting the device • Ensure that the temperature regulator is set to the position marked „OFF”. • Prior to first use clean the device (see sec. 6.2 “Cleaning”) • Connect the device to a single grounded socket (this does not apply to the dual model 151511).
-
Page 13: Cleaning And Maintenance
6. Cleaning and maintenance 6.1 Safety advice o Before beginning with repair or cleaning works make sure the device has been disconnected from power supply and has cooled down. o Do not use any acid agents and make sure no water ingresses the device. o To protect yourself from electric shock, never immerse the device, its cables and the plug in water or other liquids. -
Page 14: Possible Malfunctions
7. Possible Malfunctions PROBLEM CAUSE SOLUTION • Device not plugged in • Insert plug into socket • Electricity is • Check electrical The network control disconnected connections light doesn’t come on. • Damaged network • Contact your sales agent control lamp •... -
Page 15: Waste Disposal
NOTE! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:...
