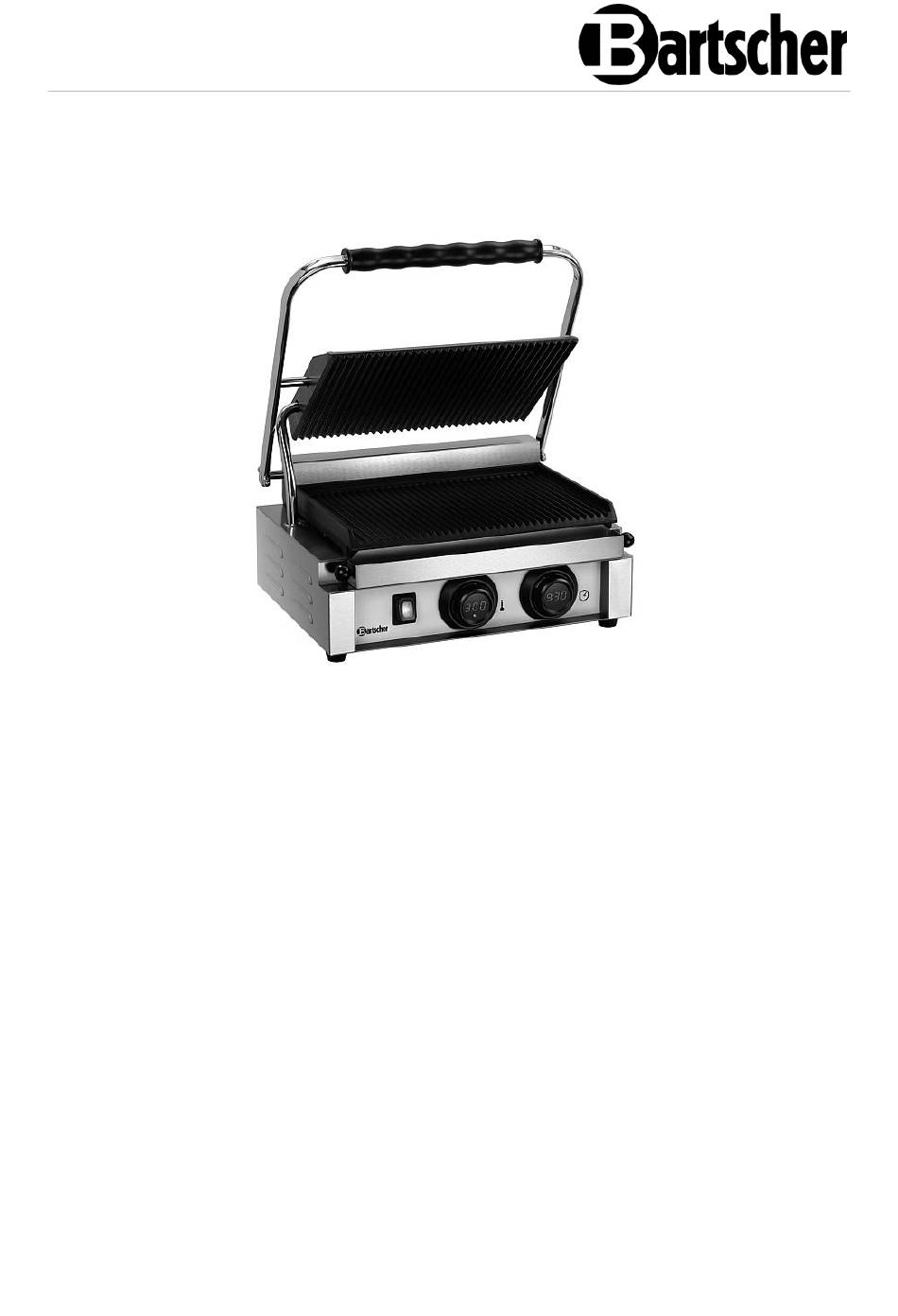

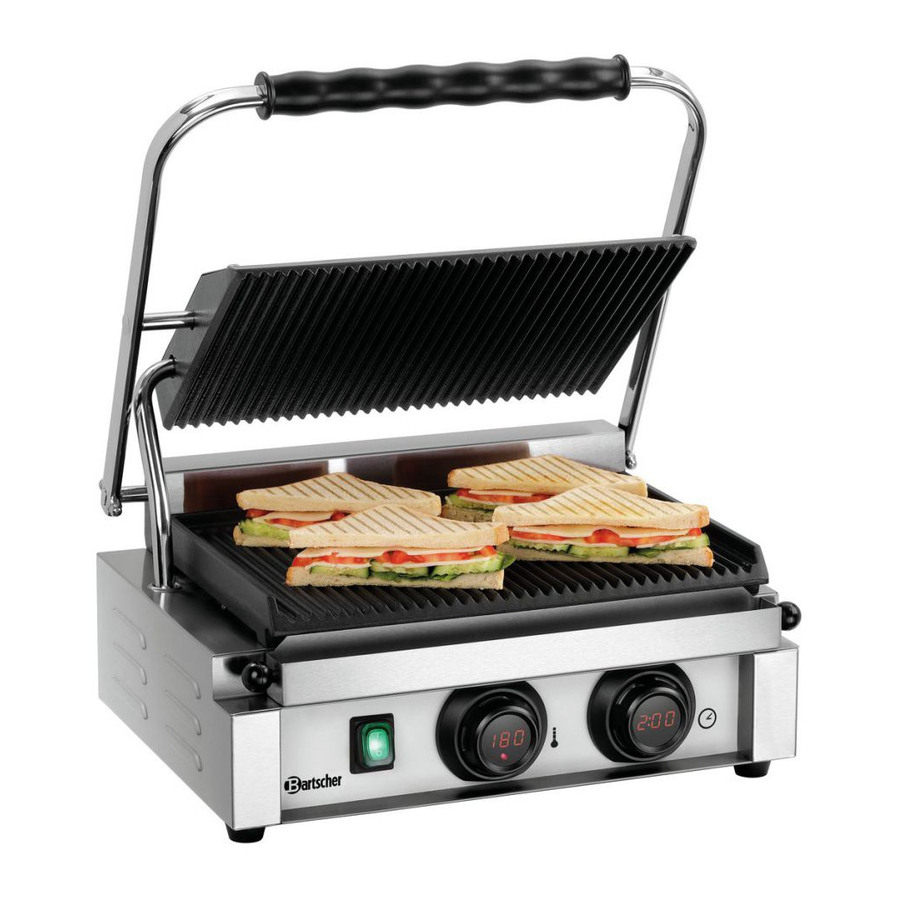

- Page 1 “Panini-MDI“ 1R - 1GR - 1G A150974 - A150976 - A150979...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2019-09-30...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of signal words ..............2 Safety instructions..................3 Intended use .................... 5 Unintended use ..................5 General information ..................6 Liability and warranty ................6 Copyright protection ................. 6 Declaration of conformity ................. 6 Transport, packaging and storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
-
Page 7: Intended Use
Safety • Always remain in an immediate vicinity of the appliance. Improper use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used in a technically flawless condition, providing for safe use. •... -
Page 8: General Information
General information General information Liability and warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 9: Transport, Packaging And Storage
Transport, packaging and storage Transport, packaging and storage Delivery check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 10: Technical Data
Technical data Technical data Technical specifications Name: Contact grill "Panini-MDI" 1R A150974 Item No.: Material: stainless steel Grill plate material: cast iron, enamelled Number of grill units: Grill surface design: ribbed Temperature range in °C: 50 - 300 Degree of protection: IPX3 Power supply: 2,2 kW / 230 V / 50-60 Hz... - Page 11 Technical data Name: Contact grill "Panini-MDI" 1G A150979 Item No.: Material: stainless steel Grill plate material: cast iron, enamelled Number of grill units: Grill surface design: smooth Temperature range in °C: 50 - 300 Degree of protection: IPX3 Power supply: 2,2 kW / 230 V / 50-60 Hz Dimensions of top plate (W x D), in mm: 340 x 220...
-
Page 12: List Of Components Of The Appliance
Technical data List of components of the appliance 1. Handle 2. Top grill plate 3. Bottom grill plate 4. Ventilation openings 5. Feet (4x) 6. Push rotary time control knob 7. Push rotary temperature control 8. ON/OFF switch with integrated power knob indicator light (green) 9. -
Page 13: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 14: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 15 Installation and operation • Setzen Sie den Schaltkasten mit H eiz element vorsichtig auf den hi nteren R and des Ger ätes. Sworz eń w dolnej cz ęści s krz ynki roz dzi elczej musi wchodzić w otwór w urz ądzeniu głównym. W taki spos ób s krz ynka rozdzi elcz a jest prawi dłowo ustawi ona. Control panel The contact grill is operated with 3 control elements: –...
- Page 16 Installation and operation The appliance does not switch into the Standby mode, but it keeps heating. The previously set time is displayed again on the digital display and another product may be prepared with the use of the same setting. The appliance may also be used without the timer if the push rotary time control knob is not activated via pushing it.
- Page 17 Installation and operation 8. If the appliance is not longer used, ON/OFF switch should be set to the “O“ position. 9. Disconnect the appliance from the socket (pull the plug out). Grease collection tray 1. Observe the grease collection tray during operation. 2.
-
Page 18: Cleaning
Cleaning Cleaning Safety Instructions for cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 19: Possible Malfunctions
Possible Malfunctions 11. After cleaning, dry and polish the surface with a soft cloth. Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution... -
Page 20: Disposal
Disposal Error Possible Cause Solution The appliance is Temperature is not set. Set the temperature. connected to the power Damaged heaters in Contact the service company. supply, switched on, but the grill plates. the grill plates are not heating up. The appliance is The safety thermostat Disconnect the appliance from...
