Summary of Contents for Bartscher TB1000PF

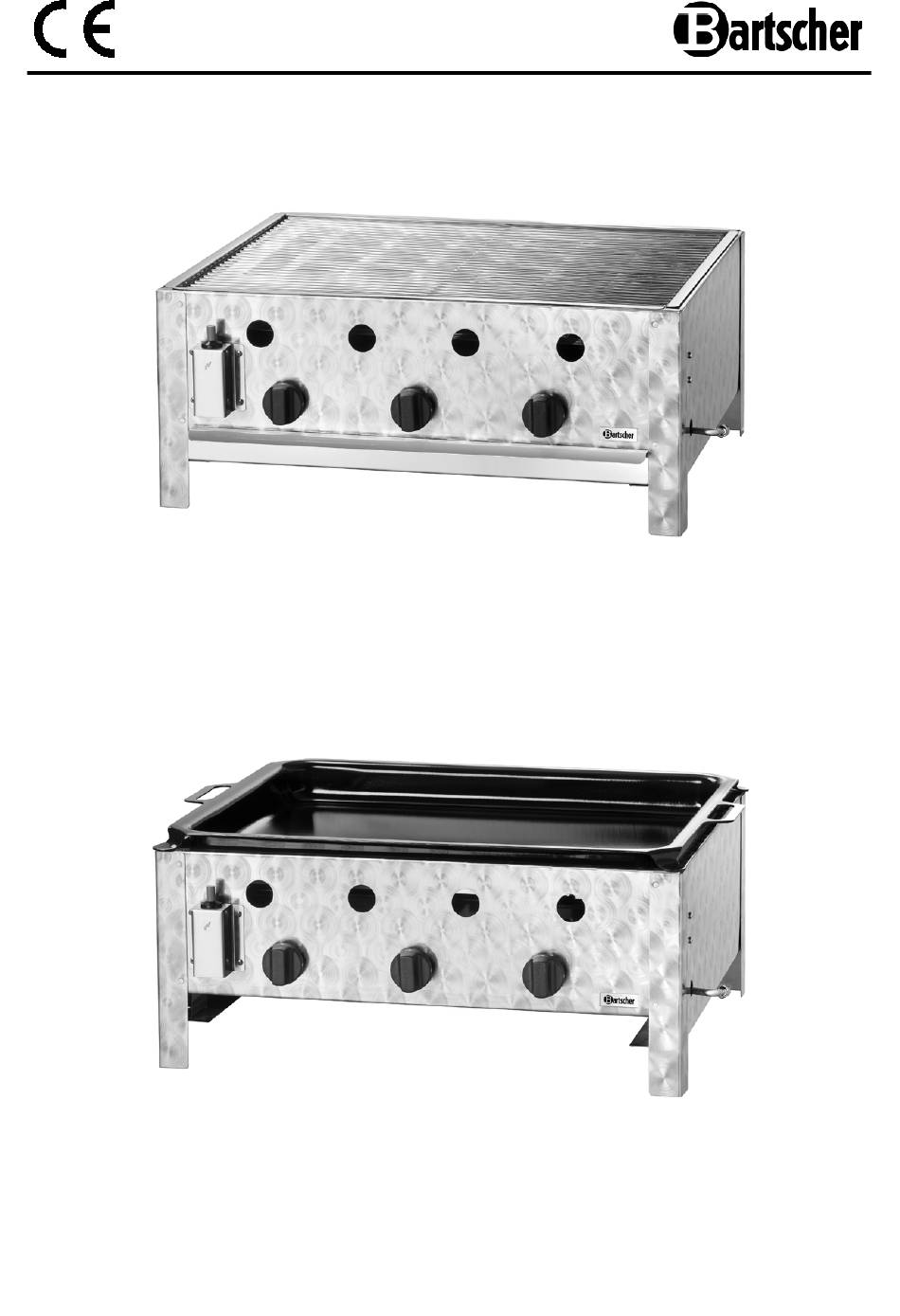

  • Page 1 0063CL7046 TB1000R 1061633 TB1000PF 1061933 Original-Gebrauchsanleitung V1-1/1017...
  • Page 2: Table Of Contents

    5.4.2 User instructions ..................33 5.4.3 Ignition of burners ..................33 5.4.5 Turning the device off ................35 6. Cleaning and maintenance ..................35 7. Possible deffects ..................... 36 Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
  • Page 3: Safety

    Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device.
  • Page 4: Safety Instructions

    HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns! CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.
  • Page 5 The device must be operated in correct and safe technical • condition only. CAUTION! In case of any anomalies during the operation set all gas knobs in “0” position and close the gas cylinder valve! Contact the service company. Do not use any device which is has leaks, is damaged, or •...
  • Page 6 Do not put any objects into the device. • The gas table-top grill should be cleaned after each use from • food residuals and grease. Close the gas cylinder valve before cleaning and repairs. • HOT SURFACE! Risk of burns! Follow the safety instructions below to avoid the hazard.
  • Page 7: Proper Use

    Never use the device near the flammable materials (such as • alcohol, spirits, petrol, etc). High temperature may cause their evaporation and due to contact with the ignition sources the explosion may occur, and it may result in personal injuries and material damage.
  • Page 8: General Information

    2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors.
  • Page 9: Transport, Packaging And Storage

    3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.
  • Page 10: Technical Data

    4. Technical data 4.1 Technical specification TB1000R / 1061633 Fig. 1 Name Gas table-top grill TB1000R 1061633 Code-No.: device: stainless steel; grid: galvanised steel; dripping Material: tray: stainless steel Gas type: liquid gas The device must be supplied with the liquid gas only! Number of burners: 3 Version:...
  • Page 11 TB1000PF / 1061933 Fig. 2 Name Gas table-top grill TB1000PF 1061933 Code-No.: device: stainless steel, Material: grill frying pan: enamelled steel Gas type: liquid gas The device must be supplied with the liquid gas only! Number of burners: 3 Version: Ignition type: Piezo ignition Connection 1/4“...
  • Page 12: List Of Device Elements

    4.2 List of device elements Fig. 3 Grill frying pan (1061633) Thermal element Piezo igniter Feet Frame U-shapes gas burner (3) Gas knob Flame cover (1061933) Grill grid (1061933) Dripping tray (1061933) - 29 -...
  • Page 13: Installation And Operation

    5. Installation and operation 5.1 Installation instructions CAUTION! All installation, connection, and maintenance works must be realized by the qualified or authorized personnel only, fulfilling the following requirements: authorization from our company; authorization from the local gas supplier. Moreover the following regulations must be followed: DVGW TRGI (technical regulations for the gas installations);...
  • Page 14: Positioning

    5.2 Positioning Unpack the device and accessories and remove all packaging material according to • the regulations valid in the country of installation. Check the delivery for completeness with use of table insection 4.1 “Technical • parameters”. Fix the supplied feet to the device frame using supplied screws. •...
  • Page 15: Operation

    Store the gas cylinders in the vertical position even when empty. • The device is designed for outdoor use only. • ① Gas cylinder valve ② Pressure controller ⑤ ③ Gas hose ④ Gas cylinder ⑤ Hose breaking protection Fig. 4 ②...
  • Page 16: User Instructions

    In case of leaks check connections, retighten them, and repeat the tightness test as • described above. Clean the device and its equipment before use. Follow the instructions in section 6 • “Cleaning and maintenance”. User instructions The grill frying pan (1061933) should be heated slowly before use, absolutely not •...
  • Page 17 Use the same procedure for the third burner. • NOTE! Always start the burner adjacent to already ignited in order to transfer the flame. After the burner ignition set the gas knob in required position. Select small or big • flame (paying attention to symbols on the knob).
  • Page 18: Turning The Device Off

    Turning the device off In order to turn the device off after work rotate all gas knobs clockwise. • CAUTION! In case of longer standstills, failures, or irregular use the gas cylinder valve must be closed. 6. Cleaning and maintenance WARNING! Never clean the device with flammable or explosive liquids.
  • Page 19: Possible Deffects

    (read from the rating plate on the back wall of the device). Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
