RV AND VAN TV ANTENNA
SPECIFICATIONS
Bandpass
VHF/FM ............................. 54 to 216 MHz
UHF ................................... 470 to 810 MHz
Amplifier Gain ......................
VHF* .................................. 15.5 dB avg.
UHF ................................... 19.5 dB avg.
Impedance ........................... 75 ohm unbalanced
Response ............................. 25 dB per 6 MHz
VSWR ................................... 1.8:1 max.
Power Required ................... 12 VDC at 85 ma
Weatherproof Housing ........ Weatherable
*Has fixed FM trap to reduce interference.
DESCRIPTION
Winegard's RoadStar
TM
vides excellent reception of VHF/UHF TV channels.
The RoadStar compact modern styling is unobtrusive
and blends well with the designs of recreational vehi-
cles. The UV stabilized copolymer housing makes the
antenna virtually impervious to weathering and color
change.
The unique omnidirectional characteristics of model
RS-1000 provide excellent reception in areas where
stations are in different directions without the need for a
complex rotor system. A built-in amplifier provides up to
6 times the received signal on VHF and 9 times the UHF
signal insuring the best possible reception in color and
black and white.
The RS-1000 package includes antenna, 12 VDC pow-
er supply with two-way splitter, 30' downlead cable, 6'
TV set cord, hardware and mounting bracket.
WINEGARD
ROADSTAR
MODELS RS-1000
INSTRUCTIONS
UV stabilized
copolymer
omnidirectional antenna pro-
Winegard Company
3000 Kirkwood St., Burlington, IA 52601-2000
Printed in U.S.A. 2451809
Made in U.S.A.
PARTS LIST
1
Amplified Antenna
6
10-32 Hex Nut, Nylock
1
Power Supply with Hardware
1
30' Coaxial Cable
1
6' Coaxial Cable
3
Roof Mounting Brackets
6
#10 x 1" Thread Cutting Screws
1
Bolt, 1-1/4 x 1" Nylon
1
Mounting Plate
6
10-32 x 5/8" Bolt
6
Washer, #10 Aluminum
CLEANING ANTENNA HOUSING
The surface of the antenna is a tough laminated
ultraviolet shield. Clean only with mild soap and
water. Use no solvents, alcohol, or cleaning
fluids.
© Winegard Company, 1998 Rev. 12/98
®
TM

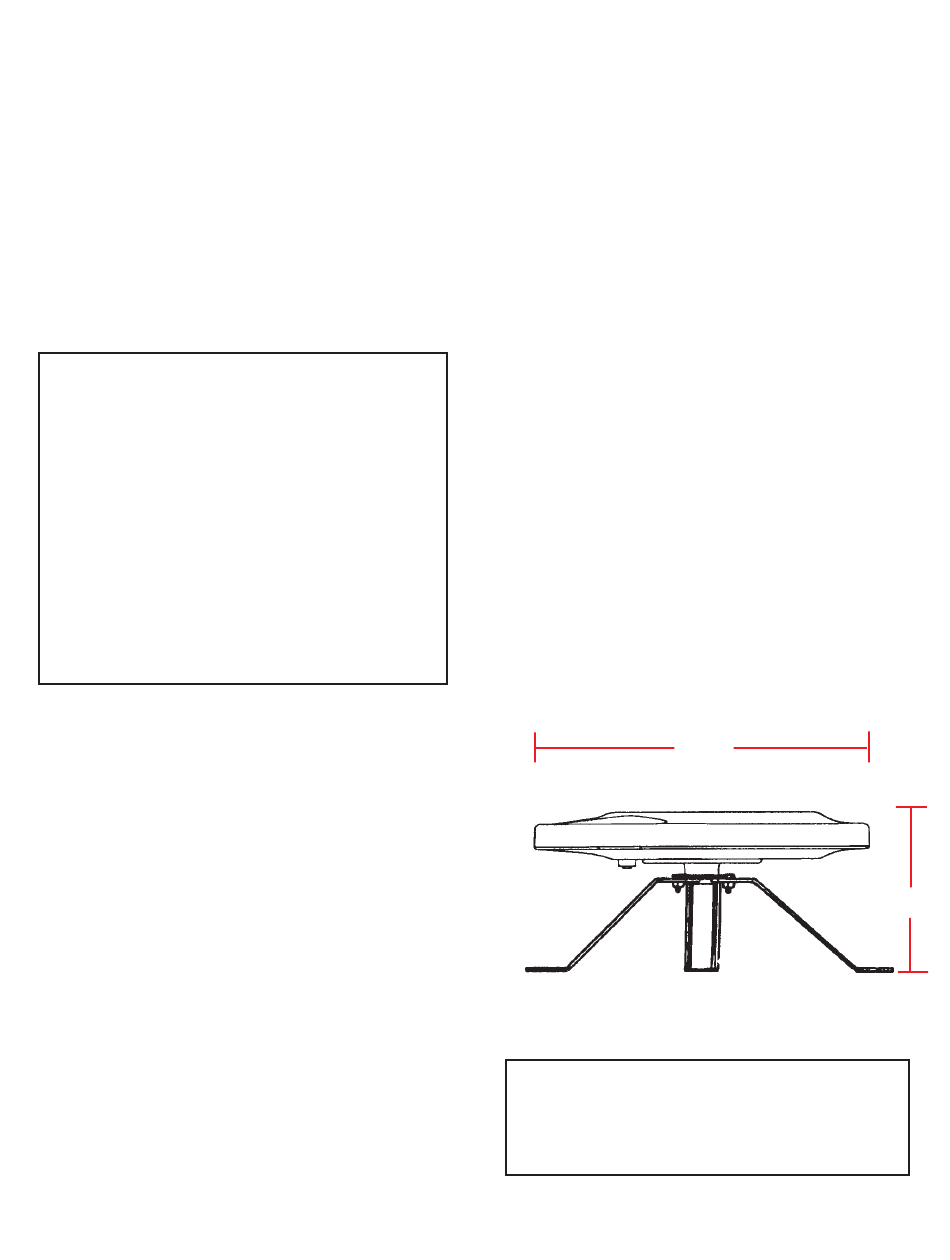

14-1/2"
2160216
2120143
2753015
2753752
3720303
2160178
3200350
3710248
2160173
1140302
11-7/16"
