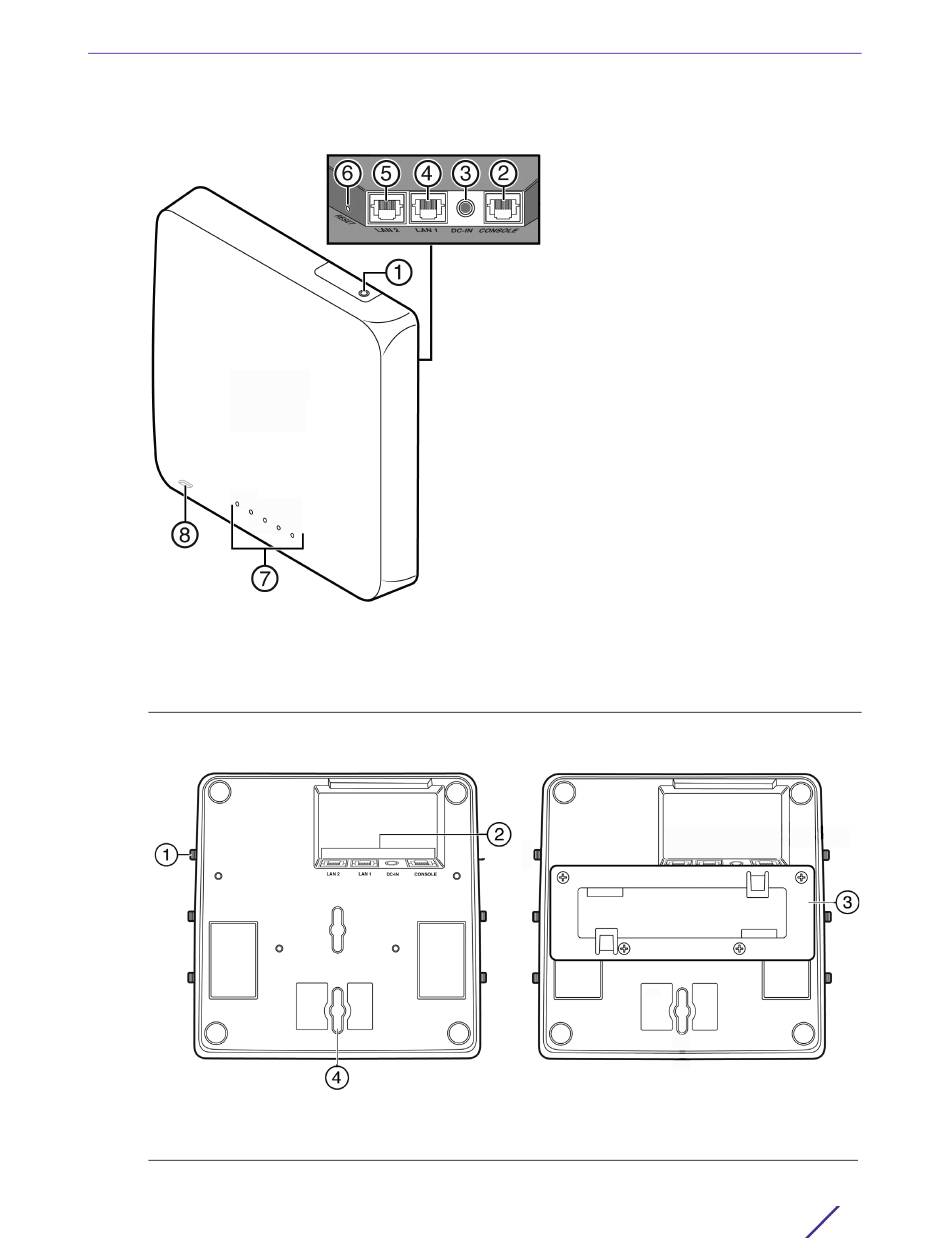

Extreme Networks Wireless AP3825e Front View
Figure 2
1 (not used)
2
Console port
3
External power supply port
4
LAN port 1
5
LAN port 2
Figure 3 WS-AP3825 Back View
1 RSMA antenna connectors (WS-AP3825e only)
2
Port Bay
3
Mount Bracket
Extreme Networks Wireless AP3825 Installation Guide
6
Reset switch
7
Figure 4
LEDs (See for details)
8
(bottom) Slot for Kensington lock
9
RSMA External antenna connectors (6)
10
4
Mounting Slot
