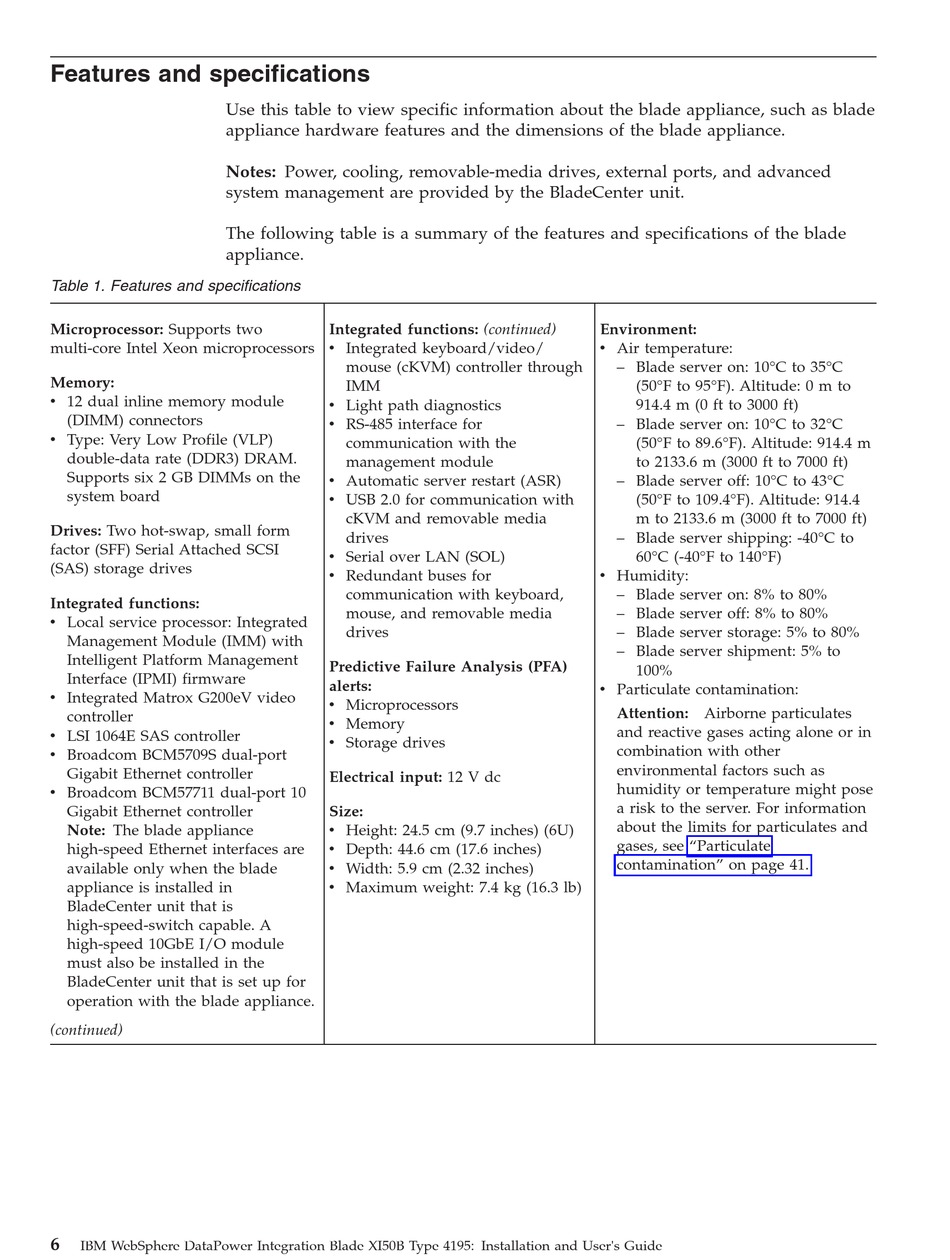

Features and specifications

Use this table to view specific information about the blade appliance, such as blade
appliance hardware features and the dimensions of the blade appliance.
Notes: Power, cooling, removable-media drives, external ports, and advanced
system management are provided by the BladeCenter unit.
The following table is a summary of the features and specifications of the blade
appliance.
Table 1. Features and specifications
Microprocessor: Supports two
multi-core Intel Xeon microprocessors
Memory:
v 12 dual inline memory module
(DIMM) connectors
v Type: Very Low Profile (VLP)
double-data rate (DDR3) DRAM.
Supports six 2 GB DIMMs on the
system board
Drives: Two hot-swap, small form
factor (SFF) Serial Attached SCSI
(SAS) storage drives
Integrated functions:
v Local service processor: Integrated
Management Module (IMM) with
Intelligent Platform Management
Interface (IPMI) firmware
v Integrated Matrox G200eV video
controller
v LSI 1064E SAS controller
v Broadcom BCM5709S dual-port
Gigabit Ethernet controller
v Broadcom BCM57711 dual-port 10
Gigabit Ethernet controller
Note: The blade appliance
high-speed Ethernet interfaces are
available only when the blade
appliance is installed in
BladeCenter unit that is
high-speed-switch capable. A
high-speed 10GbE I/O module
must also be installed in the
BladeCenter unit that is set up for
operation with the blade appliance.
(continued)
6
IBM WebSphere DataPower Integration Blade XI50B Type 4195: Installation and User's Guide
Integrated functions: (continued)
v Integrated keyboard/video/
mouse (cKVM) controller through
IMM
v Light path diagnostics
v RS-485 interface for
communication with the
management module
v Automatic server restart (ASR)
v USB 2.0 for communication with
cKVM and removable media
drives
v Serial over LAN (SOL)
v Redundant buses for
communication with keyboard,
mouse, and removable media
drives
Predictive Failure Analysis (PFA)
alerts:
v Microprocessors
v Memory
v Storage drives
Electrical input: 12 V dc
Size:
v Height: 24.5 cm (9.7 inches) (6U)
v Depth: 44.6 cm (17.6 inches)
v Width: 5.9 cm (2.32 inches)
v Maximum weight: 7.4 kg (16.3 lb)
Environment:
v Air temperature:
– Blade server on: 10°C to 35°C
(50°F to 95°F). Altitude: 0 m to
914.4 m (0 ft to 3000 ft)
– Blade server on: 10°C to 32°C
(50°F to 89.6°F). Altitude: 914.4 m
to 2133.6 m (3000 ft to 7000 ft)
– Blade server off: 10°C to 43°C
(50°F to 109.4°F). Altitude: 914.4
m to 2133.6 m (3000 ft to 7000 ft)
– Blade server shipping: -40°C to
60°C (-40°F to 140°F)
v Humidity:
– Blade server on: 8% to 80%
– Blade server off: 8% to 80%
– Blade server storage: 5% to 80%
– Blade server shipment: 5% to
100%
v Particulate contamination:
Attention: Airborne particulates
and reactive gases acting alone or in
combination with other
environmental factors such as
humidity or temperature might pose
a risk to the server. For information
about the limits for particulates and
gases, see "Particulate
contamination" on page 41.
