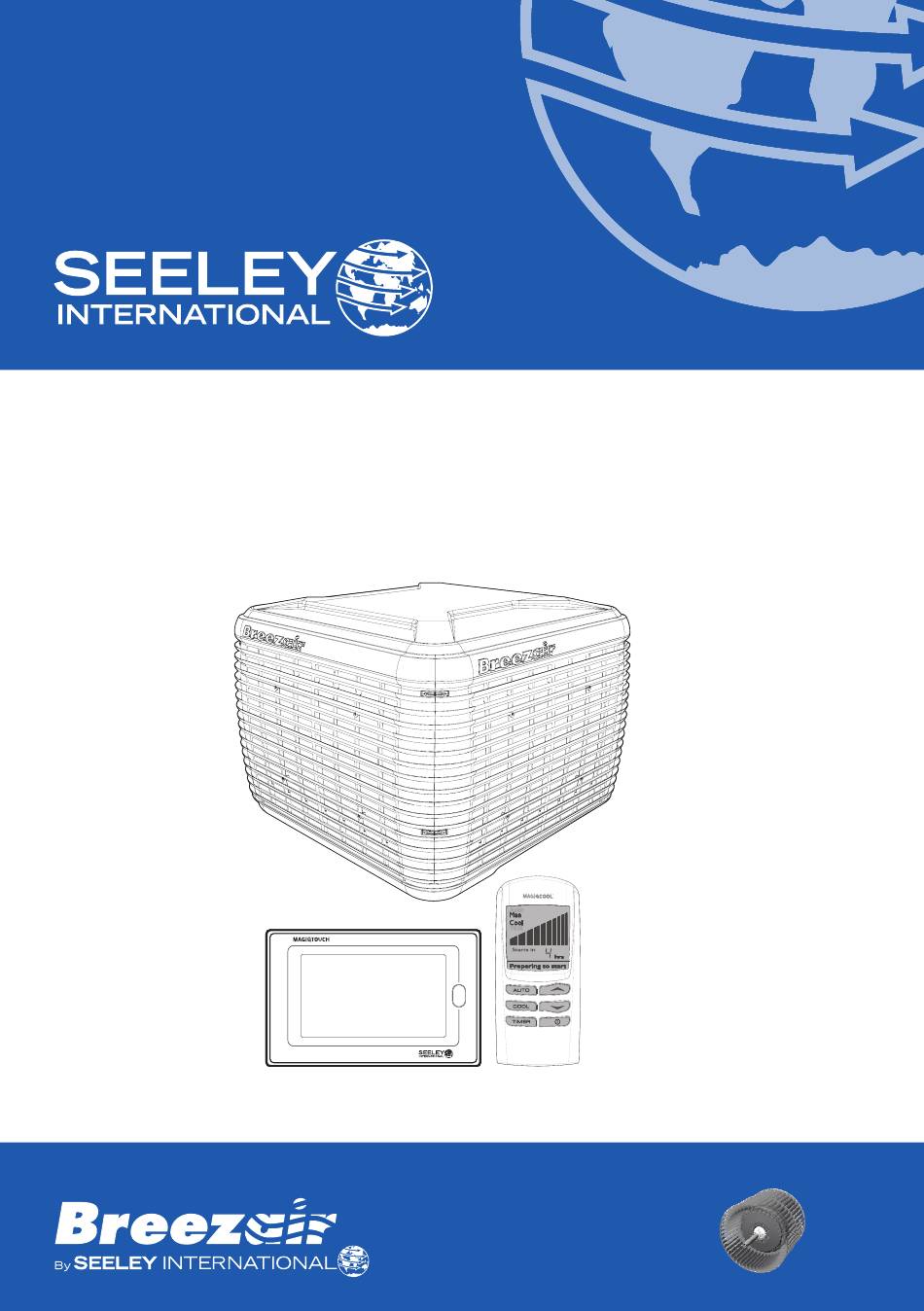

- Page 1 OWNER’S MANUAL EXQ / EXS / EXVQ Evaporative Coolers ILL1672-A (English) Original English Instructions S E R I E S...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE If the supply cord is damaged, INSTRUCTIONS FOR it must be replaced by the manufacturer, its service agent FUTURE REFERENCE. or similarly qualified persons in FOR EUROPE order to avoid a hazard. This appliance can be used New hose sets supplied with by children aged from 8 years the appliance are to be used...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS This cooler is fitted with a Further, it is also a condition of warranty cover that each item in MagIQtouch or MagIQcool the Maintenance Schedule in the Controller. Please refer to the Owner’s Manual is performed separate manual provided with with the frequency indicated, the MagIQtouch Controller for by a qualified, licensed techni-...
-
Page 4: Table Of Contents
TABLE OF CONTENTS OPERATING YOUR COOLER MAGIQTOUCH CONTROLLER OPERATION About Appliance Min/Max Set Temperature Night Quiet Mode Manual Drain Pad Flush Drain and Dry Autoclean External Sensor MAGIQCOOL CONTROLLER SETTINGS Manual mode Auto mode MAGIQCOOL CONTROLLER OPERATION Turning the Cooler On Preparing to Start Manual Mode Auto Mode... -
Page 5: Operating Your Cooler
Hello and congratulations on purchasing a Seeley evaporative cooler Your MagIQtouch Controller contains a settings menu, which gives you access to information At Seeley International we manufacture about your evaporative cooler and to extra Breezair evaporative coolers from the highest ®... -
Page 6: Magiqcool Controller Settings
MAGIQCOOL CONTROLLER SETTINGS MAGIQCOOL CONTROLLER MagIQcool Wall Controllers can operate in manual or automatic mode. OPERATION Manual mode Manual mode will allow you to change settings for operating the cooler, such as altering fan speeds, pump control and manual drain control. -
Page 7: Auto Mode
MAGIQCOOL CONTROLLER OPERATION Delayed Start or Stop You may then press the button to switch between COOL and VENT (where fresh The cooler can be programmed to start at a air is being delivered but not cooled). specific time or stop at a specific time. The delayed start time can only be programmed when the cooler is OFF. -
Page 8: Programming In Auto Mode
MAGIQCOOL CONTROLLER OPERATION Programming In Auto Mode Service Mode (1)..Press the button. When a fault has been recognised by the wall control the word “Service” flashes on the (2)..Press the button until AUTO is screen. displayed. (3)..Press the button and the "Starts in"... -
Page 9: Drain Mode (Cooler Switched Off)
MAGIQCOOL CONTROLLER OPERATION WATER MANAGEMENT If ‘02’ is displayed (1)..Check that the water supply tap to the Your evaporative cooler will be fitted with either cooler is turned on. a WaterMiser system, or a continuous bleed ® (2)..Check that your local water authority system. -
Page 10: Drain Valve
WaterMiser ® or checks be carried out by an authorised salinity probes. When the tank’s water salinity Seeley International dealer or service agent. level reaches a preset level the WaterMiser will ® Climbing onto the roof can be hazardous open the drain valve and release saline water. -
Page 11: Access For Servicing And Maintenance
ACCESS FOR SERVICING AND MAINTENANCE SEASONAL MAINTENANCE The cooler should be installed in a position that allows adequate access for installation, and Seasonal Maintenance is only required if you future maintenance and servicing activities. have a cooler fitted with a bleed system. If your This should comply with installation guidelines cooler is fitted with a drain valve, no Seasonal and any local, State and National regulations. -
Page 12: Pad Frame Positions
REMOVING PAD FRAMES PAD FRAME POSITIONS To remove a pad frame: 1. Remove the clips holding the pad frame When re-fitting pads, ensure that they are in place. fitted in their original positions. EXQ210 2. Insert a flat head screw driver into the and all EXS model coolers have pads that slot between the lid and the top of the vary from the standard 90mm thickness. -
Page 13: Maintenance Schedule
MAINTENANCE SCHEDULE We require that the following components and the operation thereof, be checked/serviced after the first year, then every 2 years for residential purposes, or every year for commercial purposes, as Maintenance Schedule servicing. Service Item Check/Adjust Clean Replace Water Distribution System Chillcel Pads (replace as required) Pad Retaining Washers/Pins... -
Page 14: Troubleshooting
If your controller prompts you to call a service agent, please contact your local Seeley International authorised dealer or the service number on the back of this manual. Important! In an emergency we recommend that you immediately cease operating the appliance,... - Page 16 6 WITTON ROAD, FOUNDERSVIEW SOUTH, MODDERFONTEIN 1609, GAUTENG, SOUTH AFRICA It is the policy of Seeley International to introduce continual product improvement. Accordingly, specifications are subject to change without notice. Please consult with your dealer to confirm the specifications of the model selected.
