3.2 Module operation

IT8700 modules have 2 kinds input: one is single input module and the other is
dual-input module. There are 6 keys and a knob on the front panel for each
module. Below are the detail introduction of module panel keys and functions.

3.2.1 Single channel module panel

Module's panel view ： high-brightness VFD display show module 's
1.
working mode.
Module's panel keyboard:
2.
Button
Switch A/B transient preset value
A/B A/B
Realize short testing, allows the load to simulate a short-circuit at the input
Short Short
Switch the work mode
Mode Mode
Move the cursor position. Press
to edit, and then use the rotary knob to adjust value.
Tran Tran
Select the transient mode, press
running A/B transient operation, and then send the triggering signal to run program.
Control module's input state: on/off
On/Off On/Off
Rotary knob, used to change the setting parameter values
Module's air inlet
3.

3.2.2 Dual channel module panel

Dual channel module means a module have two channels. Each channel is
isolated with the other. Setting of the module keyboard can control two
channels. The left cannel is channel L, the right channel is channel R.
IT8711 Electronic load IT8711 Electronic load
0-80V/40A/200W 0-80V/40A/200W
A/B A/B A/B
Tran Tran Tran
Short Short Short
Mode Mode Mode
On/Off On/Off On/Off

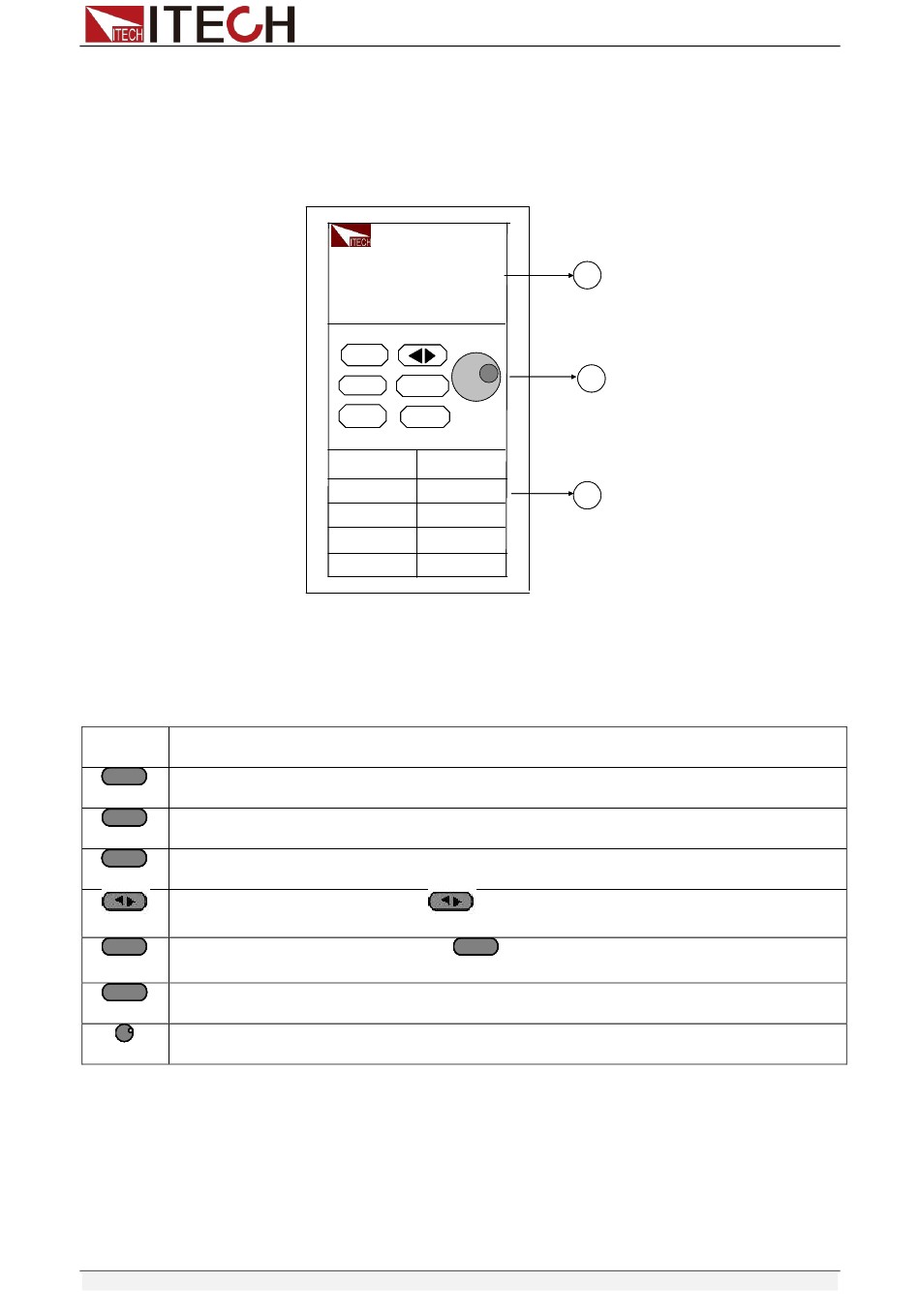

Fig 3-2 single channel module panel
